Electrical System

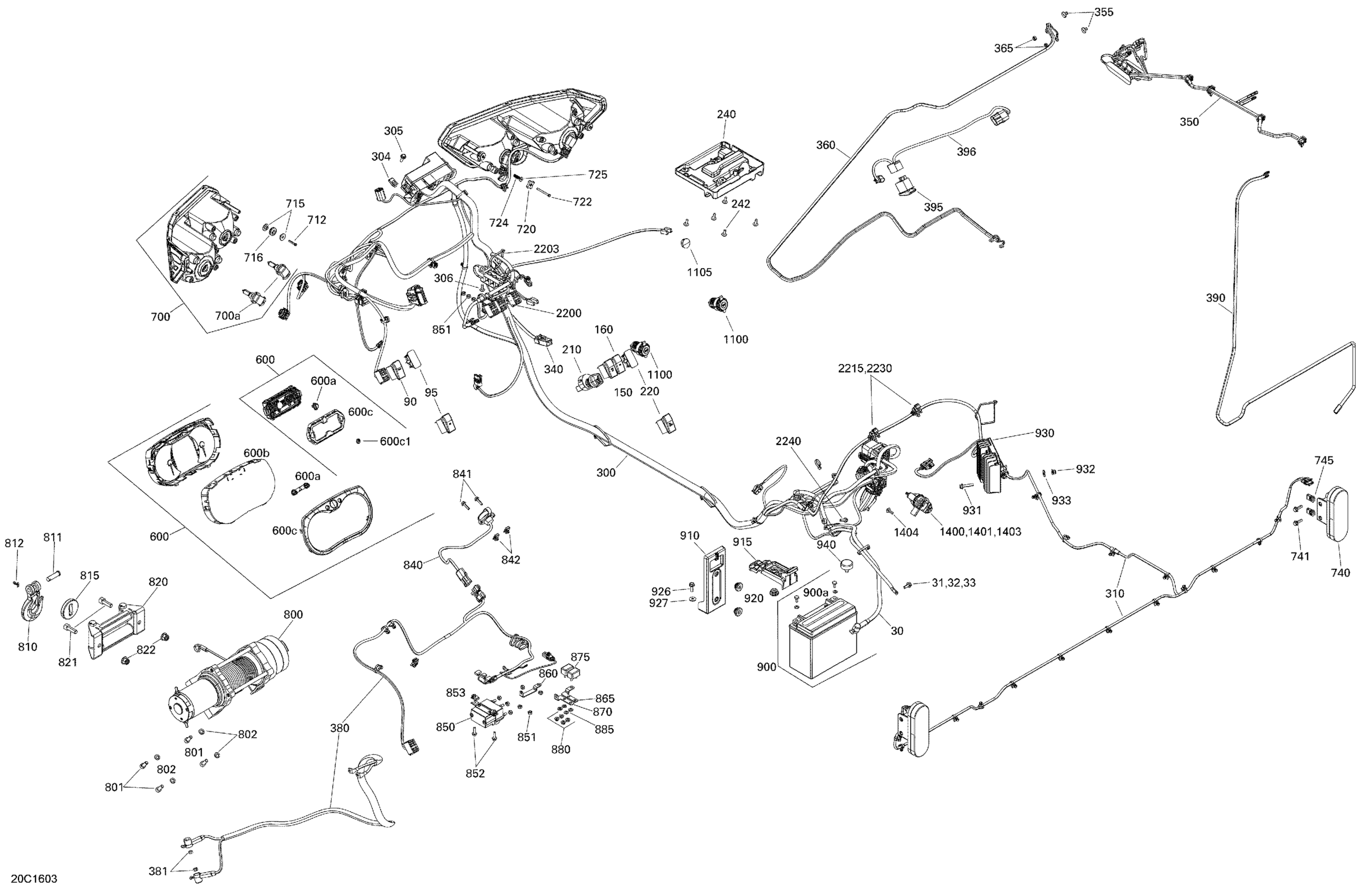

Can-Am Traxter HD8, 2016 Electrical System Diagram
#
30
Negative Cable
710005512
Unavailable
31
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
32
External Serrated Lock Washer 6 mm
234461608
Unavailable
33
Elastic Stop Nut M6
232561414
Unavailable
90
Light Switch
710004492
Unavailable
150
2 X 4 Switch
710004814
Unavailable
160
Differential Lock Switch | Except Package Base
710004783
Unavailable
210
Inter Allumage *Ignition
710007870
Unavailable
220
3-Modes Switch | Winch Equipped Model
715004445
Unavailable
220
Plug Carling | Australia, Brazil, Europe, Japan
710007173
Unavailable
240
Housing Support
710004741
Unavailable
242
Hex. Plastic Screw M4.8 X 16
243141630
Unavailable
300
Harness Ass'y
710004457
Unavailable
304
Panel Nut M6 X 1.0
250100198
Unavailable
306
Hex. Plastic Screw M4.8 X 16
243141630
Unavailable
310
Rear Harness
710004458
Unavailable
340
Not Available As Spare Part - Friction Washer
Unavailable
350
Not Available As Spare Part - Friction Washer
Unavailable
355
Not Available As Spare Part - Friction Washer
Unavailable
360
Not Available As Spare Part - Friction Washer
Unavailable
360
Not Available As Spare Part - Friction Washer
Unavailable
365
Not Available As Spare Part - Friction Washer
Unavailable
380
Winch Harness | Winch Equipped Model
710004465
Unavailable
390
Not Available As Spare Part - Friction Washer
Unavailable
395
Not Available As Spare Part - Friction Washer
Unavailable
396
Not Available As Spare Part - Friction Washer
Unavailable
600>600c1
Speedometer
710005087
Unavailable
600a
Button
715900265
Unavailable
600b
Not Available As Spare Part - Friction Washer
Unavailable
600c>600c1
Trim Ring Ass'y
710001183
Unavailable
700>700a
LH Headlamp | Includes 700 to 700a
710008313
Unavailable
700>700a
RH Beam Ass'y
710005730
Unavailable
700a
Halogen Bulb H8 12V 35W
219800149
Unavailable
700a
Halogen Bulb H8 12V 35W
219800149
Unavailable
712
Hex. Flange Screw K40 X 25
241142560
Unavailable
715
Shoulder Bushing
710004749
Unavailable
720
Handle
572106600
Unavailable
722
Hex. Screw K40 X 45
250000718
Unavailable
724
Spring
517168600
Unavailable
725
Flat Washer 4 mm, Stainless
234042600
Unavailable
740
Tail Light
710004497
Unavailable
745
Panel Nut M6 X 1.0
250100198
Unavailable
800
Electric Winch | Includes 800 to 800a
710006993
Unavailable
801
Socket Head Screw M8 X 25
205082544
Unavailable
802
Lock Washer 8 mm
234181401
Unavailable
810
Winch Hook Kit
705014949
Unavailable
811
Winch Hook Kit
705014949
Unavailable
812
Winch Hook Kit
705014949
Unavailable
815
Stopper
710007028
Unavailable
820
Fairlead Roller
710007082
Unavailable
821
Socket Screw M10 x 30 | XT
205003044
Unavailable
841
Hex. Flange Screw M5 X 20, Scotch Grip
207552044
Unavailable
842
Panel Nut M5 X 0.8
250000958
Unavailable
850
Solenoid
710006991
Unavailable
851
Elastic Stop Nut M6, Brass
232561200
Unavailable
852
Hex. Flange Screw M5 X 20, Scotch Grip
207552044
Unavailable
853
Panel Nut M5 X 0.8
250000958
Unavailable
860
Power Bar
710004772
Unavailable
865
Power Bar
710004872
Unavailable
870
Power Bar
710004873
Unavailable
875
Circuit Breaker 50 Amp
710007039
Unavailable
880
Hex. Flange Nut M5
250100071
Unavailable
885
Lock Washer Helical M6
234161601
Unavailable
910
Fixation Plate
710004788
Unavailable
915
Fixation Plate
710004789
Unavailable
920
Stopper Rubber
705014429
Unavailable
926
Hex. Flange Screw S.Grip M6 X 20
207562054
Unavailable
932
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
940
Rubber Stopper
708001827
Unavailable
1105
Cap
710004993
Unavailable
1400
Starter Relay
278003012
Unavailable
1401
Lock Washer Helical M6
234161601
Unavailable
1403
Hex. Nut M6
232061600
Unavailable
1404
Hex. Plastic Screw M4.8 X 16
243141630
Unavailable
2215
2-Pieces Fixing Tie Rap for Edges | Not Shown
293750058
Unavailable
2240
Tie-Rap Clip
710005180
Unavailable
