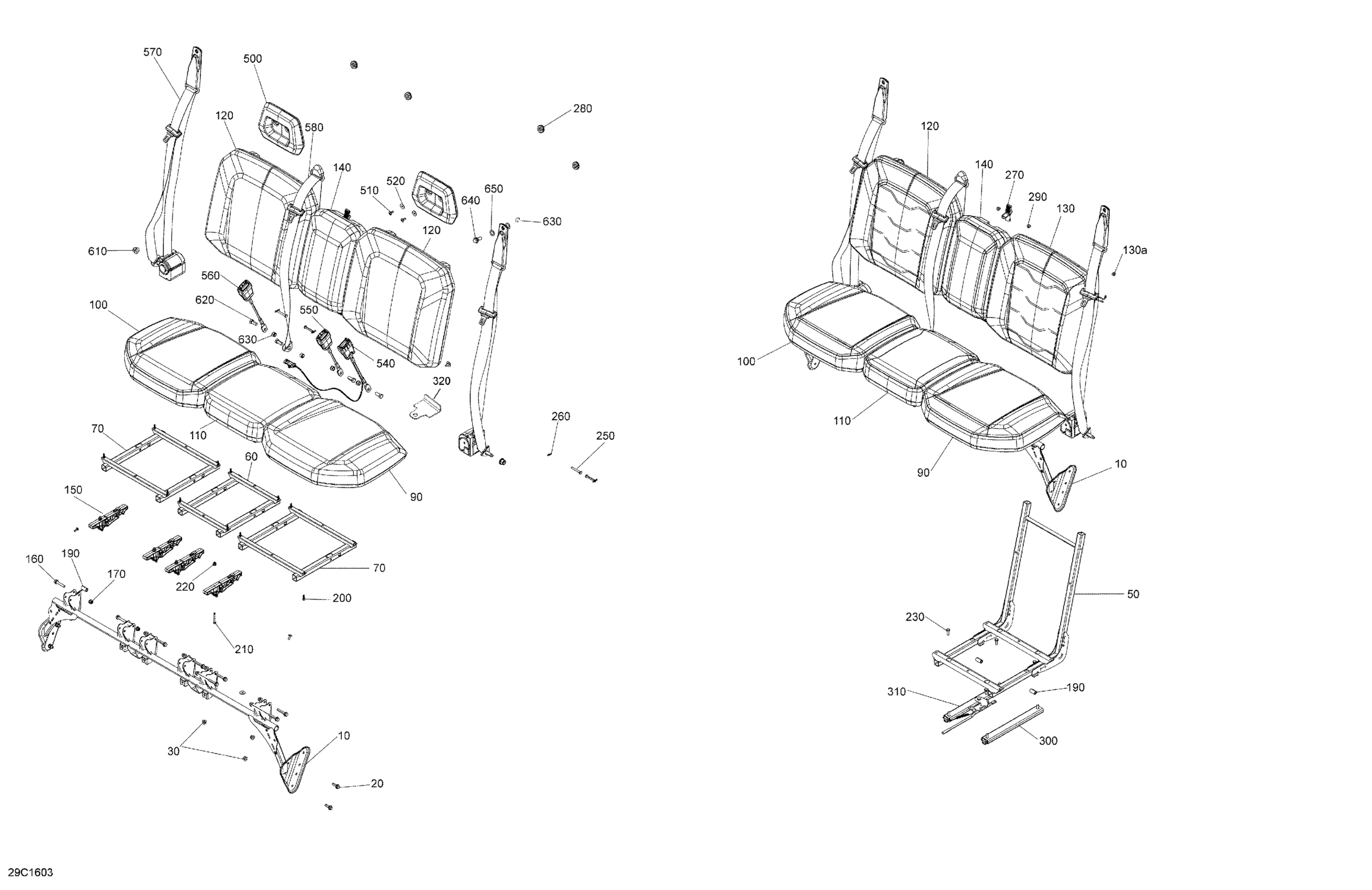

Can-Am Traxter HD8, 2016 Seat Diagram
#
10
Seat Member | Includes 10 to 10a7
708002817
Unavailable
20
Hex. Flange Screw M8 X 25
207682534
Unavailable
30
Hex. Flange Elastic Nut M8
233281414
Unavailable
50
Not Available As Spare Part - Friction Washer
Unavailable
60
Middle Seat Frame
708002527
Unavailable
70
SEAT FRAME - Call your local BRP dealership | Except Package XT, Cab
708002524
Unavailable
90
LH Cushion Ass'y
708002544
Unavailable
100
RH Cushion Ass'y
708001498
Unavailable
110
Central Cushion Ass'y
708001629
Unavailable
120
Backrest Ass'y
708001701
Unavailable
130>130a
Not Available As Spare Part - Friction Washer
Unavailable
130a
Not Available As Spare Part - Friction Washer
Unavailable
140
Center Backrest Ass'y | Except Package XT, Cab
708001630
Unavailable
150
Seat Base Pivot
708002581
Unavailable
160
Hex. Flange Screw M8 X 45
207684544
Unavailable
160
Hex. Flange Screw M8 X 45
207684544
Unavailable
170
Hex. Flange Elastic Nut M8
233281414
Unavailable
171
Hex. Flange Elastic Nut M8
233281414
Unavailable
190
Bushing
708001903
Unavailable
190
Bushing
708001903
Unavailable
200
Torx Screw Truss Head K50X20 T20
250000760
Unavailable
210
Hex. Screw M6 X 45
207064544
Unavailable
220
Not Available As Spare Part - Friction Washer
Unavailable
230
Not Available As Spare Part - Friction Washer
Unavailable
260
Hairpin Cotter
269800431
Unavailable
270
Latch
269501487
Unavailable
280
Grommet
517303756
Unavailable
280
Grommet
517303756
Unavailable
300
Not Available As Spare Part - Friction Washer
Unavailable
310
Not Available As Spare Part - Friction Washer
Unavailable
320
Not Available As Spare Part - Friction Washer
Unavailable
500
Head Rest
708001721
Unavailable
540
Driver Buckle
708002331
Unavailable
550
Middle Buckle
708003163
Unavailable
560
Passenger Buckle
708002329
Unavailable
570
Lateral Safety Belt
708002642
Unavailable
580
Central Safety Belt
708002643
Unavailable
605
Hex. Screw M12 X 80
207028046
Unavailable
606
Flat Washer M12
250200102
Unavailable
610
Elastic Flange Nut M12
233221416
Unavailable
612
Torx Truss Screw M6 X 16
250000721
Unavailable
613
Flat Washer M6.6 X 22
250200162
Unavailable
616
Safety Belt Screw
708000890
Unavailable
617
Position Washer
708000891
Unavailable
