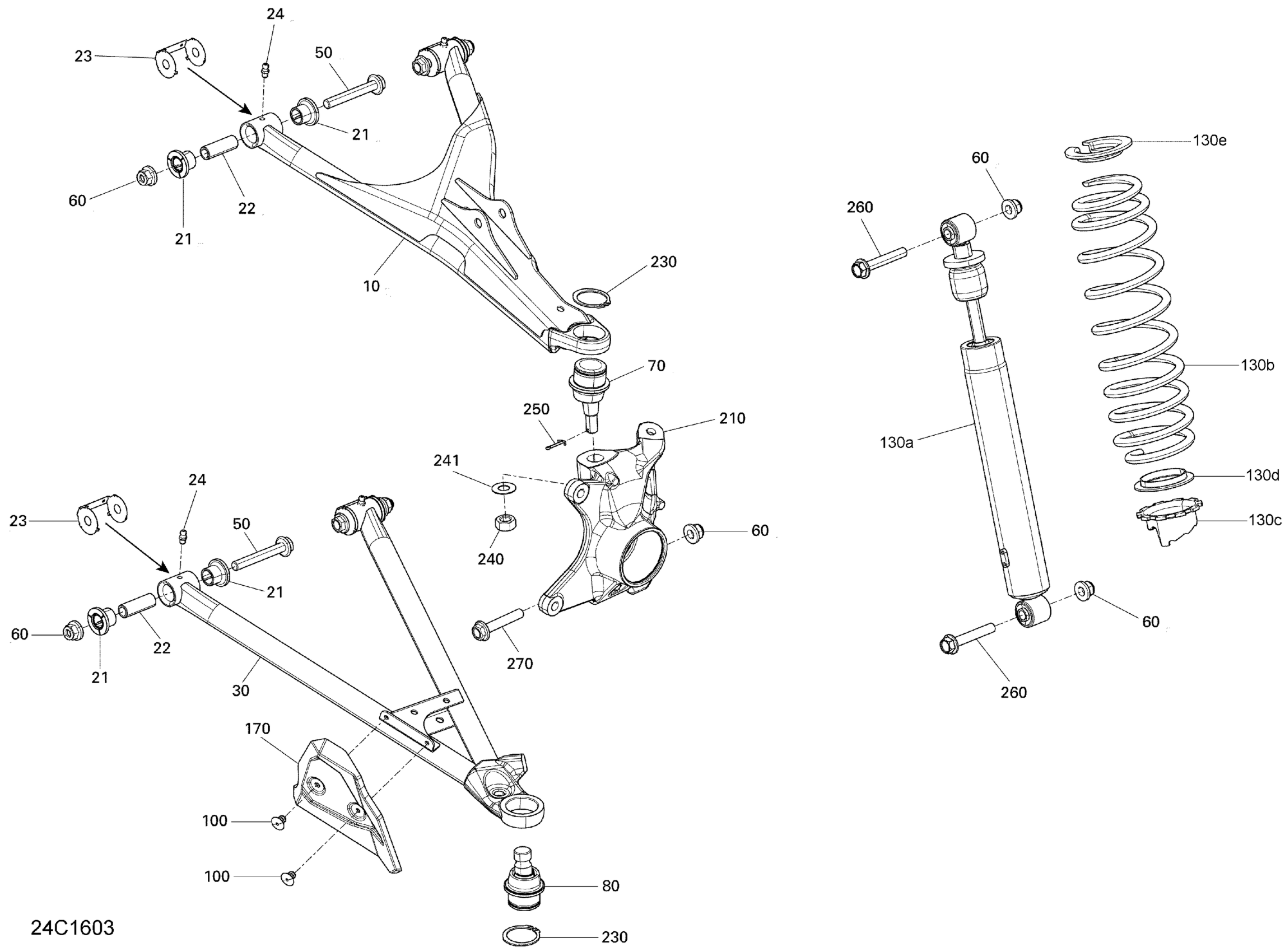

Can-Am Traxter HD8, 2016 Front Suspension Diagram

#

Description
Price

10

Deep Black, LH Upper Suspension Arm Ass'y With Balljoint This part replaces 706204176.

715010606

$235.35

10

Deep Black, RH Upper Suspension Arm Ass'y With Balljoint This part replaces 706204175.

715010605

$235.35

21

Suspension Arm Bushing Kit | Includes 4

703500875

Unavailable

22

Suspension Arm Bushing Kit | Includes 4

703500875

Unavailable

23

Suspension Arm Bushing Kit | Includes 4

703500875

Unavailable

24

Grease Fitting

408200700

Unavailable

30

LH Rear Suspension Arm Ass'y With Balljoint

715010597

$235.35

30

RH Front Suspension Arm Ass'y With Balljoint

715010598

$235.35

50

Hex. Flange Screw M10 X 70

207607046

Unavailable

60

Hex. Flange Elastic Nut M10

233201436

Unavailable

70

Ball Joint

706202044

Unavailable

80

Ball Joint

706202045

Unavailable

100

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

130a

Front Shock

706202602

$159.97

130b

SPRING - Call your local BRP dealership | Engine HD8 Except P-XT

706202504

$116.89

130c

Adjustment Ring

706001893

$14.37

130d

Spring Guide

503187500

Unavailable

130e

Spring Cup

706001894

$14.75

170

RH CV joint Guard

706202135

Unavailable

170

LH CV joint Guard

706202134

Unavailable

210

LH Knuckle

706205517

$198.43

210

RH Knuckle

706205047

$198.43

230

Circlip

293370035

$2.55

240

Nut M12

250100099

Unavailable

241

Hardened Washer

706200281

Unavailable

250

Cotter Pin

211400017

Unavailable

260

Hex. Flange Screw M10 X 6

207606046

Unavailable

270

Hex. Flange Screw M10 X 55

207605546

Unavailable
