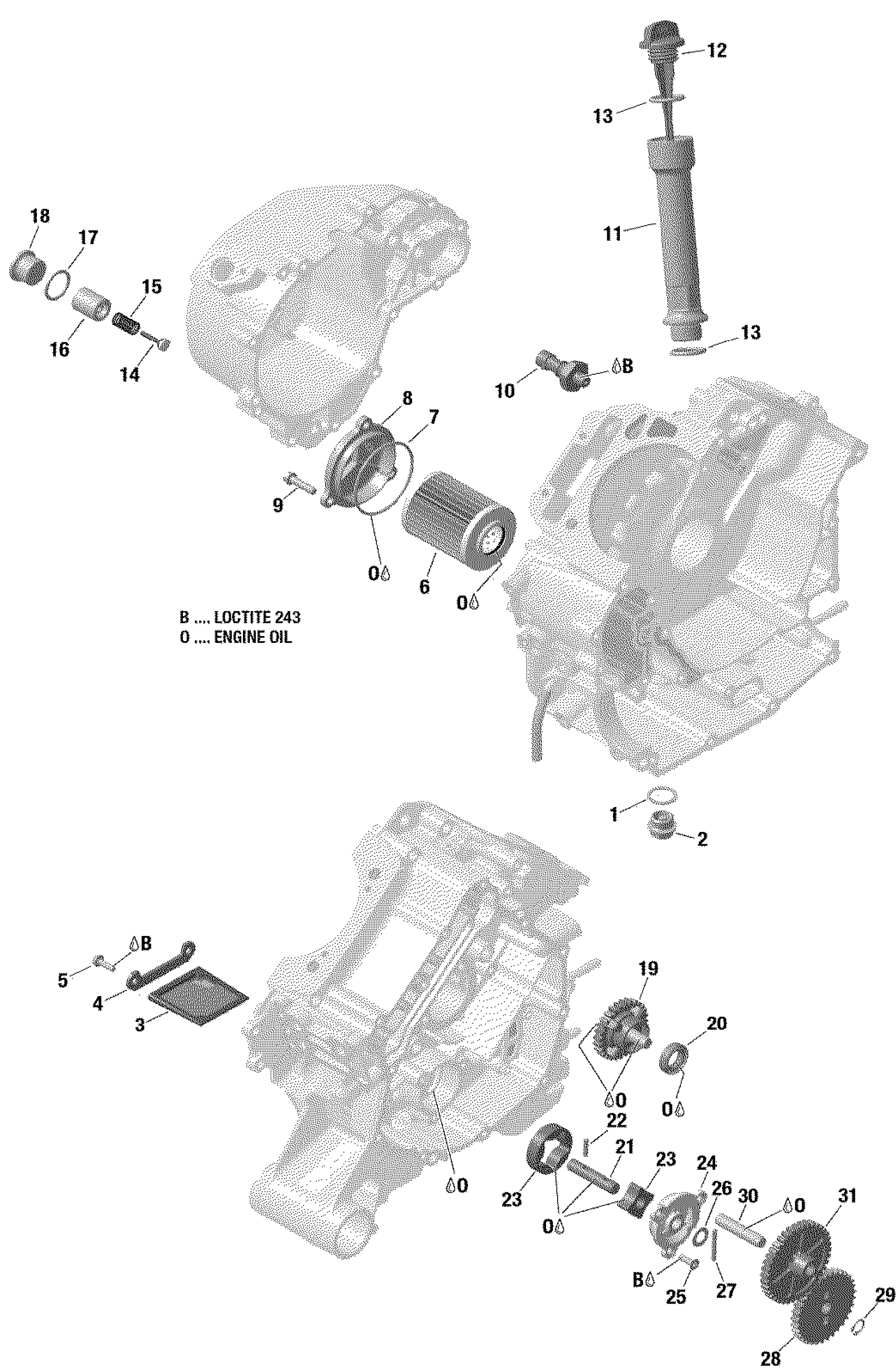

Can-Am Traxter HD8, 2016 Engine Lubrication - HD8 Diagram

#

Description
Price

1

Crush Washer

420552280

Unavailable

2

Drain Plug M18 X 1.5

420840278

Unavailable

3

Oil Sieve

420256322

Unavailable

4

Cover Sieve

420612070

Unavailable

5

Taptite Screw M5 X 16

420941928

Unavailable

6

Oil Filter

420256188

Unavailable

7

O-Ring

420230923

$2.59

8

Oil Filter cover

420612135

$11.11

9

Torx Flange Screw M6 X 25

420641238

Unavailable

10

Oil Pressure Switch

420256915

$38.43

11

Oil Lever Tube

420856925

Unavailable

12

Oil Dipstick

420856810

Unavailable

13

O-Ring

420631640

Unavailable

14

Pressure Relief Valve

420656370

Unavailable

15

Compression Spring

420939485

Unavailable

16

Housing

420256487

Unavailable

17

Gasket Ring

420650465

$11.52

18

Plug Screw

420640271

Unavailable

19>20

Idle Gear Ass'y, 28 Teeth | Includes 13 to 16

420434307

Unavailable

20

Oil Seal

420430555

Unavailable

21

Oil Pump Shaft

420237059

Unavailable

22

Needle Pin

420232731

$1.56

23

Oil Pump Rotor

420256348

$61.72

24

Oil Pump Cover

420210646

Unavailable

25

Torx Head Screw M5 X 16

420640823

Unavailable

26

Thrust Washer

420827590

$3.86

27

Needle Pin

420232431

$3.67

28

Oil Pump Gear, 33 Teeth

420434320

Unavailable

29

Circlip

504152282

$3.11

30

Location Pin 10 M6x50

420229302

$3.11

31

Idle Gear, 38 Teeth

420434300

Unavailable
