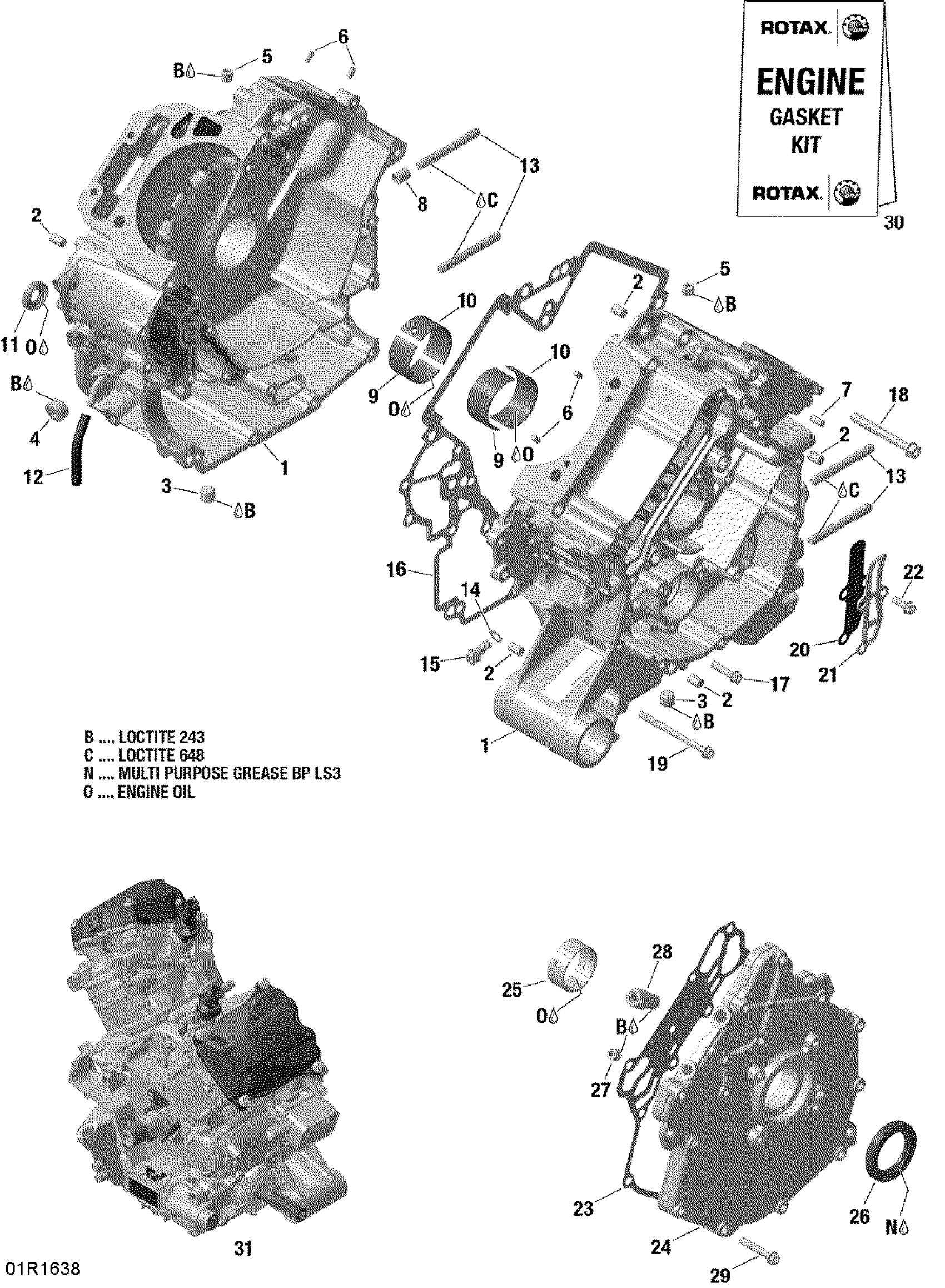

Can-Am Traxter HD8, 2016 Crankcase - HD8 Diagram

#

Description
Price

1

To be determined

TBD

Unavailable

2

Center Pin 8 X 12

420632010

Unavailable

3

Plug Screw M12x1,5

420840658

$7.31

4

Plug Screw M18 X 1.5 - Call your local BRP dealership

420240170

$7.23

5

Plug Screw M10 X 1

420641323

Unavailable

6

Drive Pin 5 X 10

420929650

Unavailable

7

Needle Pin

420932780

Unavailable

8

Dowel Pin 10 X 13

420929670

Unavailable

9

Plain Bearing

420233960

Unavailable

10

Plain Bearing

420233965

Unavailable

11

Oil Seal

420650315

$9.62

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Stud

420240816

Unavailable

14

Sealing Ring

420950141

$1.64

15

Torx Flange Screw M8 X 16

420440852

Unavailable

16

Gasket

420651227

Unavailable

17

Torx Flange Screw M6 X 25

420641238

Unavailable

18

Torx Flange Screw M8 X 65

420440402

Unavailable

19

Torx Flange Screw M6 X 75

420440657

Unavailable

20

Reed Valve

420224721

Unavailable

21

Reed Valve Stop

420224725

Unavailable

22

Torx Flange Screw M6 X 16

420641048

Unavailable

23

Gasket

420651211

Unavailable

24>27

PTO Cover Ass'y | Includes 25a to 29

420612335

Unavailable

25

Bearing Sleeve

420233995

Unavailable

26

Oil Seal

420631933

Unavailable

27

Plug Screw M10 X 1

420641323

Unavailable

28

Hose Nipple M12 X 1.5

420256334

Unavailable

29

Torx Flange Screw M6 X 35

420440274

Unavailable

30

Gasket Kit, Engine

420684155

Unavailable

31

Long Block

420081060

Unavailable
