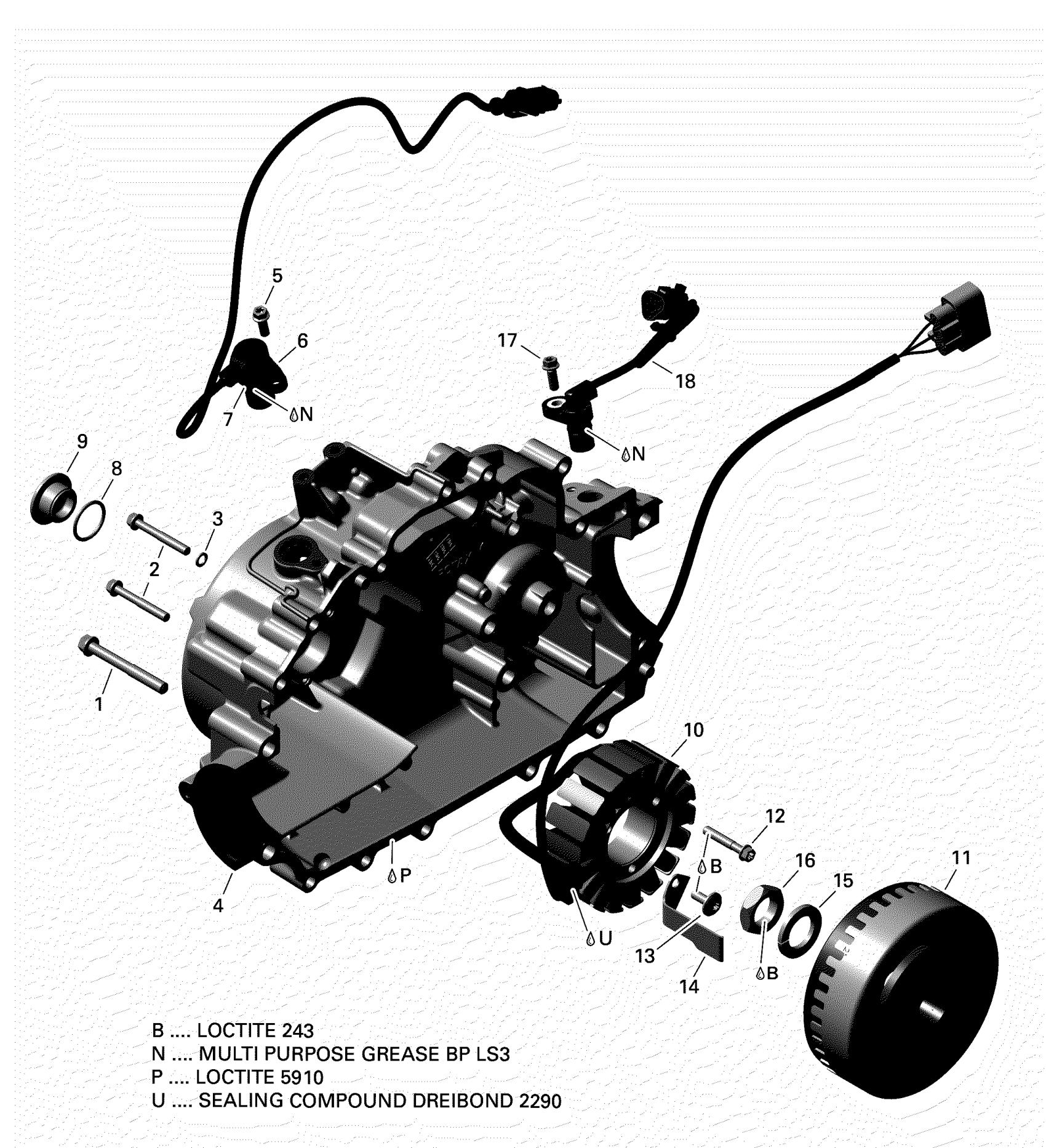

Can-Am Traxter HD5, 2017 Magneto Diagram
#
Description
Price
1
Torx Flange Screw M8 X 65
420440402
Unavailable
4
Not Available As Spare Part - Friction Washer
Unavailable
8
O-Ring
420430782
Unavailable
9
Plug Screw M24X 1.5
420241633
Unavailable
10
Stator Plate, 480W
420685921
Unavailable
11
Flywheel 480W
420686275
Unavailable
12
Torx Flange Screw M6 X 35
420440274
Unavailable
13
Torx Screw M6 X 16
420241529
Unavailable
14
Inner Cable Cover
420251270
Unavailable
15
Lock Washer, 22 mm
420945759
Unavailable
16
Hex. Nut, M22 X 1.5
420842239
Unavailable
18
Camshft Position Sensor Ass'y
420265727
Unavailable
