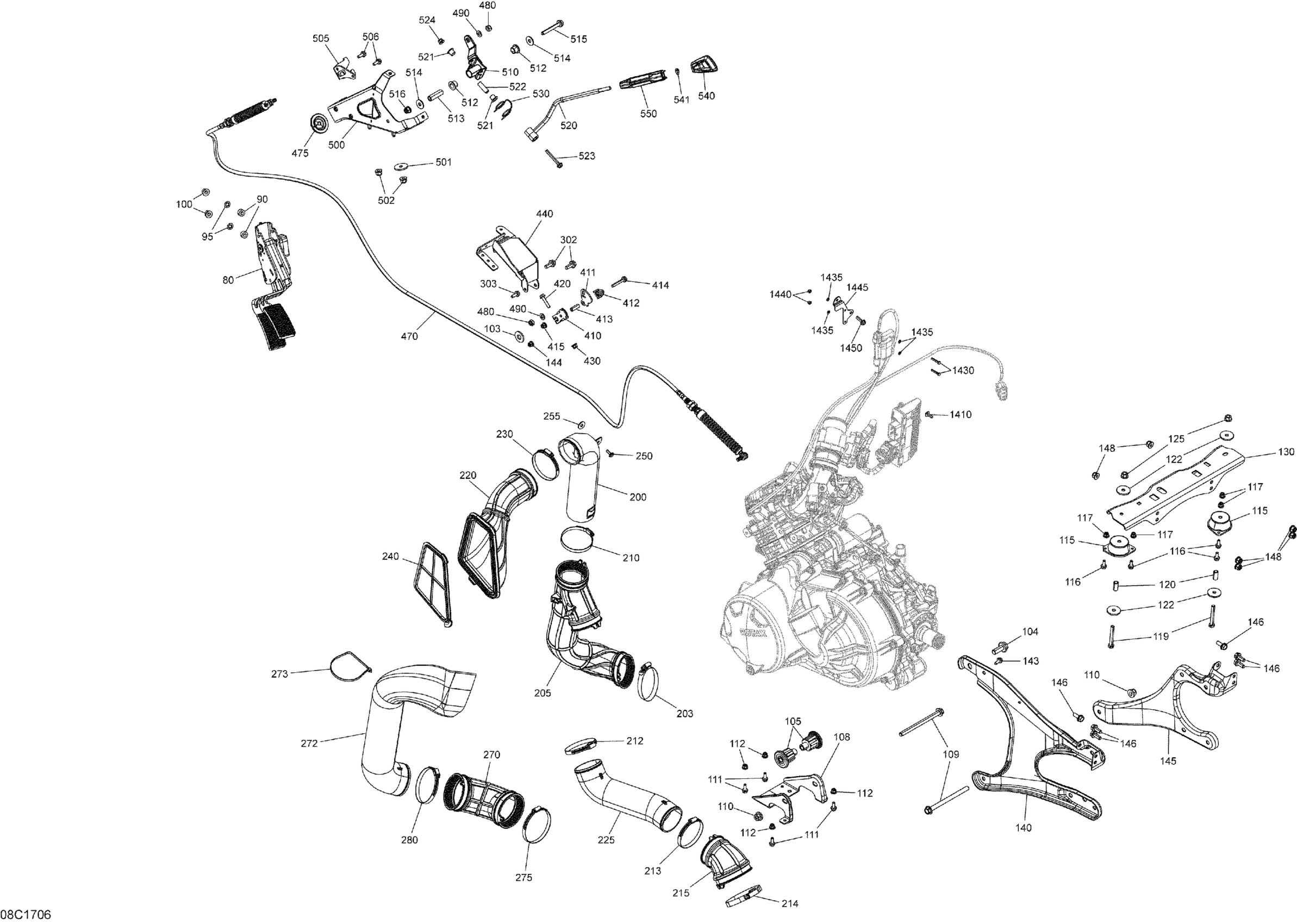

Can-Am Traxter HD5, 2017 Engine Diagram
#
100
Hex. Flange Nut M8
233081416
Unavailable
103
Conical Spring Washer M12
250200005
Unavailable
104
Hex. Flange Screw M12 X 30, Scotch Grip
207523056
Unavailable
105
Vibration Damper
707001169
Unavailable
108
Front Engine Bracket
707001989
Unavailable
109
Hex. Flange Screw M10 X 135
230603546
Unavailable
110
Hex. Flange Elastic Nut M10
233201436
Unavailable
111
Hex. Flange Screw M6 X 16
207661644
Unavailable
112
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
115
Rubber Mount
707001867
Unavailable
116
Hex. Flange Screw M6 X 16
207661644
Unavailable
117
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
119
Hex. screw M8 x 60
207186044
Unavailable
120
Bushing
707001908
Unavailable
122
Flat Washer M8
250200158
Unavailable
125
Hex. Flange Nut M8
233081416
Unavailable
130
Rear Link Bracket
707002290
Unavailable
140
Bracket -Engine
707001991
Unavailable
143
Hex. Flange Screw M6 X 16
207661644
Unavailable
144
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
145
Bracket -Engine
707001992
Unavailable
146
Hex. Flange Screw M8 X 20
207682044
Unavailable
148
Hex. Flange Elastic Nut M8
233281414
Unavailable
203
Norma Clamp
293650091
Unavailable
210
Norma Clamp
293650091
Unavailable
212
Norma Clamp
293650091
Unavailable
213
Norma Clamp
293650091
Unavailable
230
Norma Clamp
293650091
Unavailable
250
Hex. Plastic Screw M4.8 X 16
243141630
Unavailable
255
Washer M5
250200025
Unavailable
303
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
411
Pivot Plate
707001988
Unavailable
412
Spring
707000310
Unavailable
413
Bushing
293900079
Unavailable
415
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
430
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
440
Cable Support
707001986
Unavailable
470
Shifting Cable
707002227
Unavailable
480
Hex. Elastic Stop Nut M8
232581414
Unavailable
490
Flat Washer 8 mm
234081410
Unavailable
500
Shifter Braket
707002003
Unavailable
501
Flat Washer M8
250200158
Unavailable
502
Hex. Flange Elastic Nut M8
233281414
Unavailable
505
Cable Support
707002038
Unavailable
506
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
510
Lower Shifter Arm
707002268
Unavailable
512
Venturi Bushing
293900001
Unavailable
513
Bushing
707003445
Unavailable
516
Hex. Flange Elastic Nut M8
233281414
Unavailable
520
Welded Arm
707002230
Unavailable
523
Hex. Flange Screw M6 X 50
207665044
Unavailable
524
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
540
Lever Trim
707003211
Unavailable
541
Hex. Jam Nut M8
232180491
Unavailable
550
Shifting Arm Cover
707001899
Unavailable
1410
Hex. Plastic Screw M4.8 X 16
243141630
Unavailable
1430
Hex. Screw M4 X 25
207142544
Unavailable
1435
Flat Washer 4 mm
234040600
Unavailable
1445
Ignition Coil Bracket
707002024
Unavailable
1450
Hex. Flange Screw M6 X 20
207662044
Unavailable
