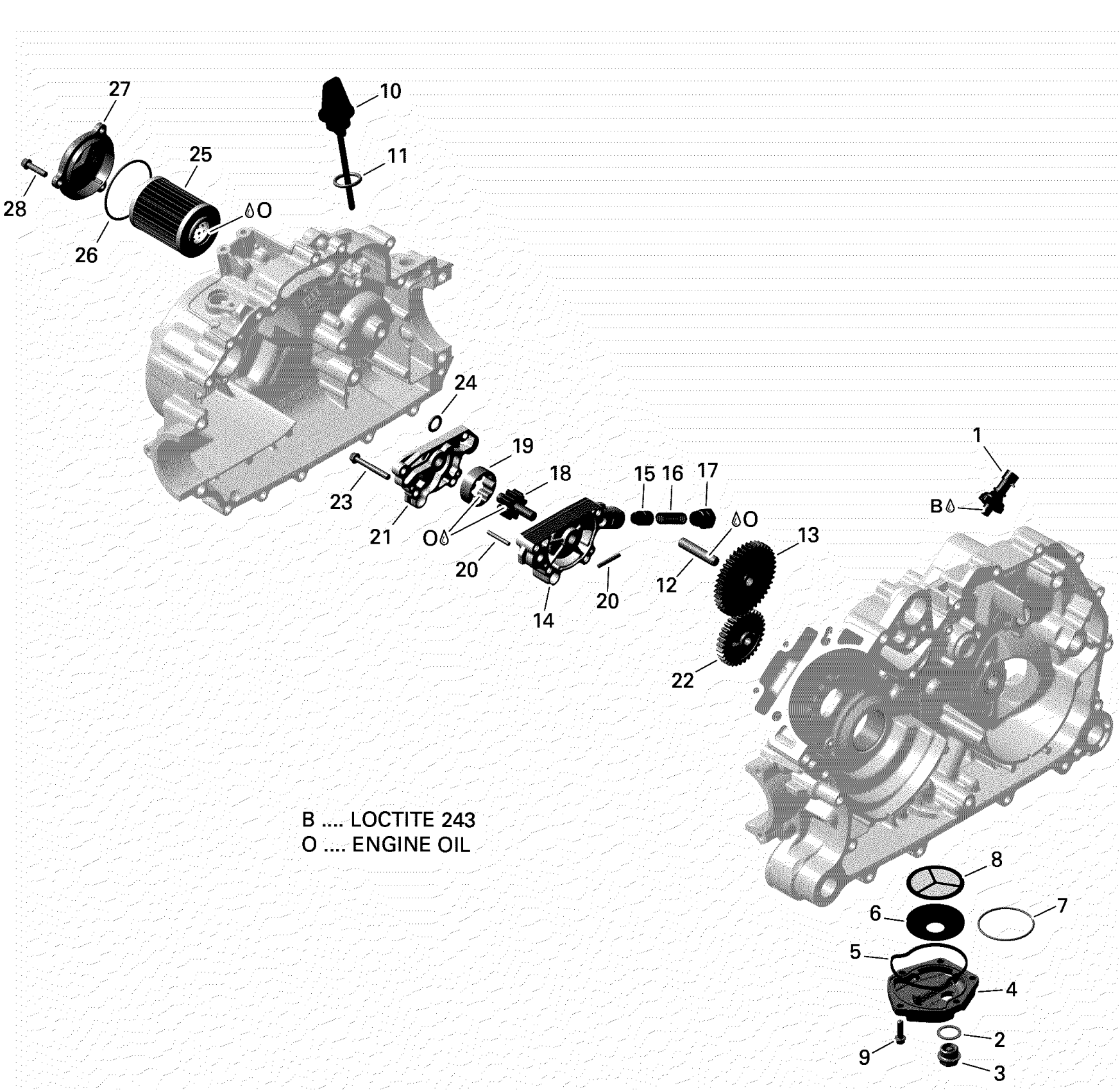

Can-Am Traxter HD5, 2017 Engine Lubrication Diagram

#

Description
Price

1

Oil Pressure Switch

420256915

$38.43

2

Crush Washer

420552280

Unavailable

3

Drain Plug M18 X 1.5

420840278

Unavailable

4

Oil Sieve Cover

420211944

Unavailable

5

Rubber Ring

420650560

Unavailable

6

Oil Collector

420256650

Unavailable

7

O-Ring

420650697

$10.14

8

Oil Sieve

420256576

Unavailable

9

Torx Flange Screw M6 X 20

420440207

$2.54

10

Oil Dipstick

420256800

Unavailable

11

O-Ring

420631640

Unavailable

12

Location Pin 10 M6x50

420229302

$3.11

13

Idle Gear, 42 Teeth

420635660

Unavailable

14>21

Oil Pump Ass’y | Includes 17 to 24

420296507

Unavailable

14

Oil Pump Housing

420610221

Unavailable

15

Piston Valve

420256922

Unavailable

16

Compression Spring

420238220

Unavailable

17

Plug Screw M16

420641167

Unavailable

18

Oil Pump Shaft

420220814

Unavailable

19

Oil Pump Outer Rotor

420256935

Unavailable

20

Needle Pin

420232431

$3.67

21

Oil Pump Cover

420610570

Unavailable

22

Oil Pump Gear, 32 Teeth

420635220

Unavailable

23

Torx Flange Screw M6 X 45

420440324

$0.81

24

O-ring

420250290

Unavailable

25

Oil Filter

420256188

Unavailable

26

O-Ring

420230923

$2.59

27

Oil Filter cover

420612135

$11.11

28

Torx Flange Screw M6 X 25

420440234

Unavailable
