Description

Price

1

Oil Seal

420650315

$9.62

2

Waterpump Shaft Ass'y

420620171

Unavailable

3

Water Impeller

420222505

$14.92

4

Gasket

420630270

$10.14

5

Water Pump Housing

420222680

Unavailable

6

Seal Washer

420230415

$1.77

7

Torx Flange Screw M6 X 25

420440234

Unavailable

8

Needle Pin

420232431

$3.67

9

Idle Gear, 25 Teeth

420635191

Unavailable

10

Circlip

504152282

$3.11

11

Circlip

504152282

$3.11

12

Idle Gear, 34 Teeth

420635620

Unavailable

13

Needle Pin

420232431

$3.67

14

Thrust Washer

420827590

$3.86

15>16

Thermostat 65° With Gasket Ass'y | Includes 42 to 43

420222494

Unavailable

16

Thermostat Gasket

420650300

Unavailable

17

Thermostat Cover

420222696

Unavailable

18

Torx Flange Screw M6 X 25

420440234

Unavailable

19

Gasket Ring

420650255

Unavailable

20

Screw M5 X 16

420441621

Unavailable

21

Temperature Sensor

278002895

$31.82

22

Not Available As Spare Parts

XXX

Unavailable

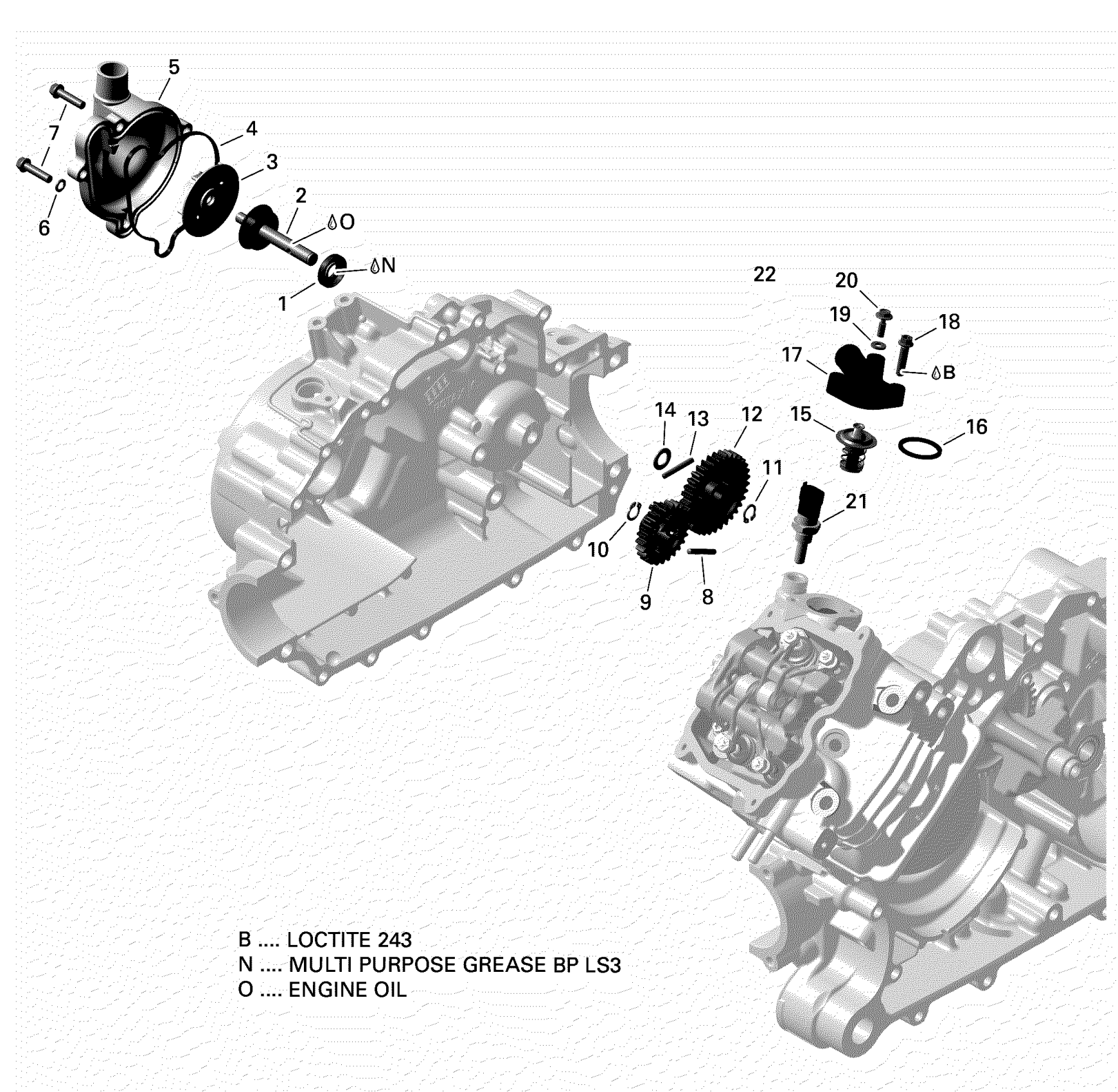

Can-Am Traxter HD5, 2017 Engine Cooling Diagram

Waterpump Shaft Ass'y

Water Pump Housing

Torx Flange Screw M6 X 25

Idle Gear, 25 Teeth

Idle Gear, 34 Teeth

Thermostat 65° With Gasket Ass'y | Includes 42 to 43

Thermostat Gasket

Thermostat Cover

Torx Flange Screw M6 X 25

Gasket Ring

Screw M5 X 16

Not Available As Spare Parts
