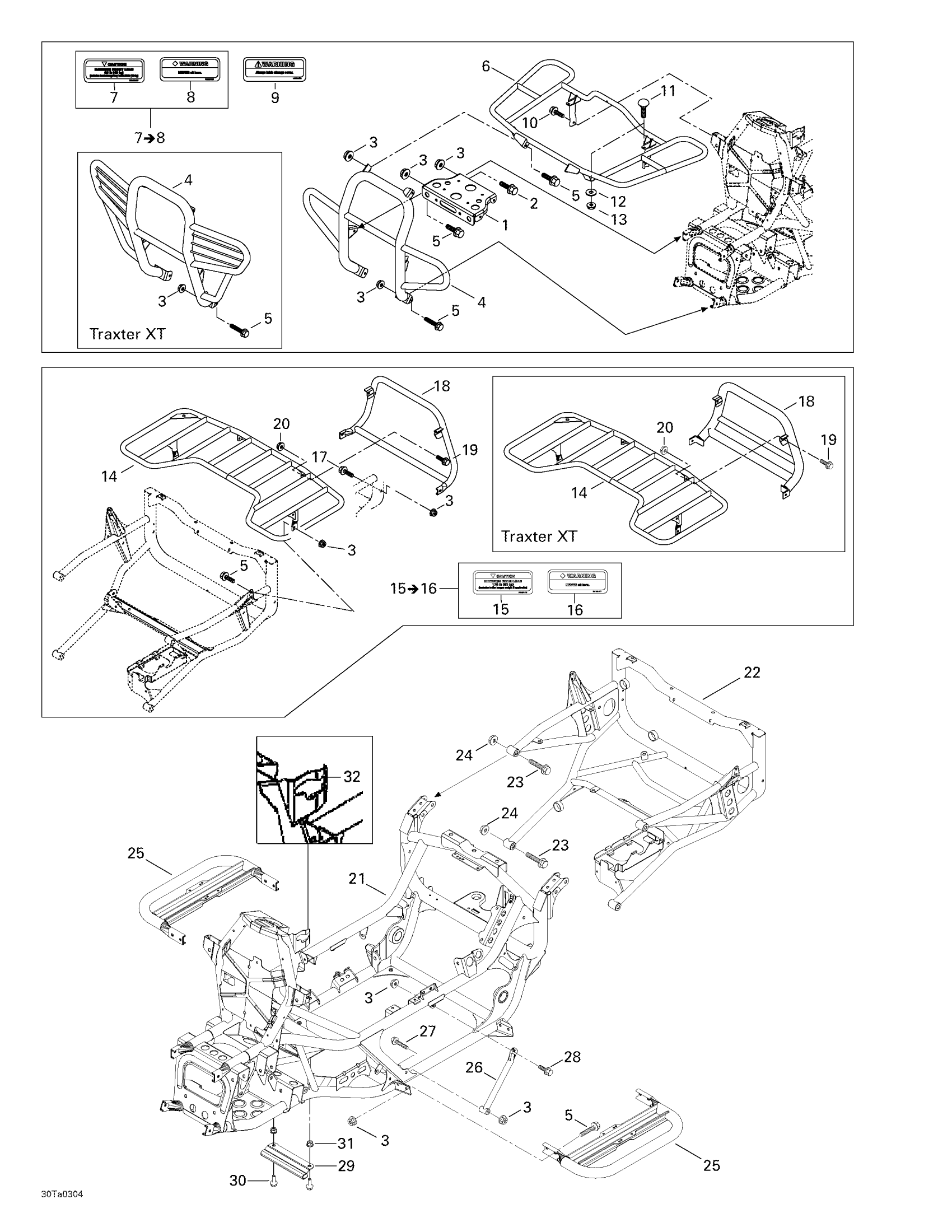

Can-Am Traxter Autoshift XT, 2003 Frame And Luggage Racks Diagram

#

Description
Price

1

WINCH LATCH, BLACK - Call your local BRP dealership

705200196

Unavailable

2

Hex. Flange Screw M8 X 20

207682044

$0.92

3

Hex. Flange Elastic Nut M8

233281414

$1.14

4

Front Bumper, Black | Traxter 5 Speed STD

705000591

Unavailable

FRONT BUMPER, BLACK - Call your local BRP dealership | Traxter 5 Speed XT

705000585

Unavailable

5

Hex. Flange Screw M8 X 20

207682044

$0.92

6

Front Luggage Rack, Black

703500264

Unavailable

7

Warning Label, Front Load | Includes 8 - 9.

704900037

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Warning Label, Tray Cover

704900038

Unavailable

10

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

11

TRUSS PHILLIPS SCREW M6 X 25 - Call your local BRP dealership

250000035

Unavailable

12

Flat Washer

224060201

$1.15

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

14

Rear Luggage Rack, Black

705000622

Unavailable

15

Warning Label | Includes 6 - 7.

704900036

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Hex. Flange Screw M8 X 50

207685044

$1.39

18

Rear Bumper, Black | Traxter 5 Speed STD

705000602

Unavailable

Rear bumper | XT Quest XT 650.

705000586

Unavailable

19

Hex. Flange Screw M8 X 20

207682046

$1.82

20

Hex. Elastic Flange Nut M8

233281416

$1.25

21

Frame (Black)

705200545

Unavailable

22

Frame Extension, Black

705200546

Unavailable

23

Hex. Flange Screw M10 X 60

207606044

$2.78

24

Hex. Flange Elastic Nut M10

233201414

$1.26

25

Footrest, Black

705000610

Unavailable

26

Removable Brace, Black

705200143

Unavailable

27

Hex. Flange Screw M8 X 50

207685044

$1.39

28

Hex. Flange Screw M8 X 25

207682544

$0.90

29

Bracket, Black

705200575

Unavailable

30

Hex. Flange Screw M6 X 16

207661644

$0.61

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

32

Shift Patern

705200351

Unavailable
