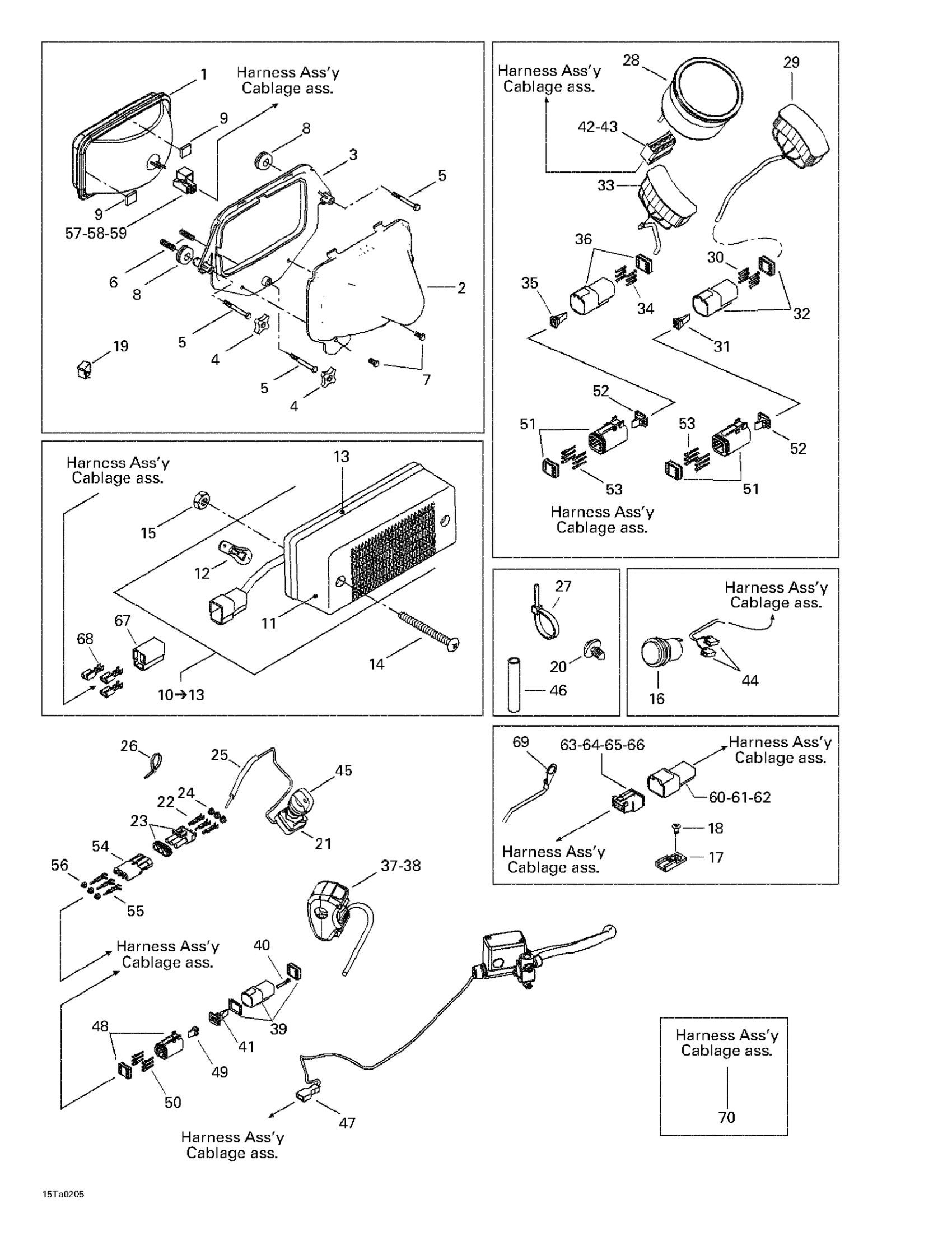

Can-Am Traxter Autoshift, 2002 Main Harness And Electrical Accessories Diagram

#

Description
Price

1

HEADLAMP - Call your local BRP dealership

710000001

Unavailable

2

Protector

705000023

$22.28

3

Head Lamp Support

705000474

Unavailable

4

Handle

572106600

Unavailable

5

HEX. SCREW K40 X 40 - Call your local BRP dealership

250000008

Unavailable

6

Spring

517168600

Unavailable

7

PHILLIPS SCREW K40 X 10 - Call your local BRP dealership

241641040

Unavailable

8

Grommet

709000582

$4.38

9

Rubber Pad

293830088

Unavailable

10

Tail Light Housing

710000102

Unavailable

11

TAIL LIGHT LENS, RED - Call your local BRP dealership

710000055

Unavailable

12

Bulb

520000758

$7.49

13

GASKET - Call your local BRP dealership

710000129

$8.43

14

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

Unavailable

15

Hex. Flange Elastic Nut M5

233251414

Unavailable

16

Outlet Power Kit, 12 Volts

861507200

Unavailable

17

Clip

270000141

$8.33

18

Pop Rivet 3/16"

390402400

Unavailable

19

Clip

414227300

$1.45

20

Mount Dart

293730040

$0.86

21

Ignition Switch Ass'y | Includes 24 - 27.

710000042

Unavailable

22

Female Terminal

278000223

Unavailable

23

Male Housing, 3 Circuits

278000273

Unavailable

24

Wire Seal

278000218

Unavailable

25

Protector Tube

710000171

Unavailable

26

Tie Wrap 142 mm

293750002

Unavailable

27

Tie Wrap 142 mm

293750002

Unavailable

27

Tie Wrap 368 mm

293750008

$0.85

27

Tie-Rap 180 mm

414115200

$0.09

28

Speedometer

710000198

Unavailable

29

RH Warning Lamp | Includes 29 - 32.

710000089

Unavailable

30

MALE TERMINAL - Call your local BRP dealership

409014800

$3.14

31

Male Lock, 6 Circuits

409014600

Unavailable

32

Male Terminal Housing, 6 Circuits

409015200

Unavailable

33

LH Warning Lamp

710000008

Unavailable

34

MALE TERMINAL - Call your local BRP dealership

409014800

$3.14

35

Male Lock, 6 Circuits

409014600

Unavailable

36

Male Terminal Housing, 6 Circuits

409015200

Unavailable

37

Multi-function Switch Ass'y | Includes 26 to 30

710000088

Unavailable

38

BACK COVER - Call your local BRP dealership

710000173

$26.89

39

Male Terminal Housing, 6 Circuits

409015200

Unavailable

40

MALE TERMINAL - Call your local BRP dealership

409014800

$3.14

41

Male Lock, 6 Circuits

409014600

Unavailable

42

Female Housing (8 Circuits)

710000035

Unavailable

43

Female Terminal

710000036

$4.68

44

Female Terminal

710000038

$4.60

45

BLANK KEY (B TYPE) - Call your local BRP dealership

710000101

$15.35

45

BLANK KEY (A TYPE) - Call your local BRP dealership

710000137

Unavailable

46

Vinyl Tubing, Low Temp 3000Mm Long

219704424

Unavailable

46

Tubing 6 Mm 3000Mm Long

219704425

$13.14

46

Was 409901700 Tubing (9 mm)

219704399

Unavailable

46

Was 409901800 Tubing (13 mm)

219704400

Unavailable

46

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

46

Was 409901600 Tubing 19mm

219704398

Unavailable

47

Female Terminal

710000082

$6.03

48

FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

409015400

$9.48

49

FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership

409014900

$3.05

50

FEMALE TERMINAL - Call your local BRP dealership

409015100

$3.97

51

FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

409015400

$9.48

52

FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership

409014900

$3.05

53

FEMALE TERMINAL - Call your local BRP dealership

409015100

$3.97

54

Female Terminal Housing, 3 Circuits | XT Models

278000281

Unavailable

55

Male Terminal

409004300

$5.46

56

Wire Seal

278000218

Unavailable

57

Female Terminal

710000027

Unavailable

58

Female Lock, 2 Circuits

710000028

Unavailable

59

FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

710000026

$8.43

60

MALE HOUSING, 3 CIRCUITS - Call your local BRP dealership

710000044

$23.51

61

MALE LOCK, 3 CIRCUITS - Call your local BRP dealership

710000043

$5.46

62

MALE TERMINAL - Call your local BRP dealership

409014800

$3.14

63

FEMALE TERMINAL HOUSING, 3 CIRC. - Call your local BRP dealership

515175249

Unavailable

64

Female Lock, 3 Circuits

515175248

Unavailable

65

PLUG - Call your local BRP dealership

515175303

Unavailable

66

FEMALE TERMINAL - Call your local BRP dealership

409015100

$3.97

67

Female Housing

409204300

Unavailable

68

Female Terminal

561503100

Unavailable

69

Open Barrel Terminal

278001392

Unavailable

70

Harness Ass'y (Not Shown)

710000200

Unavailable
