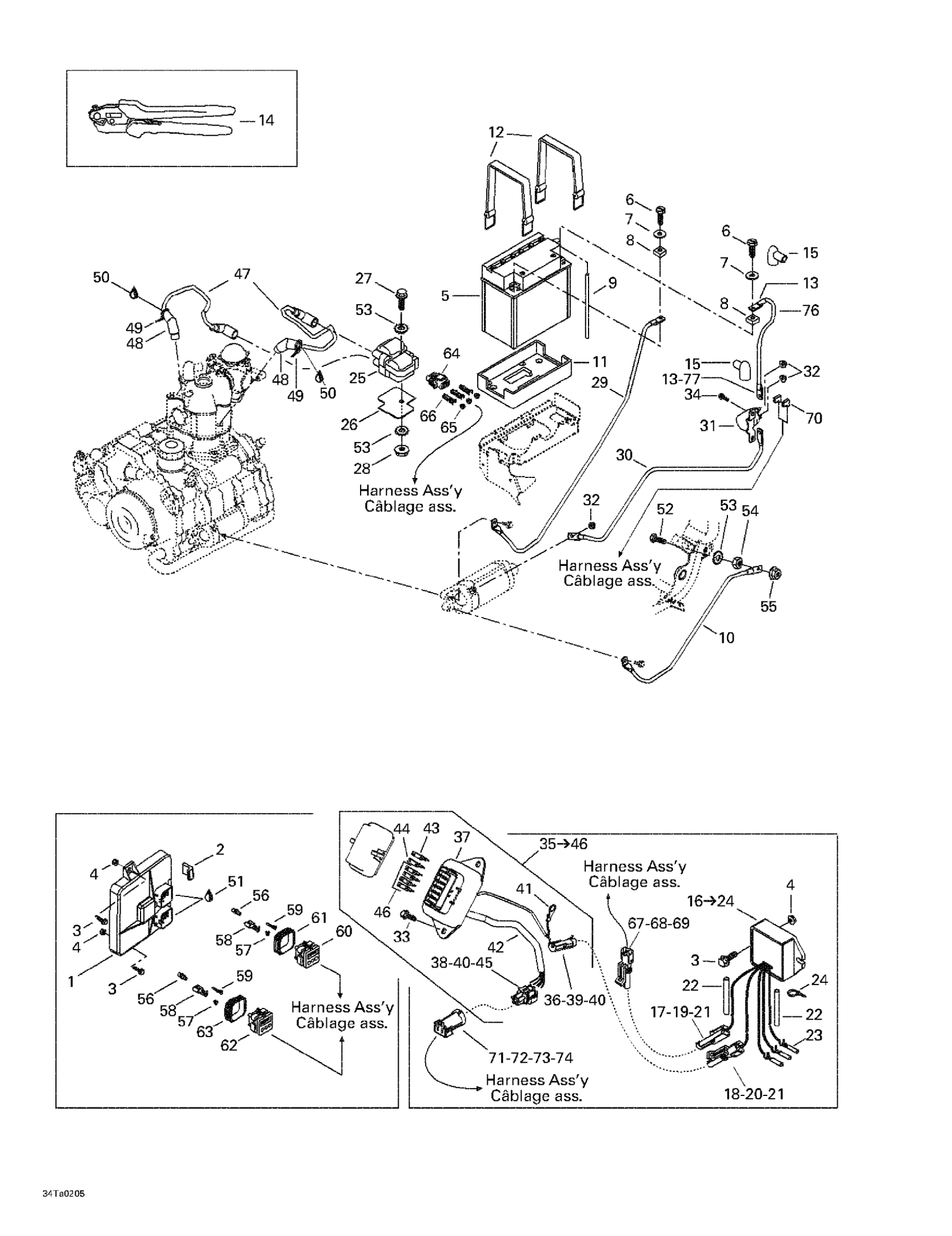

Can-Am Traxter Autoshift, 2002 Battery And Electrical Accessories Diagram

#

Description
Price

1

ELECTRONIC MODULE - Call your local BRP dealership

710000147

Unavailable

2

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

3

Hex. Flange Screw M6 X 20

207662044

$1.91

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

5

Battery 19A | Includes 5 to 8

278001756

$144.75

6

Hex. Screw M6 X 16

207161644

$0.70

7

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

8

Hex. Nut M6

232061414

$0.51

9

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

10

Battery Ground Cable

710000022

Unavailable

11

Lower Battery Pad

278001746

Unavailable

12

Retainer Strap

293850097

$10.63

13

Was 710000483 Heat Shrink Tubing

219704447

$72.36

14

Crimp Plier

529035730

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

VOLT REGULATOR ASS'Y - Call your local BRP dealership | Includes 18 to 26

710000100

Unavailable

17

Male Terminal | XT Models

278000222

$2.93

18

Female Terminal

278000223

$2.93

19

Female Housing, 1 Circuit

278000161

$8.72

20

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

21

Wire Seal

278000218

$4.00

22

LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership

409901300

Unavailable

23

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

24

Tie Wrap 94 mm | 4X4

293750001

$0.96

25

Ignition Coil

278001546

$148.48

26

Insulator Pad

710000073

$10.30

27

Hex. Flange Screw M6 X 50

207665044

$3.88

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

29

Engine Ground Cable

710000211

Unavailable

30

STARTER POSITIVE CABLE - Call your local BRP dealership

710000136

Unavailable

31

Starter Relay

515176011

$59.67

32

Hex. Elastic Stop Nut M6

232561600

$1.06

33

Hex. Flange Screw M6 X 16

210261650

$1.40

34

Hex. Self-threaded Screw 1/4"-20 X 3/4"

250000061

Unavailable

35

Fuse Hoder | Includes 28 - 40.

710000212

Unavailable

36

Male Terminal

409004300

$5.30

37

Fuse Box

710000213

Unavailable

38

Female Terminal

409007300

$0.42

39

Female Housing, 1 Circuit

278000161

$8.72

40

Wire Seal

278000218

$4.00

Wire Seal

710000048

$5.85

41

Open Barrel Terminal

278001392

$4.00

42

Tubing 6 Mm 3000Mm Long

219704425

$12.75

43

Fuse, 30 Amperes

410917200

$3.12

44

Fuse, 20 Amperes

409003900

$3.12

45

Female Housing, 5 Circuit

710000106

Unavailable

46

Fuse, 15 Amperes

278000343

$3.12

47

Ens Fil Bougie *Wire-Spark Kit | Includes 54 to 57

703500744

$59.67

48

Spark Plug Connector

420265248

$30.57

49

Tie Wrap 94 mm | 4X4

293750001

$0.96

50

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

51

*(Ormd) *Deoxit Aerosol *

293550034

$38.99

52

Hex. Screw M6 X 25

207162544

$1.01

53

External Serrated Lock Washer 6 mm

234461608

$1.06

54

Hex. Nut M6

232061414

$0.51

55

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

56

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

57

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

58

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

59

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

60

Male Terminal Housing, 26 Circuits

278001062

Unavailable

61

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

62

MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership

278001063

Unavailable

63

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

64

Male Housing, 3 Circuits

278000997

$17.88

65

Wire Seal

278000999

$2.93

66

Female Terminal

278000998

$4.00

67

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

68

Female Terminal

409007300

$0.42

69

Wire Seal

710000048

$5.85

70

Female Terminal

409010300

$4.00

71

MALE HOUSING, 5 CIRCUITS - Call your local BRP dealership

710000107

Unavailable

72

Male Terminal

409004300

$5.30

73

Wire Seal

278000218

$4.00

74

Wire Seal

710000048

$5.85

75

Ground Cable Battery, no 6, meter)

278001680

Unavailable

Ground Cable Battery, No. 4, Meter

278001681

Unavailable

76

Cable Battery, no 6, meter)

278001690

Unavailable

Red Cable Battery/Starter (no. 4) (Meter

278001691

Unavailable

77

Terminal 45°, Small Hole

278001682

Unavailable

TERMINAL 45, SMALL HOLE - Call your local BRP dealership

278001683

Unavailable

TERMINAL 90, SMALL HOLE - Call your local BRP dealership

278001684

Unavailable

FLAT TERMINAL, BIG HOLE - Call your local BRP dealership

278001685

Unavailable

TERMINAL 45, BIG HOLE - Call your local BRP dealership

278001686

Unavailable

TERMINAL 90, BIG HOLE - Call your local BRP dealership

278001687

Unavailable

FLAT TERMINAL - Call your local BRP dealership

278001688

Unavailable
