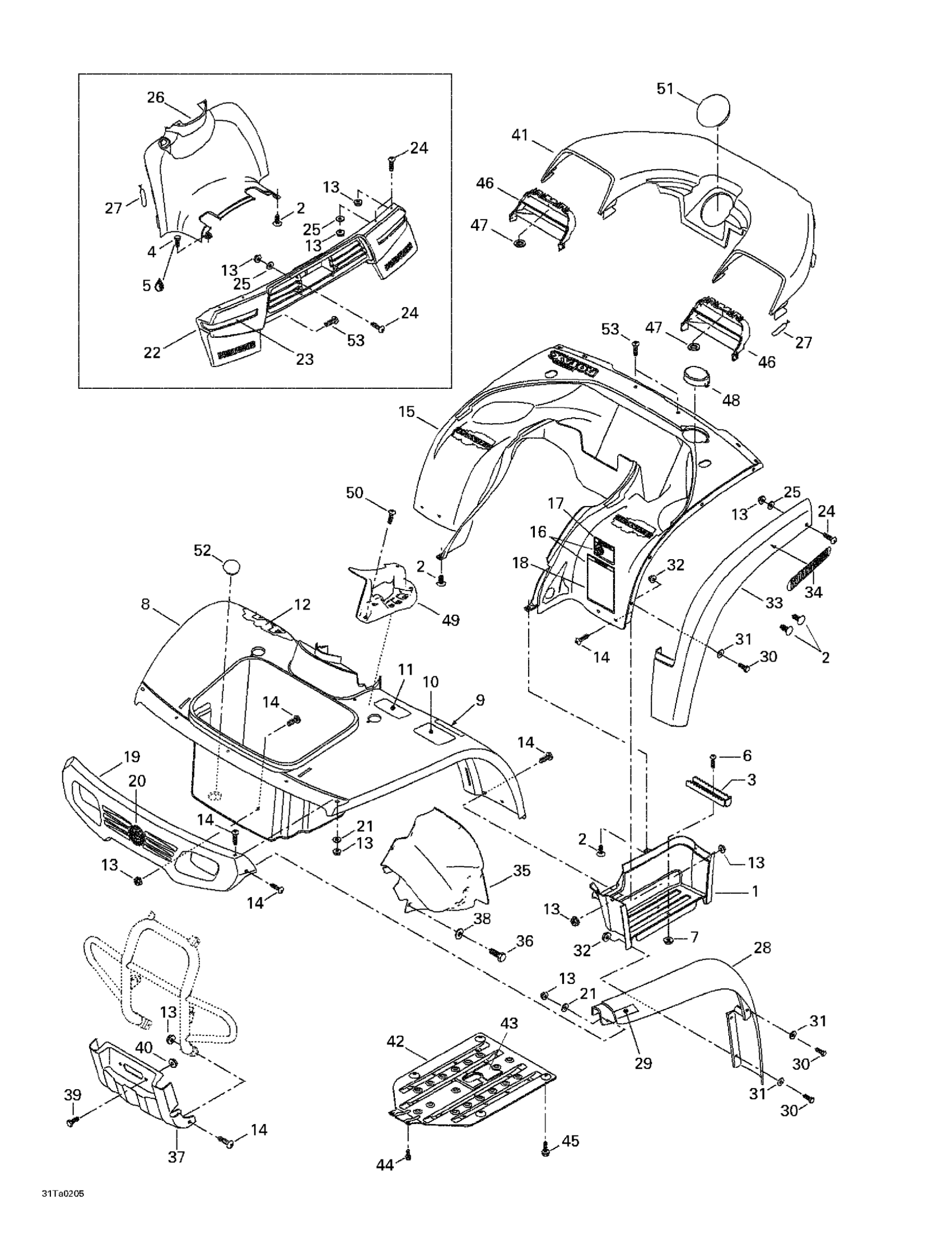

Can-Am Traxter Autoshift, 2002 Body And Accessories Diagram

#

Description
Price

1

RH Footboard, Black

705000017

Unavailable

LH FOOTBOARD, BLACK - Call your local BRP dealership

705000018

$25.35

2

Black, Dart

293730011

Unavailable

3

Foot Pegs | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)

705000279

Unavailable

4

Hex. Flange Screw M6 X 12

207661244

Unavailable

5

Loctite 243, 10 ml

293800060

$20.77

6

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

8

Front Fender, Yellow | Includes 8 - 11.

703500137

Unavailable

Front Fender Kit (Red) | Includes 8 - 11. (Red 7459 - 7465) Traxter.

703500136

Unavailable

Front Fender Kit | (Green 7460 - 7466) Traxter.

703500138

Unavailable

9

Warning Label | Includes 9 - 10.

704900034

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

Warning Decal, Death And Injuries

704900002

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

Warning Decal, Under 16 Years Old | French Version

704900012

Unavailable

11

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

Caution Decal, Transmission Selector | French version

704900008

Unavailable

12

RH Rear Label (Red) | 7400/7401. 7413/7414. 7415/7416.

704900028

Unavailable

Front Label RH | 7417/7418.

704900068

Unavailable

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

14

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

15

Rear Fender Kit (Red) (English)

703500113

Unavailable

Rear Fender Kit (Green) (English)

703500114

Unavailable

Rear Fender, Yellow

703500112

Unavailable

16

Warning Label Ass'y | (Rear Left Fender)

704900116

Unavailable

17

Warning Decal, Passenger, French | French Version

704900006

Unavailable

WARNING DECAL, PASSENGER - Call your local BRP dealership

704900005

Unavailable

18

Warning Label, Tire Pressure | (Tire Pressure) (French)

704900120

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

19

Front Fascia Ass'y, black | Includes 21 To 22

703500011

Unavailable

20

BRP Logo 68mm

516008739

$12.87

21

Flat Washer

224060201

Unavailable

22

REAR FASCIA ASS'Y, BLACK - Call your local BRP dealership | Includes 12 To 14

703500012

$249.97

23

RH Rear Reflector

704900085

Unavailable

LH Rear Reflector

704900086

Unavailable

24

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

25

Flat Washer

224060201

Unavailable

26

Tank Cover

705000010

Unavailable

27

Windshield Latch

570023800

Unavailable

28

LH Front Mudguard Kit | Includes 35 - 36.

703500014

Unavailable

RH Front Mudguard Kit

703500015

Unavailable

29

LH FRONT REFLECTOR - Call your local BRP dealership

705000083

$8.43

RH FRONT REFLECTOR - Call your local BRP dealership

705000026

Unavailable

30

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

31

Flat Washer

224060201

Unavailable

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

33

LH Rear Mudguard | Includes 40 - 41.

703500016

Unavailable

RH Rear Mudguard

703500017

Unavailable

34

Bombardier label | 7400/7401. 7413/7414.

704900026

Unavailable

35

LH TANK PROTECTOR - Call your local BRP dealership

705000133

$21.51

RH TANK PROTECTOR - Call your local BRP dealership

705000134

$21.51

36

Hex. Flange Screw M6 X 16

210261650

$1.22

37

Front Protection Plate, black

705000135

Unavailable

38

Flat Washer

224061201

Unavailable

39

Hex. Flange Screw M10 X 25

207602544

Unavailable

40

Hex. Flange Elastic Nut M10

233201414

$1.26

41

Fender Cover (Red) | 7405/7406.

705000192

Unavailable

Fender cover | 7407/7408.

705000193

Unavailable

Fender Cover, Yellow | Yellow

705000179

Unavailable

42

Plate Ass'y | Includes 48 - 49.

705000196

Unavailable

43

Rubber Protector

293830084

Unavailable

44

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

45

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

46

LH Grill, Black

705000180

Unavailable

RH Grill, Black

705000181

Unavailable

47

PUSH NUT - Call your local BRP dealership

250100000

$0.43

48

COVER, BLACK - Call your local BRP dealership

705000132

$6.12

49

Lever Indicator

705000081

Unavailable

50

Tuflock Phillips Plastic Screw

414745900

$1.30

51

CAP - Call your local BRP dealership

705000207

$7.66

52

Rubber Cover

570041600

Unavailable

53

PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership

732600009

Unavailable
