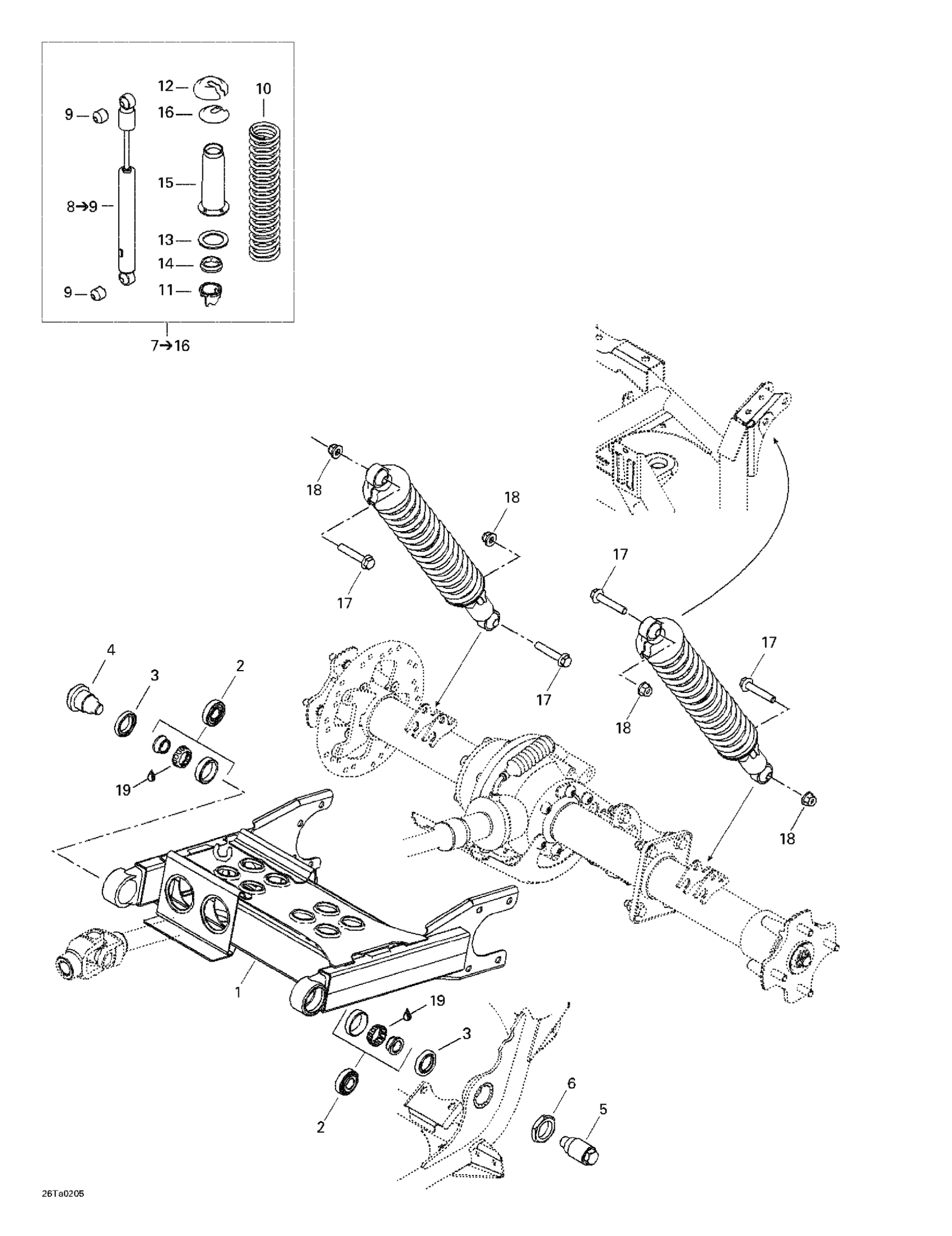

Can-Am Traxter Autoshift, 2002 Rear Suspension Diagram

#

Description
Price

1

Swing Arm

706000106

$286.89

2

CONE BEARING - Call your local BRP dealership

706000009

$27.66

3

OIL SEAL - Call your local BRP dealership

706000010

Unavailable

4

RH Pivot Bolt

706000092

Unavailable

5

LH PIVOT BOLT - Call your local BRP dealership

706000093

$33.05

6

HEX. JAM NUT - Call your local BRP dealership

706000006

$13.05

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Rear Shock | Includes 11 - 12.

706000124

Unavailable

9

UPPER BUSHING - Call your local BRP dealership

706000146

$10.74

10

REAR SPRING - Call your local BRP dealership | 7415/7416. 7417/7418.

706000068

$52.28

11

ADJUSTER RING - Call your local BRP dealership

706000073

$13.05

12

Spring Stopper

706200881

$10.30

13

SPRING SEAT - Call your local BRP dealership

706000533

$9.74

14

Spring seat

706000007

Unavailable

15

Protector

706000032

Unavailable

16

Cap

706200785

Unavailable

17

Hex. Flange Screw M10 X 55

207605544

Unavailable

18

Hex. Flange Elastic Nut M10

233201414

$1.26

19

Synthetic Grease, 400 G

293550010

Unavailable
