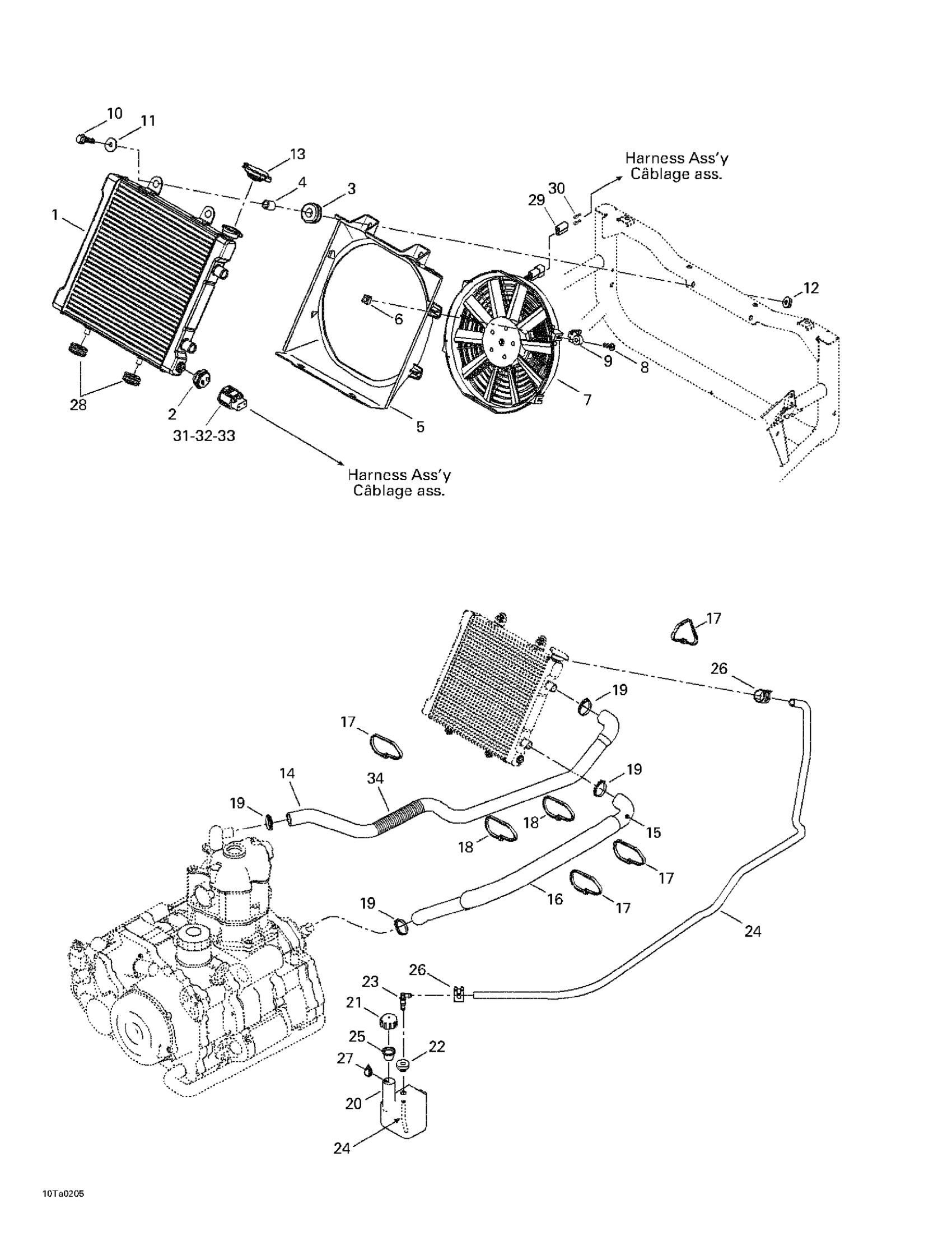

Can-Am Traxter Autoshift, 2002 Cooling System Diagram

#

Description
Price

1

Radiator Ass'y | Includes 1 - 2.

709200056

Unavailable

2

Temperature Sensor

715900095

$64.90

3

Grommet

709000582

$4.25

4

Bushing

293900019

$7.21

5

Outlet shroud

709200013

Unavailable

6

Square Nut M6

232862412

$1.36

7

Fan ass'y

709200004

Unavailable

8

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

9

Fan Support

709200017

Unavailable

10

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

11

Flat Washer

250200082

$0.40

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

13

Radiator Pressure Cap

709200207

$21.61

14

RADIATOR INLET HOSE - Call your local BRP dealership

709200060

Unavailable

15

OUTLET HOSE - Call your local BRP dealership

709200043

Unavailable

16

PROTECTION SHIELD - Call your local BRP dealership

709200032

Unavailable

17

Tie-Rap 180 mm

414115200

$0.10

18

Tie Wrap 368 mm

293750008

$0.97

19

Norma Spring Clamp

293650109

$3.88

20

COOLANT TANK - Call your local BRP dealership

709200099

Unavailable

21

TANK CAP - Call your local BRP dealership

709200009

Unavailable

22

Grommet

709200285

$8.13

23

Elbow Male Connector

414580600

$4.01

24

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

25

PROTECTION CAP - Call your local BRP dealership

709200205

Unavailable

26

Spring Clamp

414554800

$0.81

27

ANTIFREEZE BOTTLE12X1 - Call your local BRP dealership

219700362

Unavailable

28

Grommet

709000582

$4.25

29

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

30

Female Terminal

561503100

Unavailable

31

Female Terminal

409012100

$4.28

32

Seal

409012300

$4.25

33

HOUSING-TAB - Call your local BRP dealership

710000078

Unavailable

34

PROTECTION SHIELD - Call your local BRP dealership

709200031

Unavailable
