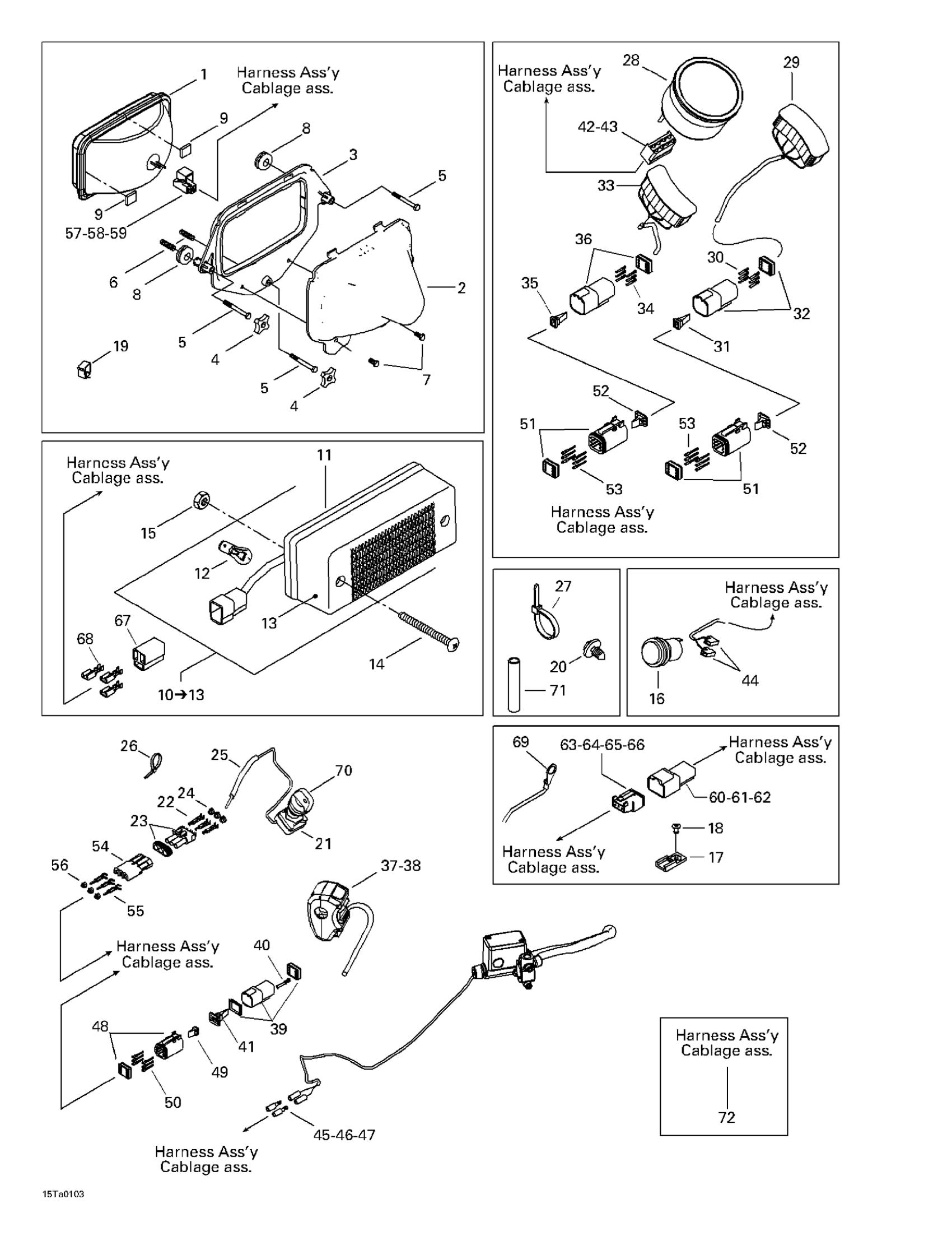

Can-Am Traxter Autoshift, 2001 Main Harness And Electrical Accessories Diagram

#

Description
Price

1

HEADLAMP - Call your local BRP dealership

710000001

Unavailable

2

Protector

705000023

$22.28

3

Headlamp Support

705000182

Unavailable

4

Handle

572106600

$9.31

5

HEX. SCREW K40 X 40 - Call your local BRP dealership

250000008

$1.09

6

Spring

517168600

$6.91

7

PHILLIPS SCREW K40 X 10 - Call your local BRP dealership

241641040

$0.49

8

Grommet

709000582

$4.38

9

Rubber Pad

293830088

Unavailable

10

Tail Light Housing

710000102

Unavailable

11

TAIL LIGHT LENS, RED - Call your local BRP dealership

710000055

Unavailable

12

Bulb

520000758

$7.49

13

GASKET - Call your local BRP dealership

710000129

$8.43

14

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

$0.91

15

Hex. Flange Elastic Nut M5

233251414

$1.66

16

Outlet Power Kit, 12 Volts

861507200

$30.52

17

Clip

270000141

$8.33

18

Pop Rivet 3/16"

390402400

$0.25

19

Clip

414227300

$1.45

20

Mount Dart

293730040

$0.86

21

Ignition Switch Ass'y | Includes 24 - 27.

710000042

Unavailable

22

Female Terminal

278000223

$2.55

23

Male Housing, 3 Circuits

278000273

$7.59

24

Wire Seal

278000218

$3.48

25

Protector Tube

710000171

Unavailable

26

Tie Wrap 142 mm

293750002

$0.88

27

Tie Wrap 142 mm

293750002

$0.88

27

Tie Wrap 368 mm

293750008

$0.85

27

Tie-Rap 180 mm

414115200

$0.09

28

Speedometer (MPH) (US)

710000021

Unavailable

28

Speedometer (KM/H)

710000037

Unavailable

29

RH Warning Lamp | Includes 29 - 32.

710000089

Unavailable

30

MALE TERMINAL - Call your local BRP dealership

409014800

$3.14

31

Male Lock, 6 Circuits

409014600

Unavailable

32

Male Terminal Housing, 6 Circuits

409015200

Unavailable

33

LH Warning Lamp

710000008

Unavailable

34

MALE TERMINAL - Call your local BRP dealership

409014800

$3.14

35

Male Lock, 6 Circuits

409014600

Unavailable

36

Male Terminal Housing, 6 Circuits

409015200

Unavailable

37

Multi-function Switch Ass'y | Includes 26 to 30

710000088

Unavailable

38

BACK COVER - Call your local BRP dealership

710000173

$26.89

39

Male Terminal Housing, 6 Circuits

409015200

Unavailable

40

MALE TERMINAL - Call your local BRP dealership

409014800

$3.14

41

Male Lock, 6 Circuits

409014600

Unavailable

42

Female Housing (8 Circuits)

710000035

Unavailable

43

Female Terminal

710000036

$4.68

44

Female Terminal

710000038

$4.60

45

Insulated Sheath

278001007

$3.22

46

Insulated Sheath

278000770

$7.60

47

Female Terminal | DS 650 X

278001009

$2.55

47

Female Terminal

710000082

$6.03

48

FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

409015400

$9.48

49

FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership

409014900

$3.05

50

FEMALE TERMINAL - Call your local BRP dealership

409015100

$3.97

51

FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

409015400

$9.48

52

FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership

409014900

$3.05

53

FEMALE TERMINAL - Call your local BRP dealership

409015100

$3.97

54

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

55

Male Terminal

409004300

$5.46

56

Wire Seal

278000218

$3.48

57

Female Terminal

710000027

Unavailable

58

Female Lock, 2 Circuits

710000028

Unavailable

59

FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

710000026

$8.43

60

MALE HOUSING, 3 CIRCUITS - Call your local BRP dealership

710000044

$23.51

61

MALE LOCK, 3 CIRCUITS - Call your local BRP dealership

710000043

$5.46

62

MALE TERMINAL - Call your local BRP dealership

409014800

$3.14

63

FEMALE TERMINAL HOUSING, 3 CIRC. - Call your local BRP dealership

515175249

$13.82

64

Female Lock, 3 Circuits

515175248

Unavailable

65

PLUG - Call your local BRP dealership

515175303

$4.58

66

FEMALE TERMINAL - Call your local BRP dealership

409015100

$3.97

67

Female Housing

409204300

Unavailable

68

Female Terminal

561503100

Unavailable

69

Open Barrel Terminal

278001392

$4.12

70

BLANK KEY (B TYPE) - Call your local BRP dealership

710000101

$15.35

70

BLANK KEY (A TYPE) - Call your local BRP dealership

710000137

Unavailable

71

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$19.20

71

Tubing 6 Mm 3000Mm Long

219704425

$13.14

71

Was 409901700 Tubing (9 mm)

219704399

$79.97

71

Was 409901800 Tubing (13 mm)

219704400

$9.40

71

Tubing 16 Mm 1000Mm Long

219704408

$6.23

71

Was 409901600 Tubing 19mm

219704398

$89.97

72

Harness Ass'y (Not Shown)

710000152

Unavailable
