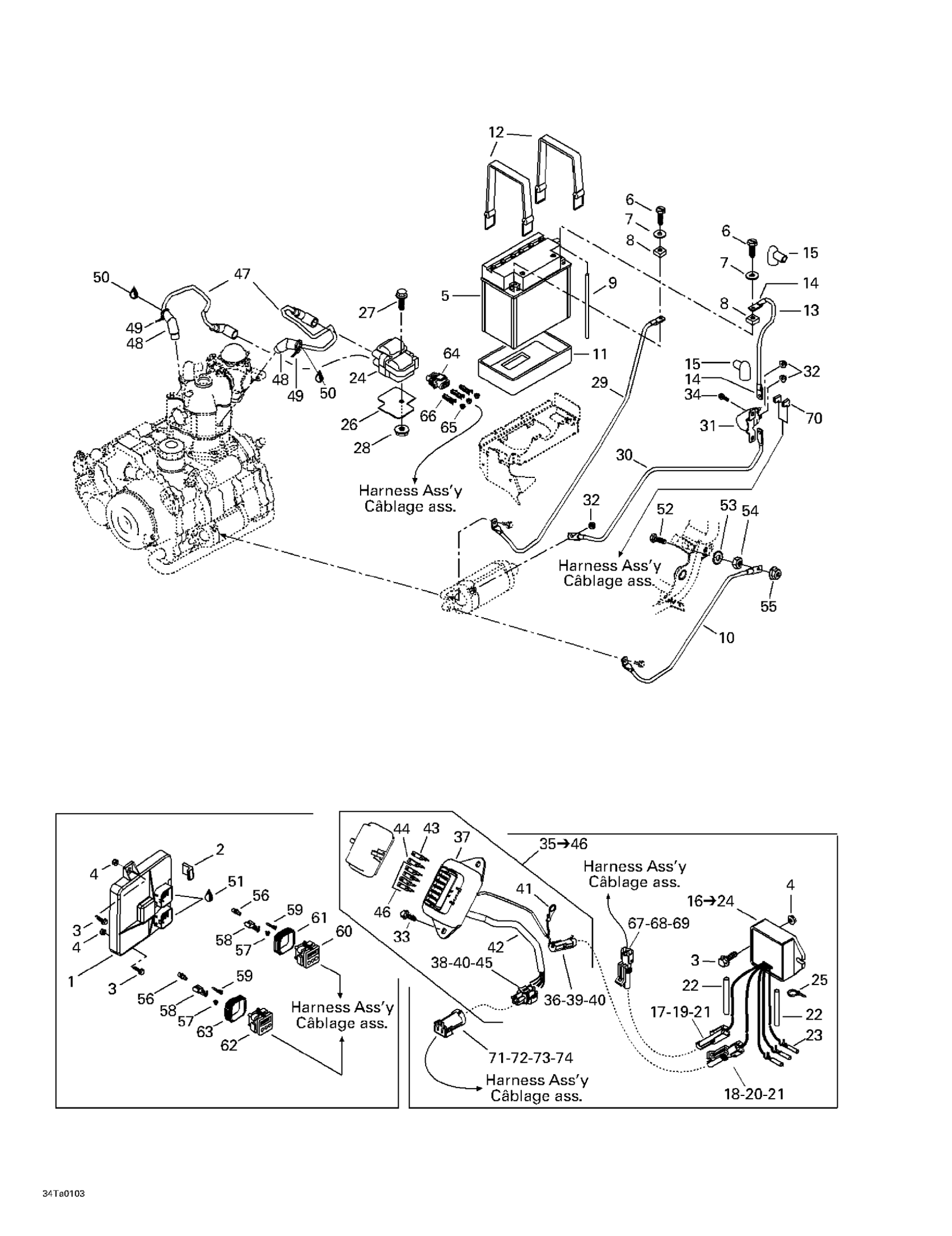

Can-Am Traxter Autoshift, 2001 Battery And Electrical Accessories Diagram

#

Description
Price

1

ELECTRONIC MODULE - Call your local BRP dealership

710000147

Unavailable

2

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

3

Hex. Flange Screw M6 X 20

207662044

$1.66

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

5

Battery 19A | Includes 5 to 8

278001756

$162.45

6

Hex. Screw M6 X 16

207161644

$0.61

7

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

8

Hex. Nut M6

232061414

$0.44

9

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

10

Battery Ground Cable

710000022

Unavailable

11

Battery Lower Pad

278001234

Unavailable

12

Retainer Strap

293850097

$9.26

13

Cable Battery, no 6, meter)

278001690

Unavailable

14

FLAT TERMINAL, BIG HOLE - Call your local BRP dealership

278001685

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

VOLT REGULATOR ASS'Y - Call your local BRP dealership | Includes 18 to 26

710000100

Unavailable

17

Male Terminal | XT Models

278000222

$2.55

18

Female Terminal

278000223

$2.55

19

Female Housing, 1 Circuit

278000161

$8.98

20

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

21

Wire Seal

278000218

$3.48

22

LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership

409901300

Unavailable

23

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

24

Ignition Coil

278001546

$129.32

25

Tie Wrap 94 mm | 4X4

293750001

$0.83

26

Insulator Pad

710000073

$11.06

27

Hex. Flange Screw M6 X 50

207665044

$3.38

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

29

Ground Cable

710000023

Unavailable

30

STARTER POSITIVE CABLE - Call your local BRP dealership

710000136

Unavailable

31

Starter Relay

515176011

$51.97

32

Hex. Elastic Stop Nut M6

232561600

$0.92

33

Hex. Flange Screw M6 X 16

210261650

$1.22

34

Screw Hex. M6.3 x 19

210661940

Unavailable

35

Fuse Holder | Includes 27 - 38.

710000092

$102.28

36

Male Terminal

409004300

$5.46

37

Fuse Box

710000029

Unavailable

38

Female Terminal

409007300

$0.36

39

Female Housing, 1 Circuit

278000161

$8.98

40

Wire Seal

278000218

$3.48

Wire Seal

710000048

$5.10

41

Open Barrel Terminal

278001392

$4.12

42

Tubing 6 Mm 3000Mm Long

219704425

$13.14

43

Fuse, 30 Amperes

410917200

$3.22

44

Fuse, 20 Amperes

409003900

$3.22

45

Female Housing, 5 Circuit

710000106

Unavailable

46

Fuse, 15 Amperes

278000343

$2.72

47

Ens Fil Bougie *Wire-Spark Kit | Includes 54 to 57

703500744

$64.58

48

Spark Plug Connector

420265248

$31.51

49

Tie Wrap 94 mm | 4X4

293750001

$0.83

50

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

51

*(Ormd) *Deoxit Aerosol *

293550034

$38.99

52

Hex. Screw M6 X 25

207162544

$1.05

53

External Serrated Lock Washer 6 mm

234461608

$0.92

54

Hex. Nut M6

232061414

$0.44

55

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

56

SEALING CAP - Call your local BRP dealership

293000070

$4.58

57

WIRE SEAL - Call your local BRP dealership

278000996

$2.37

58

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

59

FEMALE TERMINAL - Call your local BRP dealership

278000995

$4.58

60

Male Terminal Housing, 26 Circuits

278001062

Unavailable

61

WIRE SEAL - Call your local BRP dealership

278001307

$11.51

62

MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership

278001063

$32.28

63

WIRE SEAL - Call your local BRP dealership

278001307

$11.51

64

Male Housing, 3 Circuits

278000997

$15.57

65

Wire Seal

278000999

$2.55

66

Female Terminal

278000998

$3.48

67

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

68

Female Terminal

409007300

$0.36

69

Wire Seal

710000048

$5.10

70

Female Terminal

409010300

$4.12

71

MALE HOUSING, 5 CIRCUITS - Call your local BRP dealership

710000107

$8.43

72

Male Terminal

409004300

$5.46

73

Wire Seal

278000218

$3.48

74

Wire Seal

710000048

$5.10
