Description

Price

1

Swing Arm Kit

703500023

Unavailable

2

CONE BEARING - Call your local BRP dealership

706000009

$27.66

3

OIL SEAL - Call your local BRP dealership

706000010

Unavailable

4

RH Pivot Bolt

706000092

Unavailable

5

LH PIVOT BOLT - Call your local BRP dealership

706000093

$33.05

6

HEX. JAM NUT - Call your local BRP dealership

706000006

$13.05

7

Swing Arm Bellows

706000011

Unavailable

8

Norma Gear Clamp

293650090

$4.38

9

Norma Clamp

293650096

$3.09

10

Norma Clamp

514052924

$10.58

11

Rear Shock | Includes 11 - 12.

706000124

Unavailable

12

UPPER BUSHING - Call your local BRP dealership

706000146

$10.74

13

REAR SPRING - Call your local BRP dealership | 7415/7416. 7417/7418.

706000068

$52.28

14

ADJUSTER RING - Call your local BRP dealership

706000073

$13.05

15

Spring Stopper

706200881

$10.30

16

SPRING SEAT - Call your local BRP dealership

706000533

$9.74

17

Spring seat

706000007

Unavailable

18

Protector

706000032

Unavailable

19

Cap

706200785

$4.42

20

Hex. Flange Screw M10 X 55

207605544

$2.78

21

Hex. Flange Elastic Nut M10

233201414

$1.26

22

Synthetic Grease, 400 G

293550010

Unavailable

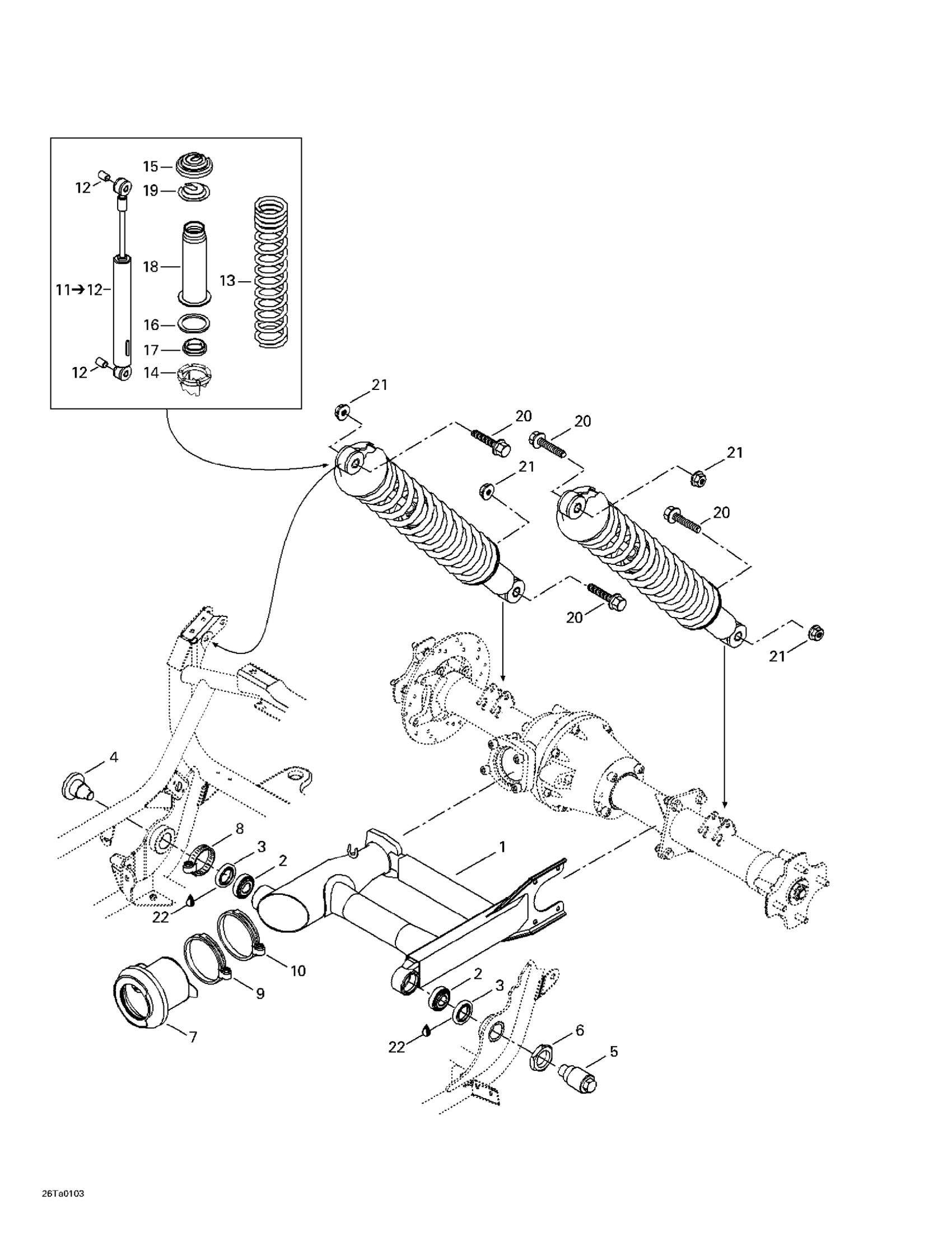

Can-Am Traxter Autoshift, 2001 Rear Suspension Diagram

Swing Arm Kit

OIL SEAL - Call your local BRP dealership

RH Pivot Bolt

Swing Arm Bellows

Rear Shock | Includes 11 - 12.

Spring seat

Protector

Synthetic Grease, 400 G
