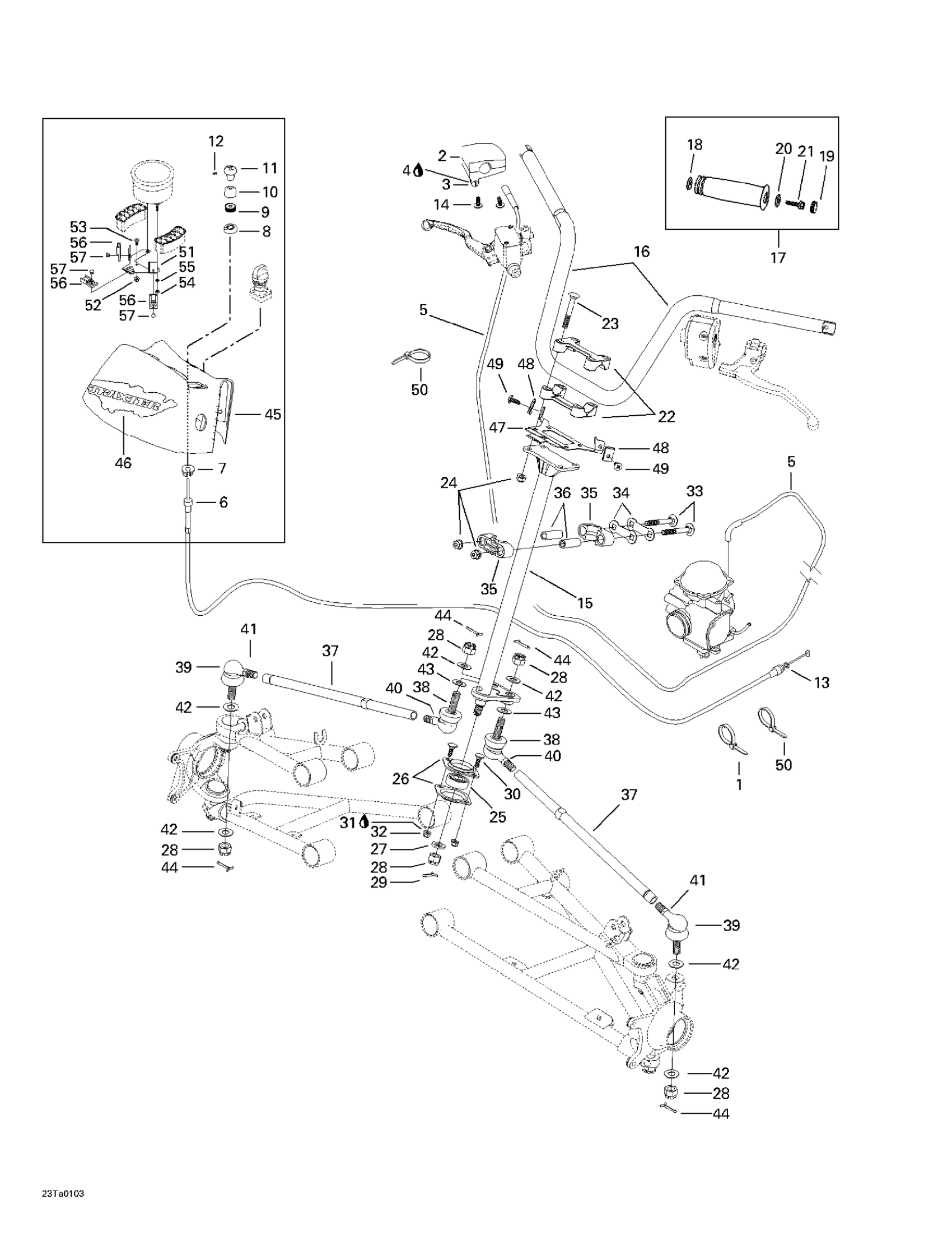

Can-Am Traxter Autoshift, 2001 Steering System Diagram

#

Description
Price

1

Tie-Rap 173 mm

293750009

$0.85

Tie Wrap 368 mm

293750008

$0.85

2

THROTTLE HANDLE - Call your local BRP dealership

709400016

Unavailable

3

SCREW-SET SOCKET DIN.913 - Call your local BRP dealership

250000017

Unavailable

4

Loctite BLACK/MAX Gel Tube, 20 g

293800061

Unavailable

5

THROTTLE CABLE - Call your local BRP dealership

707000097

Unavailable

6

CHOKE CABLE - Call your local BRP dealership

707000357

Unavailable

7

NUT-HEXAGONAL HI-LEX - Call your local BRP dealership

211100030

Unavailable

8

D SHAPE WASHER - Call your local BRP dealership

707000067

Unavailable

9

HOLDER CAP - Call your local BRP dealership

707000087

Unavailable

10

Rubber Cap

707000088

Unavailable

11

BUTTON - Call your local BRP dealership

707000089

Unavailable

12

Socket Head Screw M3x0.5

205030487

Unavailable

13

O-RING - Call your local BRP dealership

293300075

Unavailable

14

Screw M5 x 30

205353046

Unavailable

15

Main Tube, Black

709400089

Unavailable

16

Handlebar

709400005

Unavailable

17

HANDLE GRIP KIT, BLACK - Call your local BRP dealership

295500691

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Black, Cap

277000203

Unavailable

20

Flat Washer M6, Stainless

234062600

$0.64

21

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.75

22

Steering Clamp

709400028

Unavailable

23

CARRIAGE BOLT M8 X 65 - Call your local BRP dealership

207786544

Unavailable

24

Hex. Flange Elastic Nut M8

233281414

$1.14

25

Ball Bearing

709400439

$17.88

26

FLANGE, BEARING - Call your local BRP dealership

709400152

Unavailable

27

Flat Washer 12 mm

234021410

$0.66

28

Hex. Castellated Nut M12

232221414

$2.61

29

Cotter Pin

211400017

$0.25

30

Carriage Bolt M6 X 25

207762544

$1.39

31

Loctite 243, 10 ml

293800060

$20.77

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

33

Carriage Bolt M8 X 70

207787044

$1.11

34

Stopper Plate

506150600

$4.03

35

HALF-HOUSING - Call your local BRP dealership

709400034

Unavailable

36

Housing Bushing

506150500

$7.27

37

ROD-TIE ASS'Y - Call your local BRP dealership

709400489

Unavailable

38

RH Ball Joint

709402302

$34.30

39

LH Ball Joint

709402303

$34.30

40

Nut Hexagonal RH.

232026414

$1.43

41

LH HEX. JAM NUT M12 - Call your local BRP dealership

732610020

Unavailable

42

Hardened Washer

503175400

Unavailable

43

Washer

503189276

$3.10

44

Cotter Pin

211400013

$0.31

45

Steering cover (black) | Includes 28 - 9.

703500019

Unavailable

46

Steering Cover Label

704900024

Unavailable

47

Cover Support, Black | 7415/7416. 7417/7418.

709400077

Unavailable

48

Speednut M6

211100050

Unavailable

49

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

50

Tie-Rap 180 mm

414115200

$0.09

51

Housing Support, Black

710000159

Unavailable

52

Elastic Stop Nut M5

232551414

$0.72

53

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208651241

Unavailable

54

Nut

414303600

Unavailable

55

Lock Washer 4 mm

234141601

$1.06

56

Clip

270000141

$8.33

57

Pop Rivet 3/16"

390402400

$0.25
