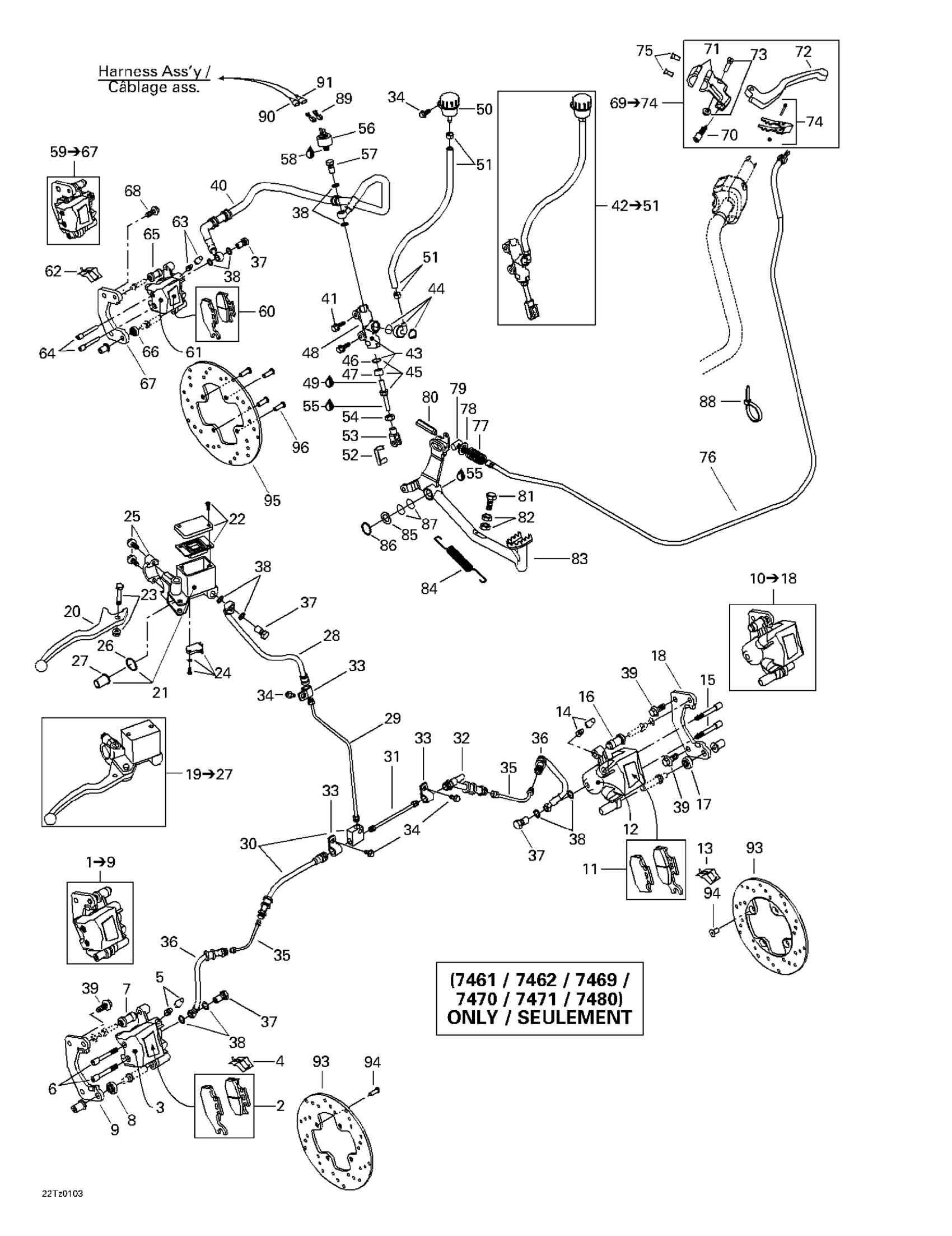

Can-Am Traxter Autoshift, 2001 Hydraulic Brake (7461 7462 Diagram

#

Description
Price

1

RH Caliper | Includes 1 To 9

705600118

Unavailable

2

Brake Pad Kit

705600004

$49.97

3

Piston Set

705600078

$36.89

4

Spring

705600079

$14.37

5

Bleeding Screw

705600080

$15.22

6

Pin Set (2)

705600081

$19.20

7

Compression Boot

705600082

$10.14

8

Compression Boot

705600083

$10.14

9

Lining Support

705600149

Unavailable

10

LH Caliper | Includes 10 To 18

705600119

Unavailable

11

Brake Pad Kit

705600014

$49.97

12

Piston Set

705600078

$36.89

13

Spring

705600079

$14.37

14

Bleeding Screw

705600080

$15.22

15

Pin Set (2)

705600081

$19.20

16

Compression Boot

705600082

$10.14

17

Compression Boot

705600083

$10.14

18

Lining Support

705600149

Unavailable

19

FRONT MASTER CYLINDER - Call your local BRP dealership | Includes 19 To 27

705600120

Unavailable

20

LEVER ARM - Call your local BRP dealership

705600164

Unavailable

21

PISTON KIT - Call your local BRP dealership

705600152

$59.97

22

Cap Set

705600084

$23.05

23

BOLT KIT - Call your local BRP dealership

705600085

$13.05

24

SWITCH KIT - Call your local BRP dealership

705600148

$62.28

25

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

26

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

27

COMPRESSION BOOT - Call your local BRP dealership

705600089

$9.74

28

HANDLE BRAKE HOSE - Call your local BRP dealership

705600165

Unavailable

29

Vertical tube

705600036

Unavailable

30

RH flexible hose

705600174

Unavailable

31

Horizontal tube

705600038

Unavailable

32

LH flexible hose

705600175

Unavailable

33

Hose Retainer 13 mm

705600232

$11.06

34

Hex. Flange Screw M6 X 16

210261650

$1.22

35

Rigid tube

705600176

Unavailable

36

BRAKE LINE - Call your local BRP dealership

705601394

$37.66

37

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

38

Washer

414920600

$1.52

39

Hex. Screw M10 X 20, Scotch Grip

250000057

$3.98

40

BRAKE LINE - Call your local BRP dealership

705601392

$66.89

41

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$1.74

42

Not Available As Spare Part - Friction Washer

Unavailable

43

Piston Set

705600063

Unavailable

44

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

45

Rod Ass'y | Includes 45 - 47.

705600155

Unavailable

46

Circlip

705600068

Unavailable

47

Compression Boot

705600090

Unavailable

48

Master Cylinder

705600117

$167.66

49

Not Available As Spare Part - Friction Washer

Unavailable

50

Oil Tank, Brake Fluid Reservoir

705600182

$36.89

51

OIL HOUSING HOSE - Call your local BRP dealership

705600169

$46.89

52

Pin Kit

219702305

$26.62

53

Yoke

705600100

Unavailable

54

Hex. Nut M8

232081414

$0.60

55

Synthetic Grease, 400 G

293550010

Unavailable

56

Interrupteur *Brake Switch

710001345

Unavailable

57

BANJO BOLT - Call your local BRP dealership

705600092

Unavailable

58

Was 293800013 Loctite 56765

219704454

$65.35

59

REAR CALIPER - Call your local BRP dealership | Includes 51 To 59

705600122

Unavailable

60

Brake Pad Kit

705600150

$49.97

61

Piston Set

705600078

$36.89

62

Spring

705600079

$14.37

63

Bleeding Screw

705600080

$15.22

64

Pin Set (2)

705600081

$19.20

65

Compression Boot

705600082

$10.14

66

Compression Boot

705600083

$10.14

67

Lining Support

705600149

Unavailable

68

Hex. Screw M10 X 14, Scotch Grip

250000163

$3.98

69

Brake Handle | Includes 61 To 66

705600011

Unavailable

70

Cable Screw

250000030

Unavailable

71

CLAMP KIT - Call your local BRP dealership

705600184

$65.35

72

LEVER - Call your local BRP dealership

705600186

$60.74

73

Pivot Kit

705600187

Unavailable

74

Lever Lock Kit

705600188

Unavailable

75

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

205351646

Unavailable

76

REAR BRAKE CABLE - Call your local BRP dealership

705600099

Unavailable

77

SPRING - Call your local BRP dealership

705600144

$4.58

78

FLAT WASHER - Call your local BRP dealership

705600145

$4.58

79

CABLE BARREL - Call your local BRP dealership

705600146

$10.74

80

NUT - Call your local BRP dealership

705600147

Unavailable

81

Hex. Screw M10 X 25

207102544

$1.11

82

Hex. Nut M10 X 1.5

232006414

$1.11

83

BRAKE PEDAL, BLACK - Call your local BRP dealership

705600125

$53.82

84

BRAKE PEDAL SPRING - Call your local BRP dealership

705600107

$18.43

85

WASHER - Call your local BRP dealership

503107800

$2.03

86

CIRCLIP - Call your local BRP dealership

293370012

$2.99

87

O-RING - Call your local BRP dealership

293300053

$5.35

88

Tie-Rap 180 mm

414115200

$0.09

89

Female Terminal | DS 650 X

278001009

$2.55

90

Insulated Sheath

278001007

$3.22

91

Insulated Sheath

278000770

$7.60

92

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

93

Brake Disk (Front) (7431 @ 7434)

705600003

Unavailable

Brake Disk 205 mm | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)

705600171

Unavailable

94

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

95

Brake Disk 220 mm (Rear)

705600033

Unavailable
