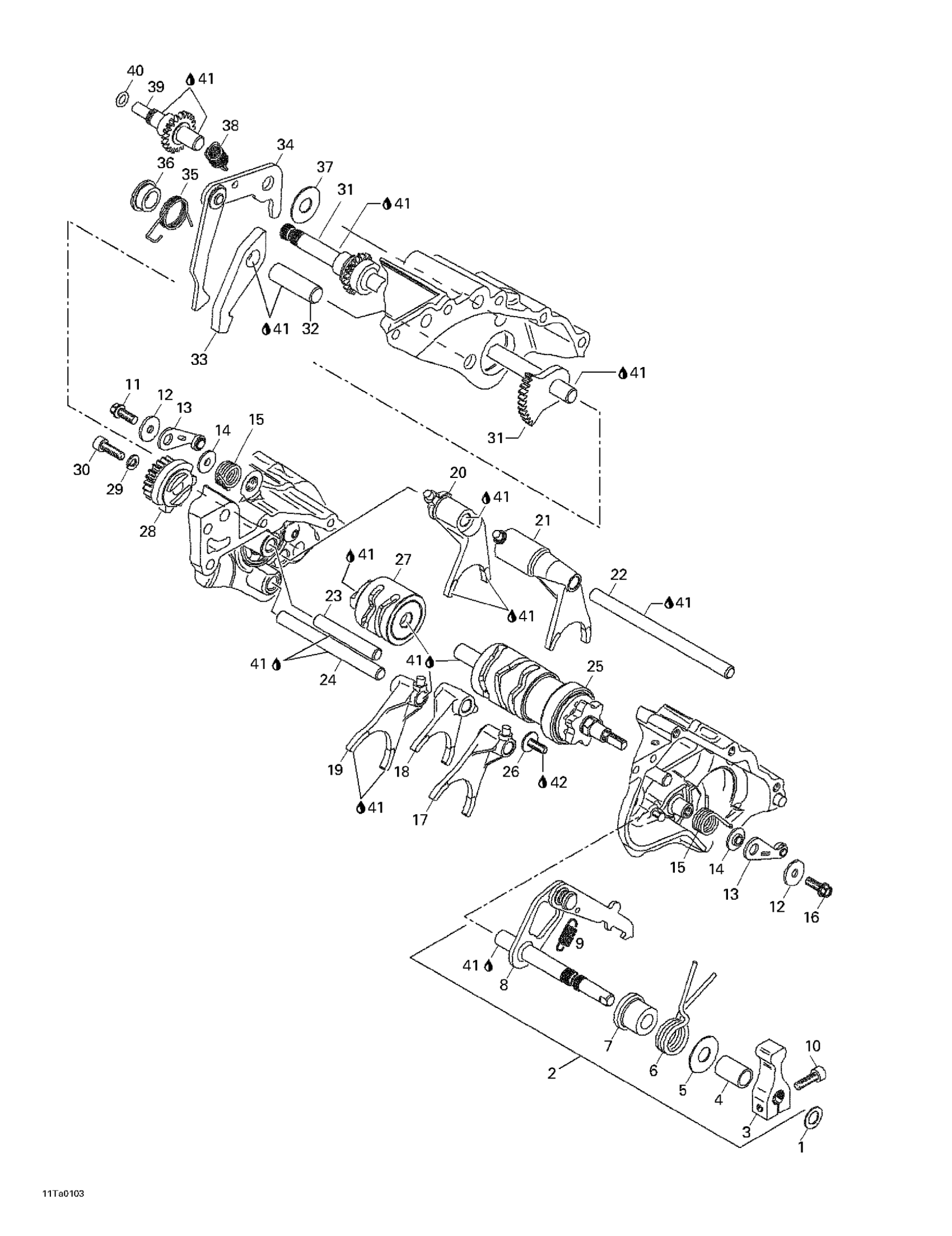

Can-Am Traxter Autoshift, 2001 Gear Shift Diagram

#

Description
Price

1

Thrust Washer

711627100

$4.58

2

Shift Shaft Ass'y | Includes 2 - 10.

711220537

$103.82

3

Gear Shift Lever

711257090

Unavailable

4

Distance Sleeve

711247020

Unavailable

5

THRUST WASHER - Call your local BRP dealership

420227980

$7.39

6

Shaft Spring

711239084

$103.82

7

Collar Sleeve

711247050

Unavailable

8

Shift Shaft with Pawl Ass'y

711220536

$103.82

9

Tension Spring

711239540

$9.97

10

Socket Head Screw M6 X 25

205062544

$0.88

11

Hex. Flange Screw M6 x 16

711241751

Unavailable

12

Washer

420227900

Unavailable

13

Index Lever Ass'y

711248326

Unavailable

14

BUSHING - Call your local BRP dealership

420227710

$8.43

15

Index Lever Spring

711239560

$6.89

16

Hex. Flange Screw M6 x 16

711241751

Unavailable

17

Shift Fork

711258400

Unavailable

18

Shift Fork

711258410

Unavailable

19

Shift Fork

711258390

Unavailable

20

Shift Fork

711258422

Unavailable

21

Shift Fork

711258432

Unavailable

22

Gear Shift Rod

711257080

Unavailable

23

Needle Pin

420229475

$12.29

24

Cylindrical Pin M10 x 100

711229480

Unavailable

25

Shift Drum Ass'y

711257107

Unavailable

26

Flat Head Screw M6 x 16

711241531

$10.74

27

Shift Drum

711257111

Unavailable

28

Index Gear

711257130

Unavailable

29

Lock Washer

711445331

Unavailable

30

Socket Head Screw M6 X 25

205062544

$0.88

31

Shift Shaft Ass'y

711220585

Unavailable

32

Shaft

711220600

$19.77

33

Park Locking Lever

711258621

$32.28

34

Actuating Lever

711258475

Unavailable

35

Helical Spring

711239550

$11.51

36

Collar Sleeve

711247040

$13.05

37

THRUST WASHER - Call your local BRP dealership

420227980

$7.39

38

Tension Spring

711239591

$12.28

39

Indicator Shaft

711220545

$70.74

40

O-Ring

420430800

$3.85

41

Not Available As Spare Part - Friction Washer

Unavailable

42

Loctite 243, 10 ml

293800060

$20.77
