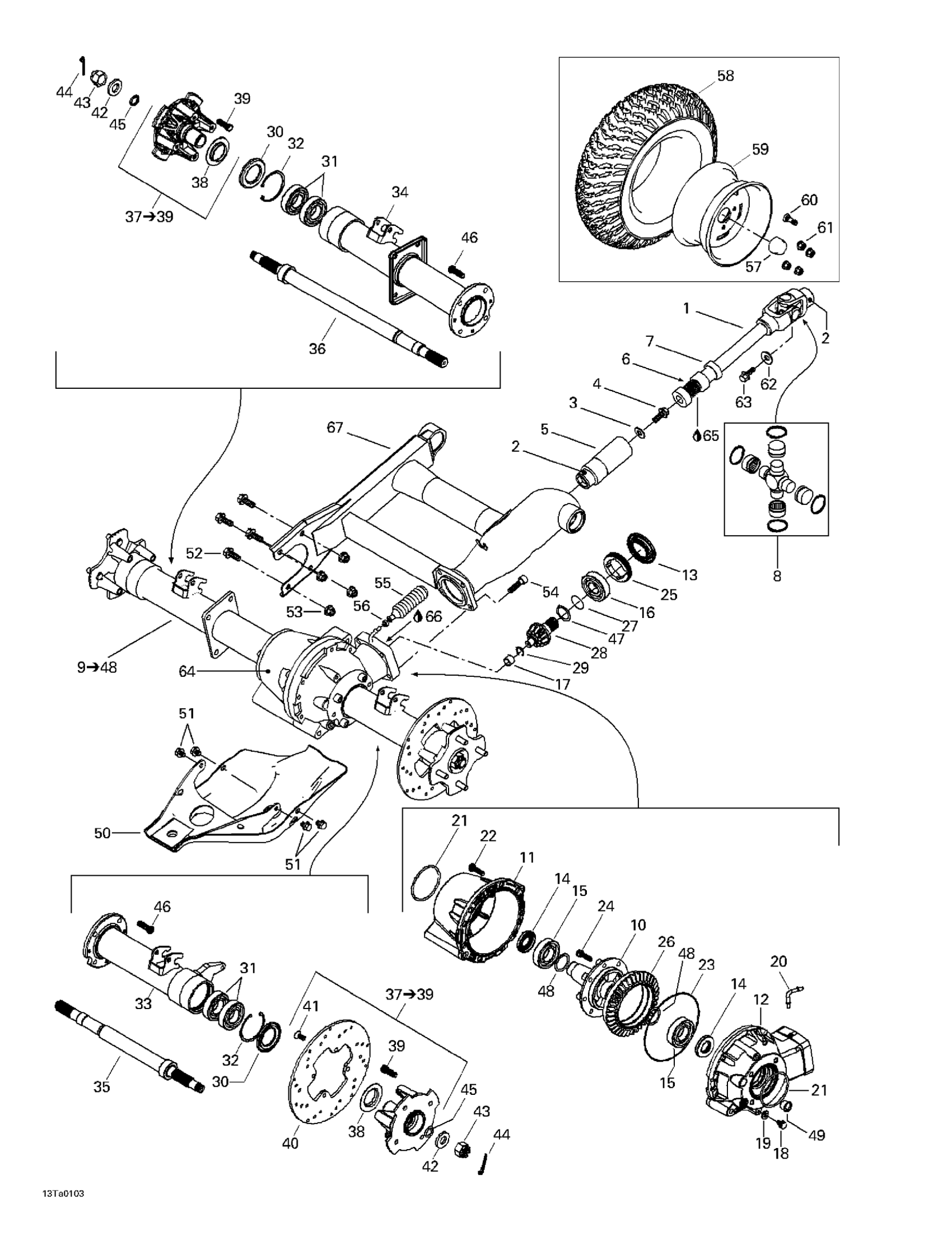

Can-Am Traxter Autoshift, 2001 Drive System, Rear Diagram

#

Description
Price

1

Rear Propeller Shaft Ass'y

703500007

Unavailable

2

Wear Ring | 4X4

705400036

$25.35

3

Flat Washer M10 | 4X4

250200014

$1.17

4

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.60

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Sealing Ring

705500097

Unavailable

8

Ens. Croix*U-Joint Cross Kit

715900325

$69.20

9

Rigid Axle Ass'y | Includes 9 - 48.

705500157

Unavailable

10

Propulsion Spool

705500159

Unavailable

11

Differential Cap

705500013

Unavailable

12

Differential Carrier

705500014

Unavailable

13

Oil Seal | 4X4

705401481

$18.43

14

Gasket | 4X4

705401618

$17.66

15

Ball Bearing | 4X4

705401606

$49.20

16

Ball Bearing

705500074

Unavailable

17

Needle Bearing

705500077

Unavailable

18

Drain Plug

705500093

Unavailable

19

SEAL RING - Call your local BRP dealership

705500299

Unavailable

20

Vent Valve

705500124

Unavailable

21

O RING - Call your local BRP dealership

705500078

$8.43

22

SCREW - Call your local BRP dealership

705500088

$8.43

23

Seal

705500091

Unavailable

24

RING GEAR SCREW - Call your local BRP dealership

705500090

$8.43

25

Nut | 4X4

705401603

$36.89

26

Gear (36 Teeth)

705500087

Unavailable

27

O-Ring

705500073

Unavailable

28

GEAR (10 TEETH) - Call your local BRP dealership

705500076

$212.28

29

Retaining Ring

705500102

Unavailable

30

OIL SEAL - Call your local BRP dealership

705500099

$13.82

31

Ball Bearing

705500084

$49.20

32

Retaining Ring

705500085

Unavailable

33

Axle Tube R.H

705500156

Unavailable

34

LH Axle Tube

705500209

Unavailable

35

RH Axle Ass'y

705500049

Unavailable

36

LH Axle Ass'y

705500050

Unavailable

37

Rear Wheel Hub Ass'y | Includes 58 - 9.

705500006

Unavailable

38

WEAR RING - Call your local BRP dealership

705500100

Unavailable

39

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

40

Brake Disk 220 mm (Rear)

705600033

Unavailable

41

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

42

WASHER - Call your local BRP dealership

250200019

$2.02

43

Hex. Flange Castellated Nut M18

232291413

$2.82

44

Cotter Pin

250400036

$1.74

45

O-Ring

293300052

Unavailable

46

Axle Tube Screw

705500149

Unavailable

47

Not Available As Spare Part - Friction Washer

Unavailable

Pinion Gear Shim 1.67 mm

705502061

$16.12

48

Not Available As Spare Part - Friction Washer

Unavailable

Shim | 4X4

705401604

$55.35

49

Filler/Level Plug | 7413/7414. 7415/7416. 7417/7418.

705500143

Unavailable

50

Rear Differential Protector

705000019

Unavailable

51

Flange Screw M8 x 10, Scotch Grip

207581046

$3.99

52

Hex. Flange Screw M10 X 25

207602544

$1.33

53

Hex. Flange Elastic Nut M10

233201414

$1.26

54

Socket Head Screw M10 x 25 (Scotch Grip)

205502544

Unavailable

55

Rubber Bellow | 4X4

705400552

$6.02

56

Tie Wrap 94 mm | 4X4

293750001

$0.83

57

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

58

Rear Tire

705500004

Unavailable

59

Rear Rim, Grey

705500239

Unavailable

60

Rim Valve With Cap

705400193

$6.69

61

HEX. NUT - Call your local BRP dealership

705400013

Unavailable

62

Washer

211200041

$2.63

63

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$1.74

64

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$13.62

65

Graisse *Grease

293550062

$15.35

66

Instant Gasket

219701421

$50.02

67

Swing Arm Kit

703500023

Unavailable
