Description

Price

1

Thrust Washer

711227390

$11.85

2

Needle Bearing

420632070

$23.05

3

Needle Cage

711232655

Unavailable

4

Clutch Drum

711659203

Unavailable

5

O-RING - Call your local BRP dealership

293300018

Unavailable

6

THRUST WASHER - Call your local BRP dealership

420227600

$9.91

7

Inner Plate

711659230

$55.35

8

Plate 1.5 mm

711259915

Unavailable

9

Lamella 3 mm

711259907

Unavailable

10

Clutch Hub

711259876

$89.97

11

Clutch Spring

711239741

$7.09

12

Tab Washer

711245320

Unavailable

13

Nut M18

711242605

Unavailable

14

Retaining Plate

420259131

$69.20

15

Hub Thrust ass'y with Ball Bearing

711259143

Unavailable

16

Lock Washer

420945750

Unavailable

17

Hex. Screw M5 x 25

711241770

$2.99

18

Thrust Washer

711427130

$7.66

19

Clutch Ass'y | Includes 20 - 23.

711296093

Unavailable

19

CLUTCH - Call your local BRP dealership | Includes 20 to 21

420659177

$485.99

20

Clutch Bushing

711233765

$29.97

21

Sprag Clutch

711659240

Unavailable

22

Clutch Hub

711659180

$659.97

23

Hex. Nut, M22 X 1.5

420842239

$14.27

24

Loctite 243, 10 ml

293800060

$20.77

25

Not Available As Spare Part - Friction Washer

Unavailable

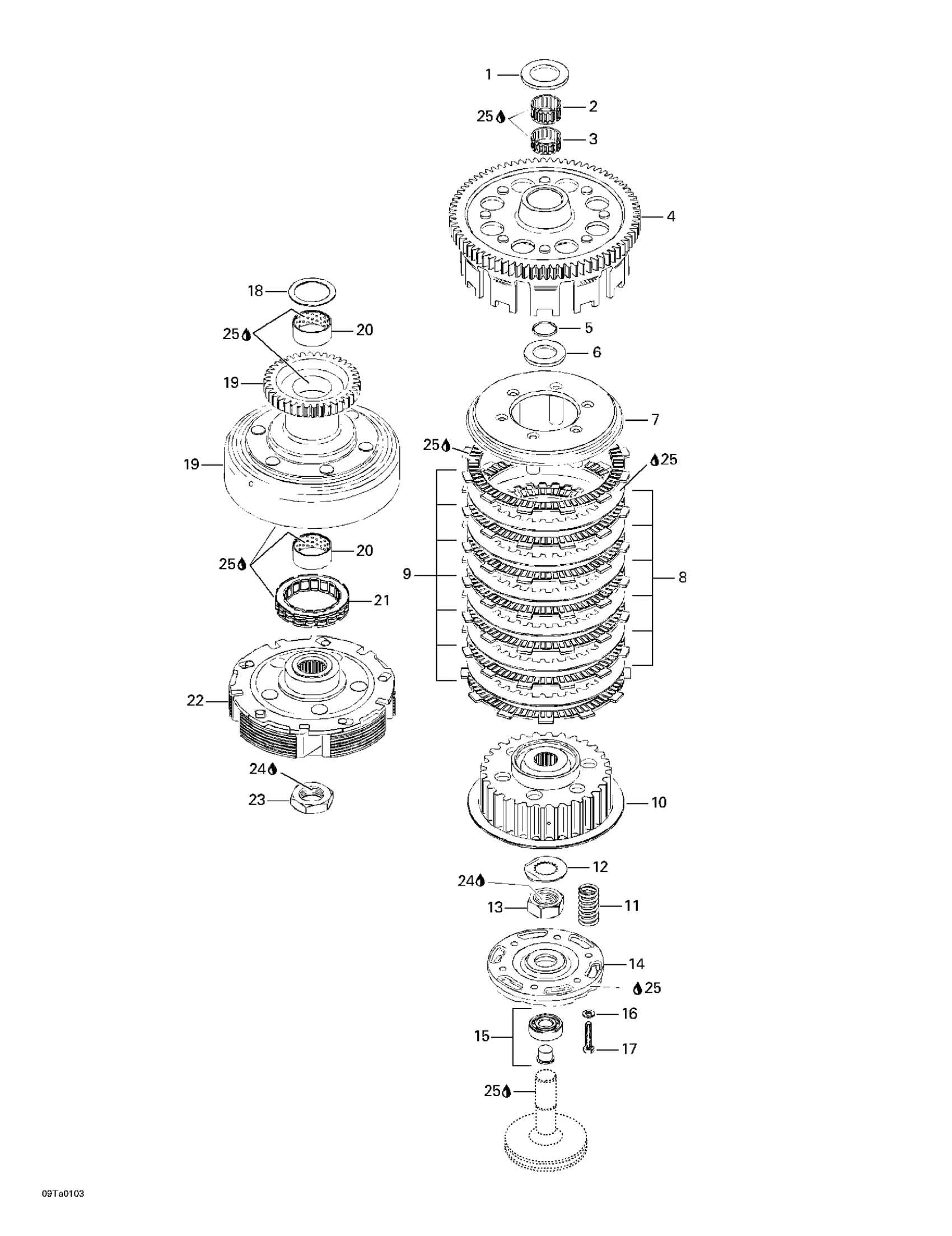

Can-Am Traxter Autoshift, 2001 Clutch Diagram

Needle Cage

Clutch Drum

O-RING - Call your local BRP dealership

Plate 1.5 mm

Lamella 3 mm

Tab Washer

Nut M18

Hub Thrust ass'y with Ball Bearing

Lock Washer

Clutch Ass'y | Includes 20 - 23.

Sprag Clutch

Not Available As Spare Part - Friction Washer
