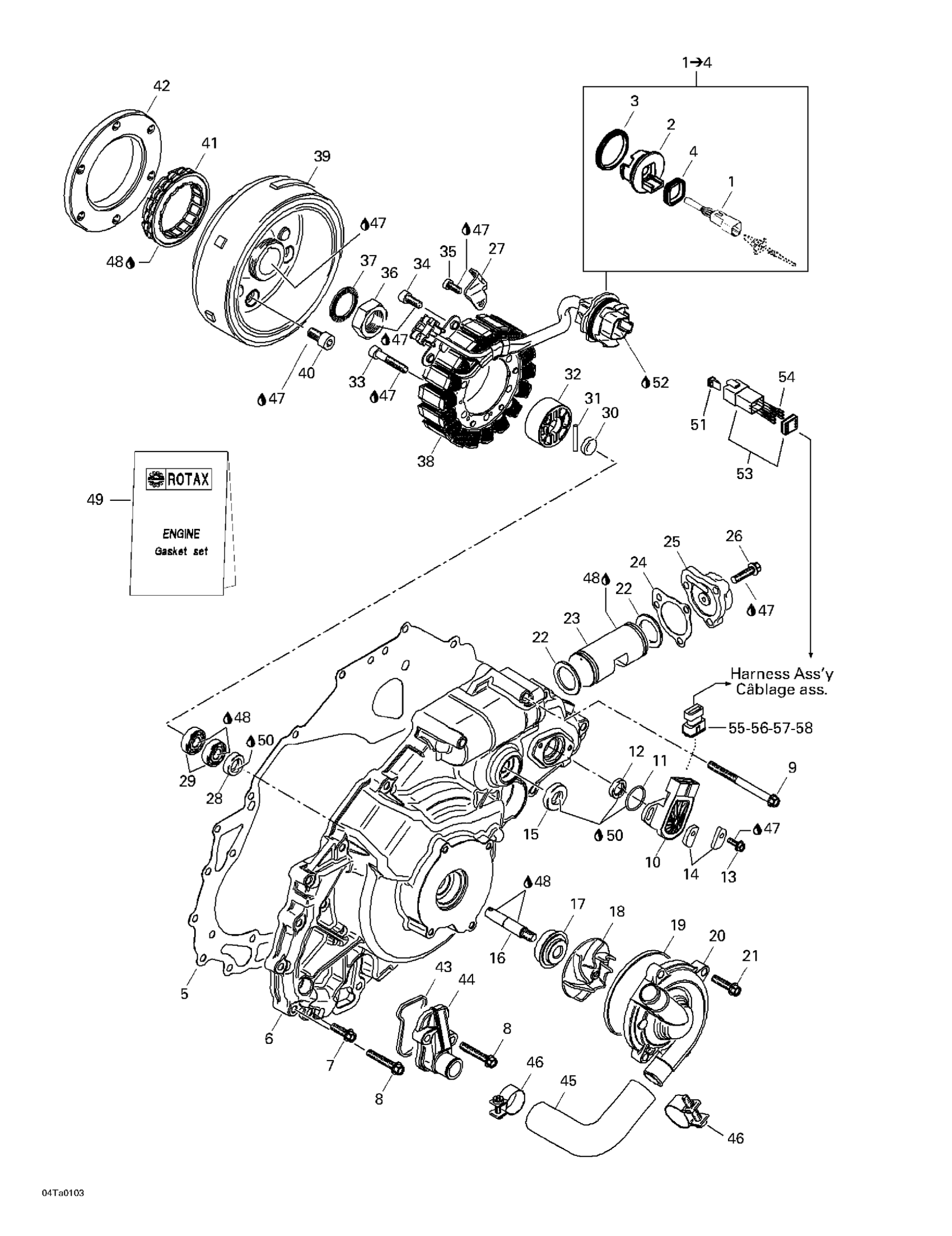

Can-Am Traxter Autoshift, 2001 Ignition And Water Pump Diagram

#

Description
Price

1

Adaptor Ass'y | Includes 3 to 7

707000031

Unavailable

1

Male Terminal Housing, 6 Circuits

710001539

$15.57

2

Adaptor

270000138

Unavailable

3

Gasket

293300033

Unavailable

4

Gasket

293200055`

Unavailable

5

Ignition Cover Gasket

711650603

Unavailable

6

Ignition Cover

711211821

$391.51

7

Hex. Flange Screw M6 x 20

711241861

$7.66

8

Hex. Flange Screw M6 x 35

711941126

$4.58

9

Hex. Flange Screw M6 x 70

711940576

Unavailable

10

POTENTIOMETER, TRANSMISSION - Call your local BRP dealership | Item 7 Not included

420265611

Unavailable

11

O Ring

711931390

$8.94

12

Oil Seal

711230870

Unavailable

13

SOCKET HEAD SCREW M4 X 12 - Call your local BRP dealership

420440291

$1.29

14

Reinforcement

711224630

$4.58

15

OIL SEAL - Call your local BRP dealership

420950400

$13.86

16

Water Pump Shaft

711220560

Unavailable

17

Rotary Seal

420650371

$35.72

18

Water Impeller

711222540

Unavailable

19

Rubber Ring

711650570

Unavailable

20

Water Pump Housing

711222550

$44.58

21

Hex. Screw M6 x 25

711241911

$4.58

22

K Grooved Ring

711650660

Unavailable

23

Hydraulic Piston

711257140

Unavailable

24

Hydraulic Cover Gasket

711650640

$7.66

25

Hydraulic Cover

711211950

$35.35

26

Hex. Screw M6 x 25

711241911

$4.58

27

Cable Clamp

711251180

Unavailable

28

Oil Seal

711250080

Unavailable

29

Ball Bearing

711632170

Unavailable

30

Distance Sleeve

711247030

$9.97

31

Needle Pin

711932885

$7.66

32

Pawl

711659190

Unavailable

33

Hex. Flange Screw M6 x 35

711941126

$4.58

34

Hex. Flange Screw M6 x 16

711241751

Unavailable

35

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

$1.61

36

Nut M22

711242875

Unavailable

37

Washer 22 mm

711245875

$10.74

38

Magneto Ass'y | Includes 38 - 42.

711296107

Unavailable

39

Not Available As Spare Part - Friction Washer

Unavailable

40

SOCKET HEAD SCREW M8 X 16 - Call your local BRP dealership

205081644

Unavailable

41

Sprag Clutch

420659117

Unavailable

42

Clutch Sprag Housing

420659129

$138.43

43

Sealing Ring

711650940

Unavailable

44

Inlet Fitting

711222620

$29.20

45

Profile Tube

711222630

Unavailable

46

Gear Clamp

711251222

Unavailable

47

Loctite 243, 10 ml

293800060

$20.77

48

Not Available As Spare Part - Friction Washer

Unavailable

49

Gasket Set Engine

711296372

Unavailable

50

Dow Corning 111, 150 g

413707000

$57.82

51

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

$2.48

52

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

53

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.97

54

Female Terminal

278000632

$1.69

55

Female Terminal Housing, 4 Circ.

710000032

Unavailable

56

Cap

710000049

Unavailable

57

WIRE SEAL - Call your local BRP dealership

710000050

$7.66

58

Female Terminal

710000051

Unavailable
