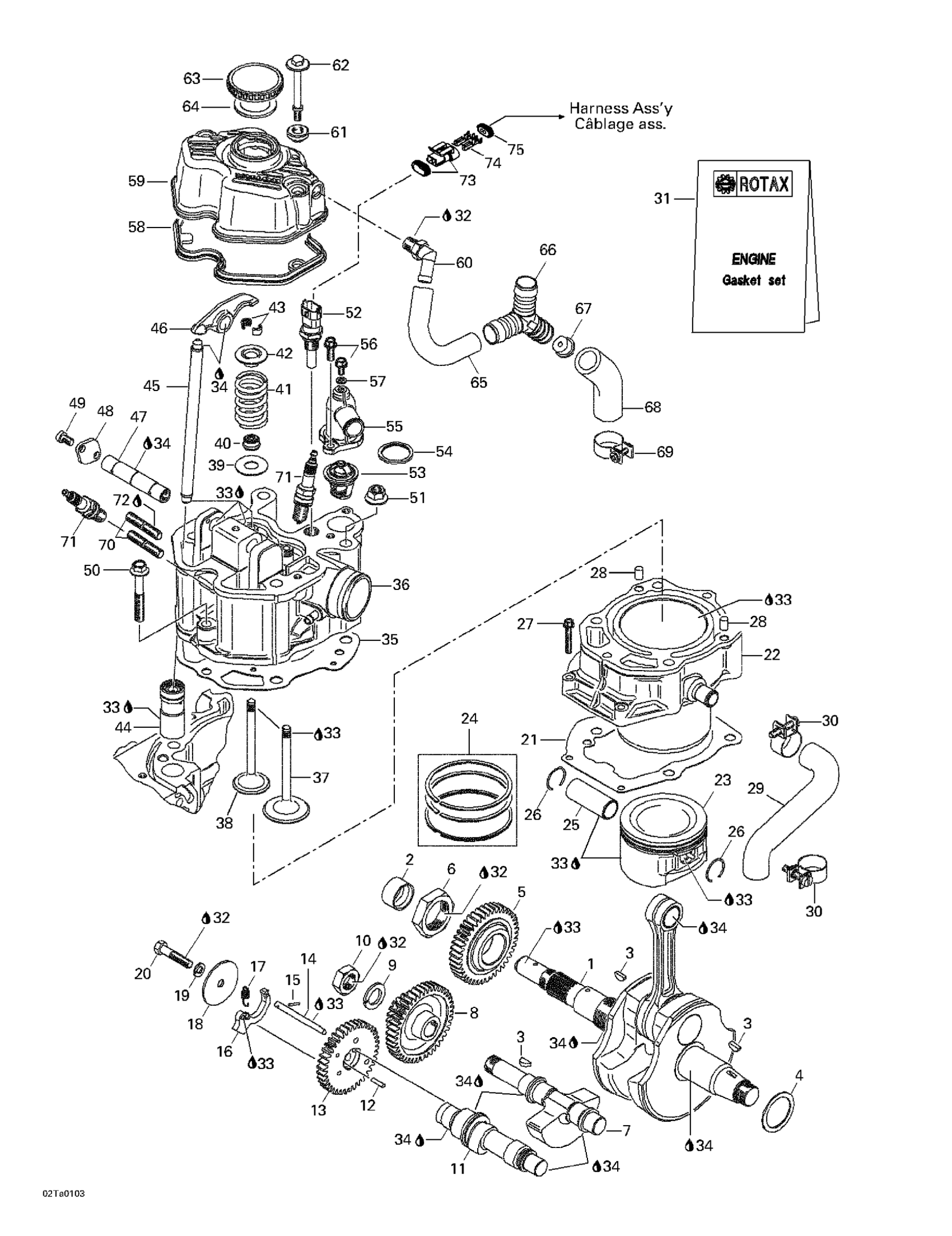

Can-Am Traxter Autoshift, 2001 Crankshaft, Pistons And Cylinder Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 9 - 10.

711295893

$1,322.99

2

Spacer

711247070

$45.35

3

Woodruff Key 4 X 5

420246570

$3.29

4

Adjusting Washer 35 x 45 x 1.3

711427505

$4.58

Adjusting Washer 35 x 45 x 1.5

711427506

Unavailable

Adjusting Washer 35 x 45 x 1.8

711427507

$6.89

5

Mating Gear (42 Teeth)

711635011

$182.28

6

Nut M34

711842605

$14.58

7

Balance Shaft

711220470

Unavailable

8

Balancing Gear Double

711635100

$213.82

9

Lock Washer 18 mm

290945757

Unavailable

10

HEX. NUT M18 - Call your local BRP dealership

420942220

$9.52

11

Cam Shaft

711220462

$353.99

12

Needle Pin

420232420

$3.86

13

Cam Shaft Gear (38 Teeth)

711634956

$269.97

14

Deko Shaft Ass'y

711220615

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Centrifugal Weight

711231050

Unavailable

17

Tension Spring

711239570

$12.28

18

Washer

711244260

$9.97

19

Washer-Lock Din.128

420945832

$1.09

20

Hex. Screw M8 X 40

207084044

$0.92

21

CYLINDER GASKET - Call your local BRP dealership

711650430

Unavailable

22

Cylinder/Piston

711613177

Unavailable

23

Piston 89 mm & Ring Set | Includes 5 - .

711296110

Unavailable

24

Piston Ring Set

711296114

Unavailable

25

Piston Pin

420216225

$34.58

26

Circlip 22 mm

711245431

$4.58

27

Hex. Flange Screw M6 x 35

711941126

$4.58

28

Center Pin 8 X 12

420632010

$3.07

29

Water Cooling Hose

711222285

$35.35

30

Clamp

711951760

Unavailable

31

Gasket Set Engine

711296372

Unavailable

32

Loctite 243, 10 ml

293800060

$20.77

33

Not Available As Spare Part - Friction Washer

Unavailable

34

Was 420297616 Klueber Grease, 60g

219704464

$23.82

35

Cylinder Head Gasket

711650446

Unavailable

36

Cylinder Head

711613375

$510.99

37

Inlet Valve 42 mm

711254050

Unavailable

38

Inlet Valve 34 mm

711254062

$77.66

39

THRUST WASHER - Call your local BRP dealership

420227980

$7.39

40

Valve Seal

420230810

Unavailable

41

Valve Spring

711239500

$20.57

42

Valve Spring Retainer

711254100

$17.40

43

Valve Cotter

711253090

$7.66

44

Valve Hydraulic Tappet

420854099

$106.12

45

Push Rod

711854575

Unavailable

46

Rocker Arm

711254083

Unavailable

47

Rocker Arm Shaft

711254110

$31.51

48

Holding Strip

711244250

$6.89

49

Socket Head Screw M6 x 10

711241681

$3.82

50

Hex. Flange Screw M8 X 53.5

420240326

Unavailable

51

Hex. Flange Nut M10

233101414

$4.10

52

Temperature Sensor

278002895

$31.82

53

Thermostat | Includes 53 to 54

420222495

$36.89

54

Thermostat Gasket

420650300

$8.34

55

Thermostat Cover

711222560

Unavailable

56

Hex. Flange Screw M6 x 16

711241751

Unavailable

57

Sealing Washer

404146600

$0.72

58

Valve Cover Gasket

711650450

Unavailable

59

Valve Cover

711211835

$79.20

60

Angular Tube

420922242

$12.29

61

Rubber Bushing

711260050

Unavailable

62

DISTANCE SCREW M6 X 47.9 - Call your local BRP dealership

420240906

Unavailable

63

Bayonet Filler Cap | Includes 63 - 64.

711974644

Unavailable

64

Gasket Ring

711650990

Unavailable

65

Formed Hose

711222610

Unavailable

66

Y Fitting

711874380

Unavailable

67

Fitting

711222590

$10.74

68

Formed Hose

711222600

Unavailable

69

Gear Clamp

711251222

Unavailable

70

Stud M8 x 23

711940366

Unavailable

71

Spark Plug, NGK/DR8EA

707000008

$4.03

72

Sealant Loctite 648

219703000

$35.72

73

Male Housing, 2 Circuits

278001005

$15.57

74

Female Terminal

278000998

$3.48

75

Wire Seal

278000999

$2.55
