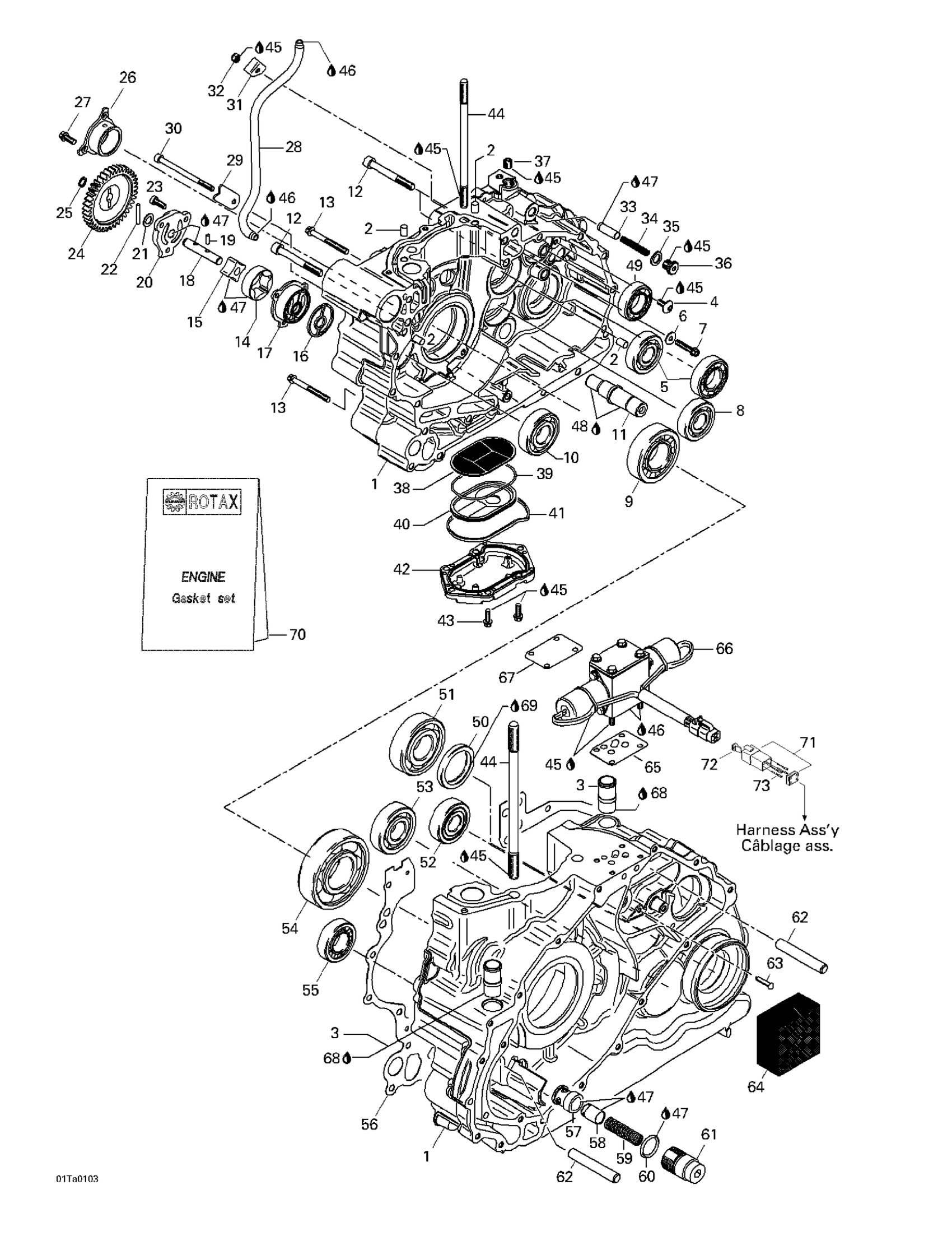

Can-Am Traxter Autoshift, 2001 Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y

711295881

Unavailable

2

Center Pin 8 X 12

420632010

$3.07

3

Tube

711224260

Unavailable

4

Flat Head Screw M6 x 16

711241531

Unavailable

5

Ball Bearing 6205

420232764

$23.85

6

Washer

420627400

$4.09

7

Hex. Flange Screw M6 x 30

711241941

Unavailable

8

Ball Bearing 6304E

290932095

Unavailable

9

Roller Bearing

711232490

Unavailable

10

Ball Bearing

711632200

Unavailable

11

Intermediate Gear Shaft

711220570

Unavailable

12

SOCKET HEAD SCREW M8 X 70 - Call your local BRP dealership

420841991

Unavailable

13

Hex. Flange Screw M6 x 65

711640351

Unavailable

14

Oil Pump Rotor Ass'y | Includes 13 - 4.

711956275

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Rubber Ring

711650960

Unavailable

17

Ring Housing

711610140

Unavailable

18

Oil Pump Shaft

711220592

Unavailable

19

Needle Pin

420232731

$1.56

20

Oil Pump Cover

711211852

Unavailable

21

Thrust Washer

420827590

$3.75

22

NEEDLE PIN - Call your local BRP dealership

420232971

$3.81

23

SOCKET HEAD SCREW M6 X 20 - Call your local BRP dealership

420240404

Unavailable

24

Oil Pump Gear (40 Teeth)

711635030

Unavailable

25

Snap Ring

420245330

$1.43

26

Ring Housing

711610130

Unavailable

27

Hex. Flange Screw M6 x 16

711241751

Unavailable

28

Oil Pipe

711224622

Unavailable

29

Holding Strip

711627437

Unavailable

30

Socket Screw M6 x 90

711241481

Unavailable

31

Holding Strip

711627432

Unavailable

32

Elastic Stop Nut M6

232561414

$1.55

33

Piston

711256590

Unavailable

34

Compression Spring

711238020

Unavailable

35

Aluminum Sealing Ring

420250016

$4.41

36

Plug Screw M12 x 1,5

420241701

$10.76

37

Plug Screw

711840651

Unavailable

38

Oil Sieve

711256572

Unavailable

39

O-Ring

711931385

Unavailable

40

Oil Collector

711256652

Unavailable

41

RUBBER RING - Call your local BRP dealership

711650950

Unavailable

42

Oil Sieve Cover

711211941

Unavailable

43

Hex. Flange Screw M6 x 20

711241861

Unavailable

44

Stud M10 x 190

711241670

Unavailable

45

Loctite 243, 10 ml

293800060

$20.77

46

Was 413702700 Loctite 515, 50 ml

219704462

Unavailable

47

Not Available As Spare Part - Friction Washer

Unavailable

48

Molykote G-N, 50 g

420297433

$22.72

49

Bearing_Ball - Call your local BRP dealership

420932650

Unavailable

50

Oil Seal

711650700

Unavailable

51

Ball Bearing

420932822

$28.33

52

Ball Bearing

420932816

$39.52

53

Ball Bearing 6304E

290932095

Unavailable

54

BALL BEARING - Call your local BRP dealership

420432120

Unavailable

55

Roller Bearing

711232280

Unavailable

56

Crankcase Gasket

711650422

Unavailable

57

Seat Valve Sleeve

711256602

Unavailable

58

Piston Valve

420256638

Unavailable

59

Compression Spring | 7413/7414. 7415/7416. 7417/7418.

711938785

Unavailable

60

O-Ring

420250050

$8.93

61

Plug Screw M24

711640790

Unavailable

62

Needle Pin

420229475

$12.29

63

Groove Pin M4 x 20

711229170

Unavailable

64

Oil Separating Foam

711256720

Unavailable

65

SOLENOID VALVE GASKET - Call your local BRP dealership

420650630

$9.19

66

Soleno‹d Valve

711256540

Unavailable

67

Gasket

420650636

$10.12

68

Sealant Loctite 648

219703000

$35.72

69

Dow Corning 111, 150 g

413707000

$57.82

70

Gasket Set Engine

711296372

Unavailable

71

MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership

710000045

Unavailable

72

MALE LOCK, 4 CIRCUITS - Call your local BRP dealership

710000046

Unavailable

73

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable
