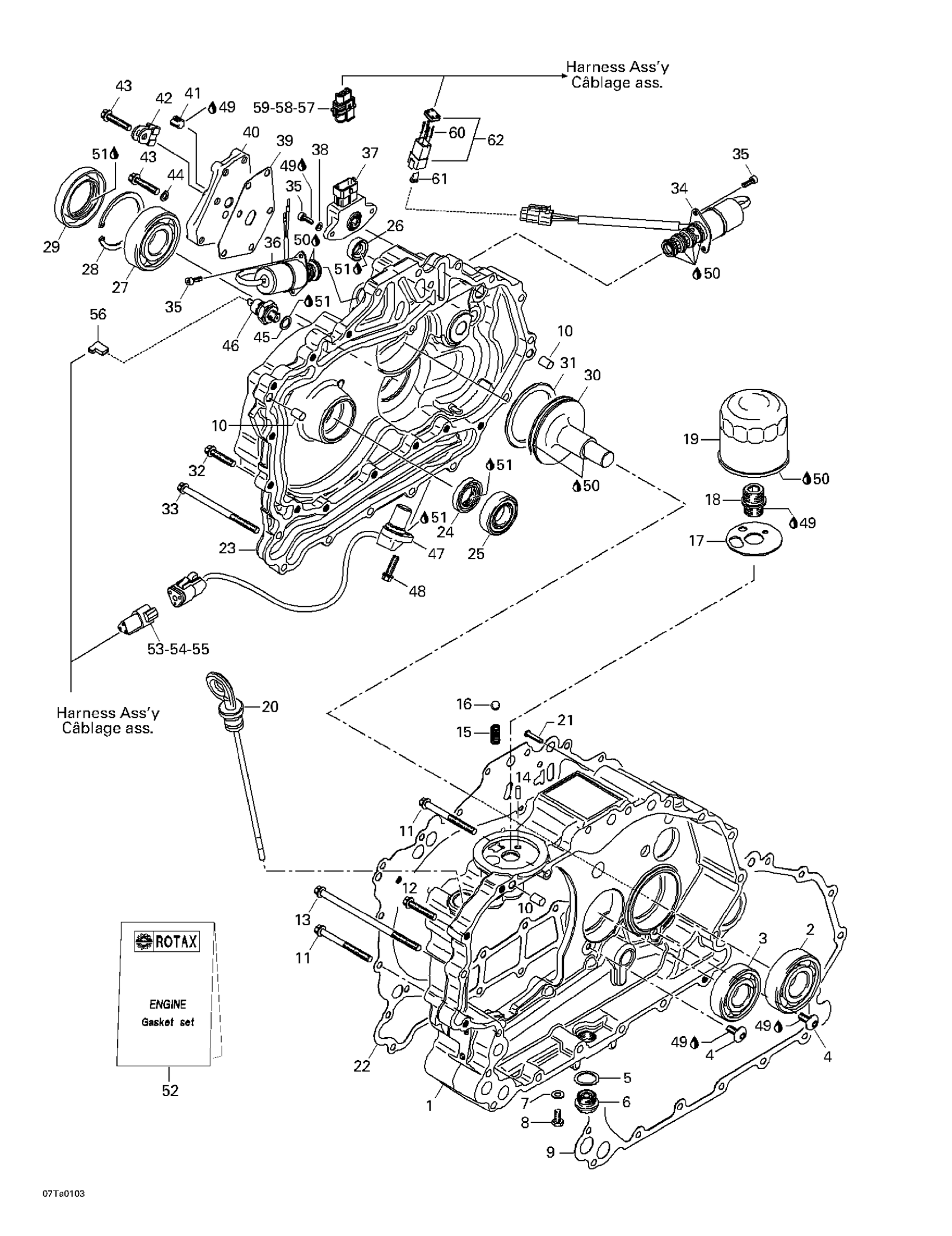

Can-Am Traxter Autoshift, 2001 Clutch Housing And Cover Diagram

#

Description
Price

1

Clutch Housing

711211921

Unavailable

2

Ball Bearing

420932822

$29.20

3

Ball Bearing

711632200

Unavailable

4

Flat Head Screw M6 x 16

711241531

$10.74

5

Crush Washer

420552280

$2.99

6

Drain Plug M18 X 1.5

420840278

$23.05

7

Sealing Washer

404146600

$0.72

8

Hex. Flange Screw M6 x 16

711241751

Unavailable

9

Clutch HousingGasket

711650582

Unavailable

10

Center Pin 8 X 12

420632010

$3.07

11

Hex. Flange Screw M6 x 70

711940576

Unavailable

12

Hex. Flange Screw M6 x 35

711941126

$4.58

13

Hex. Flange Screw M6 x 130

711640371

Unavailable

14

NEEDLE PIN - Call your local BRP dealership

711232710

Unavailable

15

Spring

711238050

Unavailable

16

Ball

711232370

Unavailable

17

Oil Filter Washer

711627370

$7.89

18

Oil Filter Nipple

711924420

$32.28

19

Filtre Huile * Filter Oil

420256623

Unavailable

20

Oil Dipstick

711256610

$13.82

21

Groove Pin M4 x 20

711229170

Unavailable

22

Clutch Cover Gasket

711650592

Unavailable

23

Clutch Cover

711211811

Unavailable

24

Oil Seal

420930392

$11.77

25

Ball Bearing 6304

711232190

Unavailable

26

Oil Seal

420250455

$15.22

27

Ball Bearing

420932822

$29.20

28

RETAINING RING - Call your local BRP dealership

711445070

Unavailable

29

Oil Seal

420650682

$18.43

30

Disengaging Piston | Includes 19 - 20.

711257056

$63.05

31

K-Grooved Ring

711650550

Unavailable

32

Hex. Flange Screw M6 x 30

711241941

$3.82

33

Hex. Flange Screw M6 x 100

711640361

Unavailable

34

Soleno‹d Valve

711256550

Unavailable

35

SOCKET HEAD SCREW M4 X 12 - Call your local BRP dealership

420440291

$1.29

36

Pressure Valve

711256560

Unavailable

37

Potentiometer (Sub Transmission)

711265600

Unavailable

38

Flat Washer 4

420244072

$0.70

39

Gasket

711650620

Unavailable

40

Oil Duct Cover

711211935

Unavailable

41

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

42

Open Clamp

414176000

$1.86

43

Hex. Flange Screw M6 x 30

711241941

$3.82

44

Seal Washer

420230415

$1.77

45

Oil Seal

420230150

$2.94

46

OIL PRESSURE SWITCH - Call your local BRP dealership

710000313

Unavailable

47

Camshft Position Sensor Ass'y

420265727

$108.89

48

Hex. Flange Screw M6 x 20

711241861

$7.66

49

Loctite 243, 10 ml

293800060

$20.77

50

Not Available As Spare Part - Friction Washer

Unavailable

51

Dow Corning 111, 150 g

413707000

$57.82

52

Gasket Set Engine

711296372

Unavailable

53

Male Lock, 3 Circuits

409207600

$3.02

54

Male Terminal

278000631

$4.12

55

Male Housing

278002378

$10.91

56

Female Terminal

409010300

$4.12

57

Female Terminal

278000998

$3.48

58

Wire Seal

278000999

$2.55

59

Male Housing, 3 Circuits

278000997

$15.57

60

MALE TERMINAL - Call your local BRP dealership

409014800

$3.14

61

MALE LOCK, 4 CIRCUITS - Call your local BRP dealership

710000046

$6.12

62

MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership

710000045

$30.74
