Description

Price

1

Harness Ass'y | INCLUDES ITEMS 1 TO 579

710000435

Unavailable

17

WIRE SEAL - Call your local BRP dealership

278000996

$2.37

32

Female Terminal

278000998

$3.48

33

Wire Seal

278000999

$2.55

75

Female Terminal

409010700

$5.08

77

Female Terminal

409010300

$4.12

79

Female Terminal

710000038

$4.60

80

Male Terminal

278000230

$3.48

86

FEMALE TERMINAL - Call your local BRP dealership

278000995

$4.58

87

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

88

Female Terminal | DS 650 X

278001009

$2.55

90

Male Terminal Housing, 26 Circuits

278001062

Unavailable

91

MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership

278001063

$32.28

101

Open Barrel Terminal

278001392

$4.12

102

SEALING CAP - Call your local BRP dealership

293000070

$4.58

106

Male Housing, 2 Circuits

278001005

$15.57

107

Male Housing, 3 Circuits

278000997

$15.57

110

Male Terminal

278000631

$4.12

112

Female Terminal

278000632

$1.69

115

Male Housing

278002378

$10.91

123

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.97

127

Male Lock, 3 Circuits

409207600

$3.02

139

MALE TERMINAL - Call your local BRP dealership

409014800

$3.14

140

FEMALE TERMINAL - Call your local BRP dealership

409015100

$3.97

142

MALE HOUSING, 3 CIRCUITS - Call your local BRP dealership

710000044

$23.51

143

MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership

710000045

$30.74

148

FEMALE TERMINAL HOUSING, 3 CIRC. - Call your local BRP dealership

515175249

$13.82

150

FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

409015400

$9.48

154

MALE LOCK, 3 CIRCUITS - Call your local BRP dealership

710000043

$5.46

155

MALE LOCK, 4 CIRCUITS - Call your local BRP dealership

710000046

$6.12

160

Female Lock, 3 Circuits

515175248

Unavailable

162

FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership

409014900

$3.05

165

PLUG - Call your local BRP dealership

515175303

$4.58

186

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$19.20

196

Tie Wrap 142 mm

293750002

$0.88

197

Female Terminal

710000051

Unavailable

198

Female Terminal Housing, 4 Circ.

710000032

Unavailable

199

WIRE SEAL - Call your local BRP dealership

710000050

$7.66

200

Cap

710000049

Unavailable

222

Female Housing

409204300

Unavailable

227

Male Terminal

409004300

$5.46

228

Female Terminal

409007300

$0.36

229

Female Terminal

278000223

$2.55

231

Female Housing, 2 Circuits

278000217

$7.59

232

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

236

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

238

Male Housing, 3 Circuits

278000273

$7.59

242

Wire Seal

278000218

$3.48

243

Wire Seal

710000048

$5.10

245

Female Lock, 2 Circuits

710000028

Unavailable

247

Female Terminal

710000027

Unavailable

252

FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

710000026

$8.43

253

Tubing 6 Mm 3000Mm Long

219704425

$13.14

254

Was 409901700 Tubing (9 mm)

219704399

$79.97

255

Was 409901800 Tubing (13 mm)

219704400

$9.40

257

Was 409901600 Tubing 19mm

219704398

$89.97

259

Tubing 25 MM 1000MM Long

219704402

$12.69

280

Female Terminal

409012100

$3.73

285

HOUSING-TAB - Call your local BRP dealership

710000078

$19.77

286

Seal

409012300

$4.38

288

Not Available As Spare Part - Friction Washer

Unavailable

295

Insulated Sheath

278001008

$3.20

296

Insulated Sheath

278000770

$7.60

297

Insulated Sheath

278001007

$3.22

301

Diode

409012700

$10.83

312

MALE HOUSING, 5 CIRCUITS - Call your local BRP dealership

710000107

$8.43

322

Female Terminal Housing, 3 Circ.

710000153

$10.14

329

Female Terminal

710000082

$6.03

331

PROTECTOR TUBE, 4MM 1000MM LONG - Call your local BRP dealership

219704446

Unavailable

435

FEMALE TERMINAL - Call your local BRP dealership

409009500

$1.08

453

Female Terminal Housing, 3 Circuits

710000347

Unavailable

579

Wire Seal

710000504

$4.60

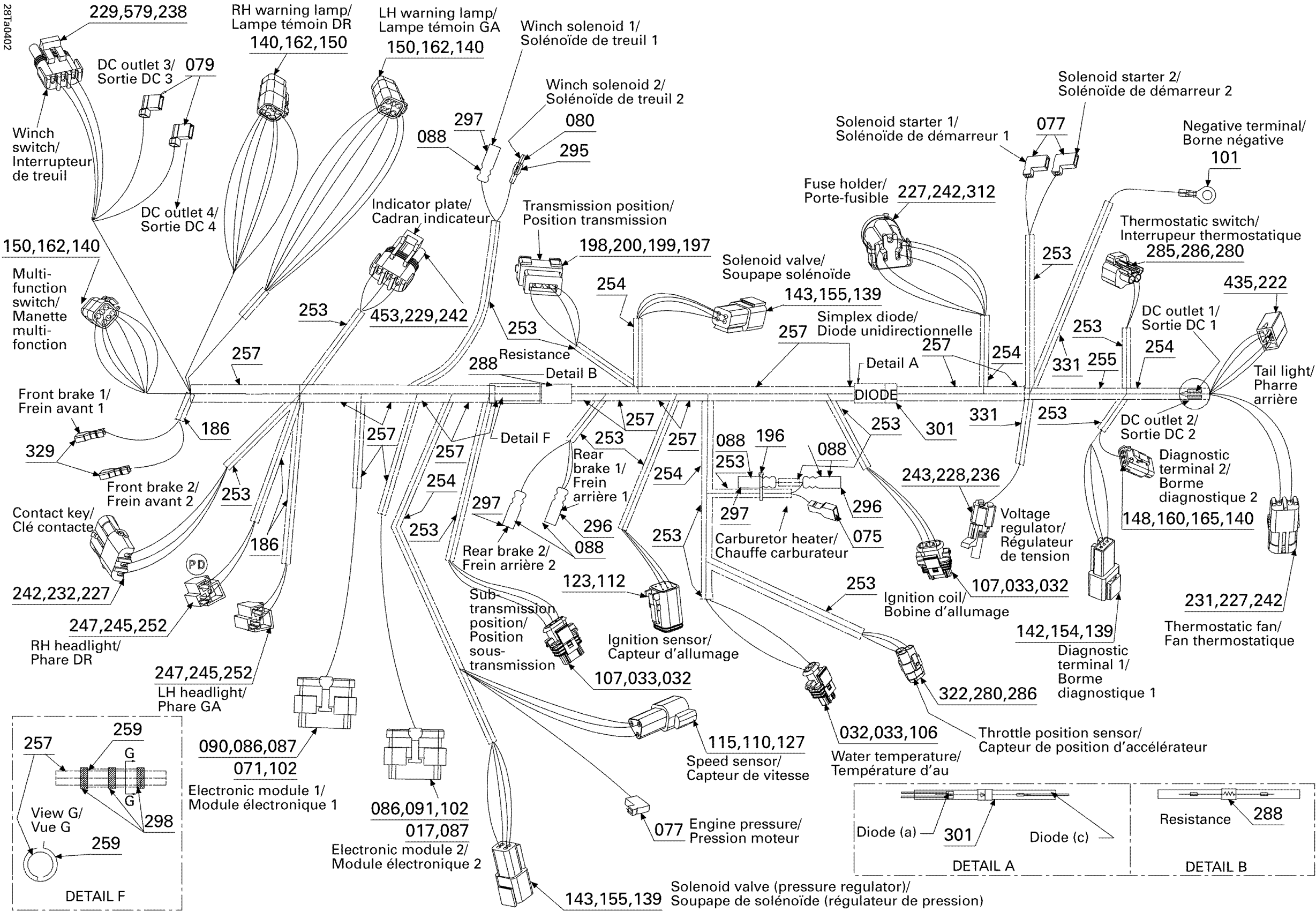

Can-Am Traxter Auto Std & XT, 2004 Main Harness Diagram

Harness Ass'y | INCLUDES ITEMS 1 TO 579

FEMALE TERMINAL - Call your local BRP dealership

Male Terminal Housing, 26 Circuits

Female Lock, 3 Circuits

Female Terminal

Female Terminal Housing, 4 Circ.

Cap

Female Housing

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

Female Lock, 2 Circuits

Female Terminal

Not Available As Spare Part - Friction Washer

PROTECTOR TUBE, 4MM 1000MM LONG - Call your local BRP dealership

Female Terminal Housing, 3 Circuits
