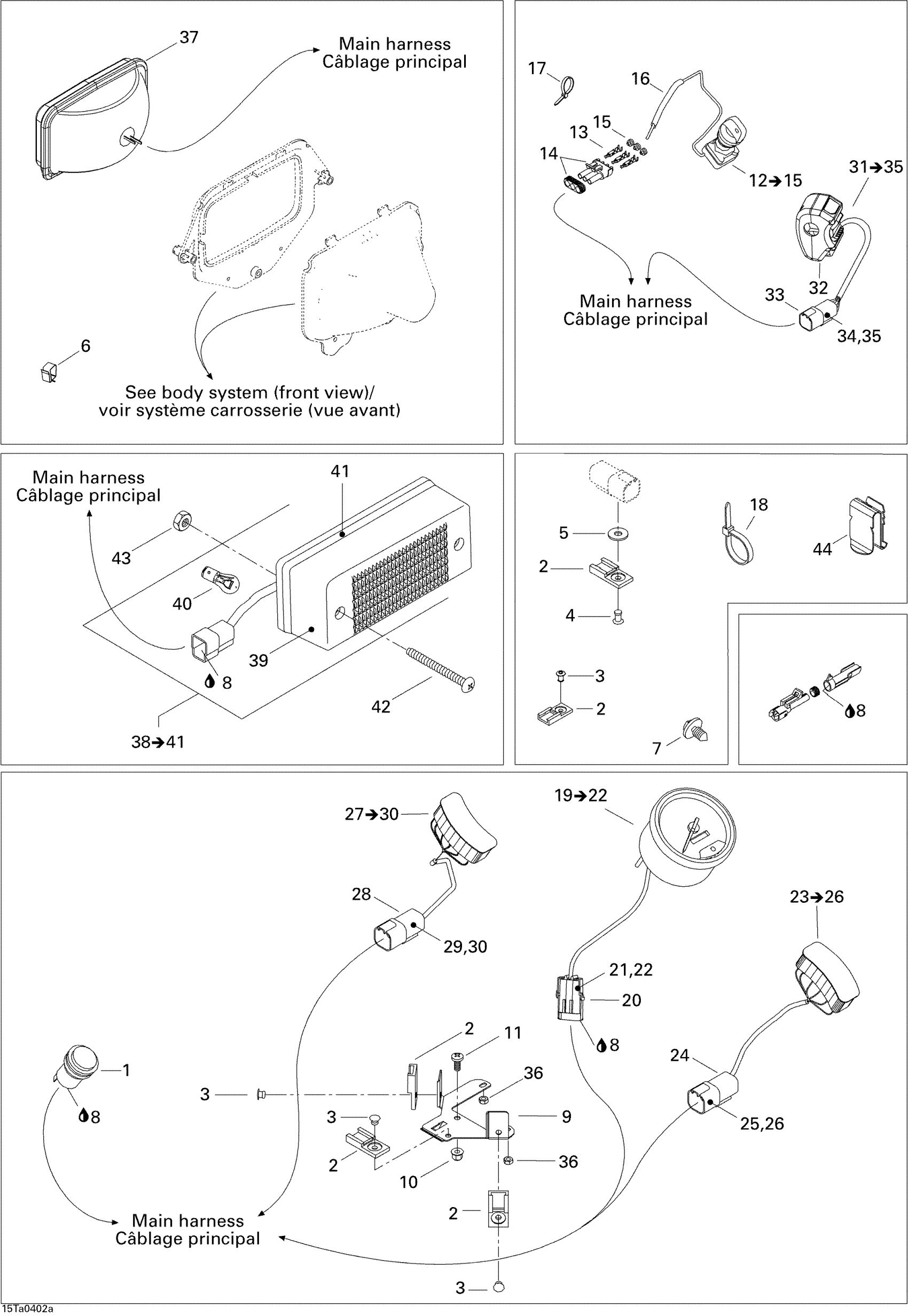

Can-Am Traxter Auto Std & XT, 2004 Electrical Accessories Diagram

#

Description
Price

1

Outlet Power Kit, 12 Volts

861507200

$30.52

2

Clip

270000141

$8.33

3

Pop Rivet 3/16"

390402400

$0.25

4

Pop Rivet 3/16"

390402300

$0.73

5

Washer | DS 650 X

391301600

$0.46

6

Clip

414227300

$1.40

7

Mount Dart

293730040

$0.86

8

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

9

Housing Support, Black

710000159

Unavailable

10

Elastic Stop Nut M5

232551414

$0.72

11

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208651241

Unavailable

12

Ignition Switch Ass'y | Includes 24 - 27.

710000042

Unavailable

12

BLANK KEY (A TYPE) - Call your local BRP dealership

710000137

Unavailable

12

BLANK KEY (B TYPE) - Call your local BRP dealership

710000101

Unavailable

13

Female Terminal

278000223

$2.55

14

Male Housing, 3 Circuits

278000273

$7.59

15

Wire Seal

278000218

$3.48

16

Protector Tube

710000171

Unavailable

17

Tie Wrap 142 mm

293750002

$0.88

18

Tie Wrap 368 mm

293750008

$0.85

18

Tie Wrap 142 mm

293750002

$0.88

18

Tie-Rap 180 mm

414115200

$0.09

18

Tie-Rap 180 mm

414115200

$0.09

19

Speedometer

710000524

Unavailable

20

Male Terminal Housing (3 Circuits)

278001479

Unavailable

21

Male Terminal | XT Models

278000222

$2.55

22

Wire Seal

278000218

$3.48

23

RH Warning Light | INCLUDES ITEMS 23 TO 36

710000420

Unavailable

24

Male Terminal Housing, 6 Circuits

409015200

Unavailable

25

Male Lock, 6 Circuits

409014600

Unavailable

26

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

27

LH WARNING LIGHT - Call your local BRP dealership | INCLUDES ITEMS 27 TO 30

710000418

Unavailable

28

Male Terminal Housing, 6 Circuits

409015200

Unavailable

29

Male Lock, 6 Circuits

409014600

Unavailable

30

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

31

Multi-function Switch Ass'y | Includes 26 to 30

710000088

Unavailable

32

BACK COVER - Call your local BRP dealership

710000173

Unavailable

33

Male Terminal Housing, 6 Circuits

409015200

Unavailable

34

Male Lock, 6 Circuits

409014600

Unavailable

35

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

36

NUT-STOP ELASTIC IFI 100/107 - Call your local BRP dealership

211100051

Unavailable

37

HEADLAMP - Call your local BRP dealership

710000001

Unavailable

38

Tail Light Housing

710000102

Unavailable

39

TAIL LIGHT LENS, RED - Call your local BRP dealership

710000055

Unavailable

40

Bulb

520000758

$7.49

41

GASKET - Call your local BRP dealership

710000129

Unavailable

42

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

Unavailable

43

Hex. Flange Elastic Nut M5

233251414

$1.66

44

CLIP - Call your local BRP dealership

409014200

Unavailable
