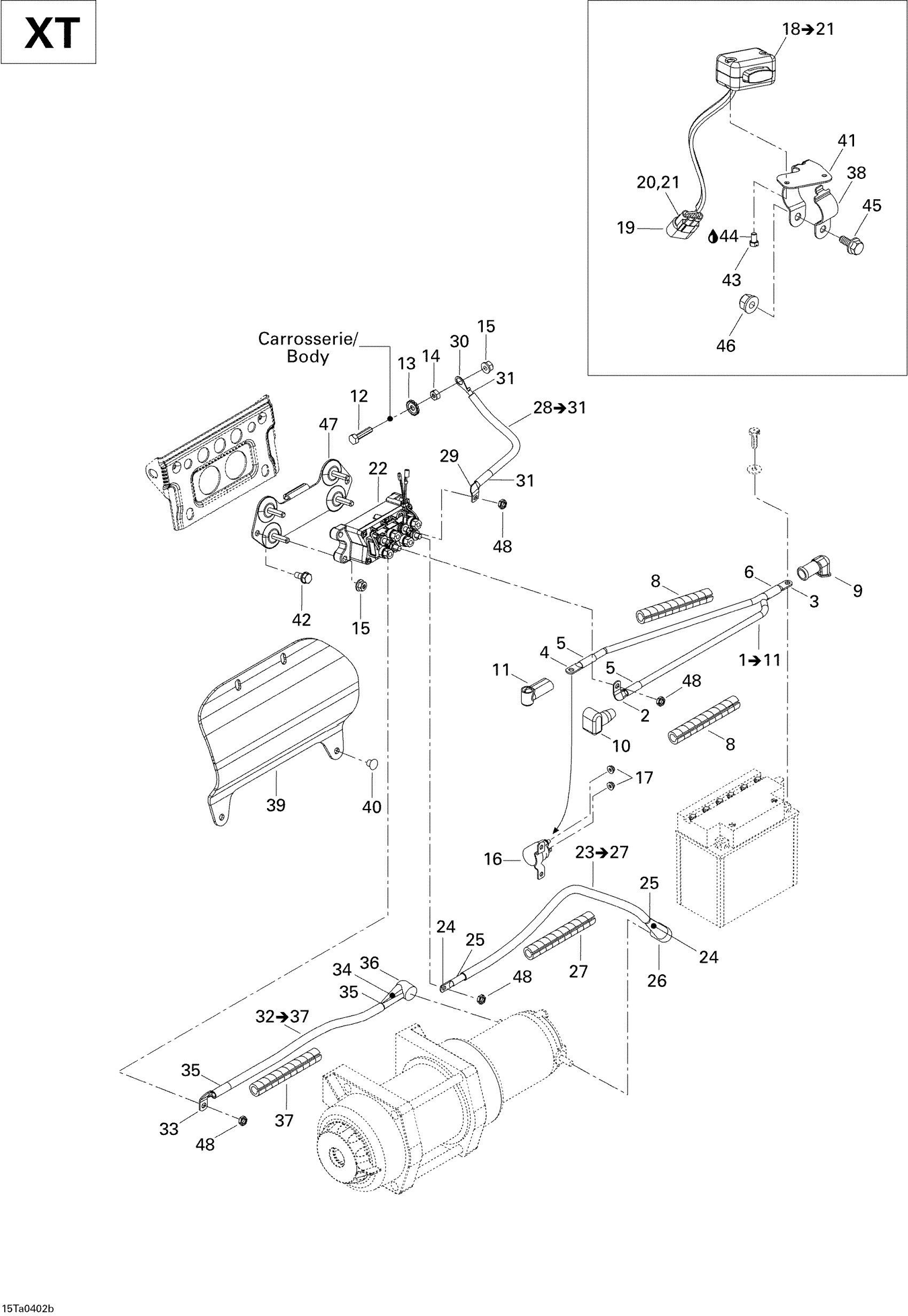

Can-Am Traxter Auto Std & XT, 2004 Electrical Accessories (XT) Diagram

#

Description
Price

1

Battery Starter Relay Cable Ass'y | Includes 1 to 10

710000442

Unavailable

2

TERMINAL_FEMALE - Call your local BRP dealership | STD Models

710000475

Unavailable

3

FLAT OPEN BAREL 6.6 MM - Call your local BRP dealership

710000478

Unavailable

4

Flat Open Barel 6.6 mm

710000479

Unavailable

5

Was 710000483 Heat Shrink Tubing

219704447

$72.36

6

Shrink Tubing | XT Models

275500578

Unavailable

7

Coding Tape, Red

710000488

Unavailable

8

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

9

Protector Cap | STD Models

710001829

$9.43

10

Protector Cap | STD Models

710000523

Unavailable

11

Protector Cap

710000527

Unavailable

12

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

13

External Serrated Lock Washer 6 mm

234461608

$0.92

14

Hex. Nut M6

232061414

$0.44

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

16

Starter Relay

515176011

$51.97

17

Elastic Stop Nut M6

232561414

$1.55

18

WINCH INTERRUPTER - Call your local BRP dealership | XT Models, Includes 13 To 16

710001001

Unavailable

19

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

20

Male Terminal | XT Models

278000222

$2.55

21

Wire Seal

278001065

$5.85

22

Winch Solenoid | XT Models

710001000

$114.15

23

Winch Solenoid Cable Ass'y | Includes 17 to 21

710000438

Unavailable

24

Flat Open Barel 6.6 mm

710000479

Unavailable

25

Was 710000483 Heat Shrink Tubing

219704447

$72.36

26

Protector Cap

710000494

Unavailable

27

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

28

Frame Solenoid Cable Ass'y | Includes 22 to 25

710000439

Unavailable

29

TERMINAL_FEMALE - Call your local BRP dealership | STD Models

710000475

Unavailable

30

Flat Open Barel 6.6 mm

710000479

Unavailable

31

Was 710000483 Heat Shrink Tubing

219704447

$72.36

32

Winch Solenoid Cable Ass'y | Includes 26 to 31

710000440

Unavailable

33

OPEN BARREL, 6.6 MM - Call your local BRP dealership | XT Models

710000476

Unavailable

34

Flat Open Barel 6.6 mm

710000479

Unavailable

35

Was 710000483 Heat Shrink Tubing

219704447

$72.36

36

Protector Cap

710000494

Unavailable

37

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

38

Collar

710000566

Unavailable

39

Protector Pad

710000511

Unavailable

40

Black, Dart

293730011

$0.79

41

Support, Black

710000564

Unavailable

42

Hex. Forming Screw M6 X 10

210261050

$1.42

43

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.40

44

Loctite 243, 10 ml

293800060

$20.77

45

Hex. Flange Screw M6 X 16

207661654

$1.74

46

Hex. Flange Elastic Nut M6

233261494

$1.26

47

SOLENOID SUPPORT, BLACK - Call your local BRP dealership

710000535

Unavailable

48

Elastic Stop Nut M6

232561414

$1.55
