Description

Price

1

Seat Ass'y | INCLUDES ITEMS 1 TO 4

708000232

Unavailable

2

NUT HOUSING ASS'Y M6 - Call your local BRP dealership | Includes 2 To 3

708000046

Unavailable

3

Elastic Stop Nut M6

232561414

$1.55

4

Seat Cover

708000233

Unavailable

5

Reflective Sheet

708000160

Unavailable

6

Seat Support, Black

708000003

Unavailable

7

Hex. Flange Screw M6 X 25

207662544

$0.53

8

Engine Cover

705000879

Unavailable

9

Hex. Forming Screw M6 X 10

210261050

$1.42

10

Hex. Flange Screw M6 X 16

207661644

$0.61

11

Nut Housing M6

708000042

Unavailable

12

Flat Washer

224061201

$1.11

13

Lever Latch

708000010

Unavailable

14

SOLID RIVET 3/16 X 1-7/8 - Call your local BRP dealership

293150062

$1.08

15

Push Nut

389804300

$0.43

16

SPRING - Call your local BRP dealership

708000015

Unavailable

17

Latch Base

708000034

Unavailable

18

Seat Pivot, Black

708000044

Unavailable

19

SEAT BUSHING - Call your local BRP dealership

708000019

$4.99

20

Hex. Flange Screw M8 X 20

207682044

$0.92

21

Hex. Flange Elastic Nut M8

233281414

$1.14

22

SEAT STUD - Call your local BRP dealership

291000945

$30.74

23

Hex. Jam Nut M10

232100600

$1.85

24

Rubber Stopper

708000758

$9.37

25

Emission Label

704900625

Unavailable

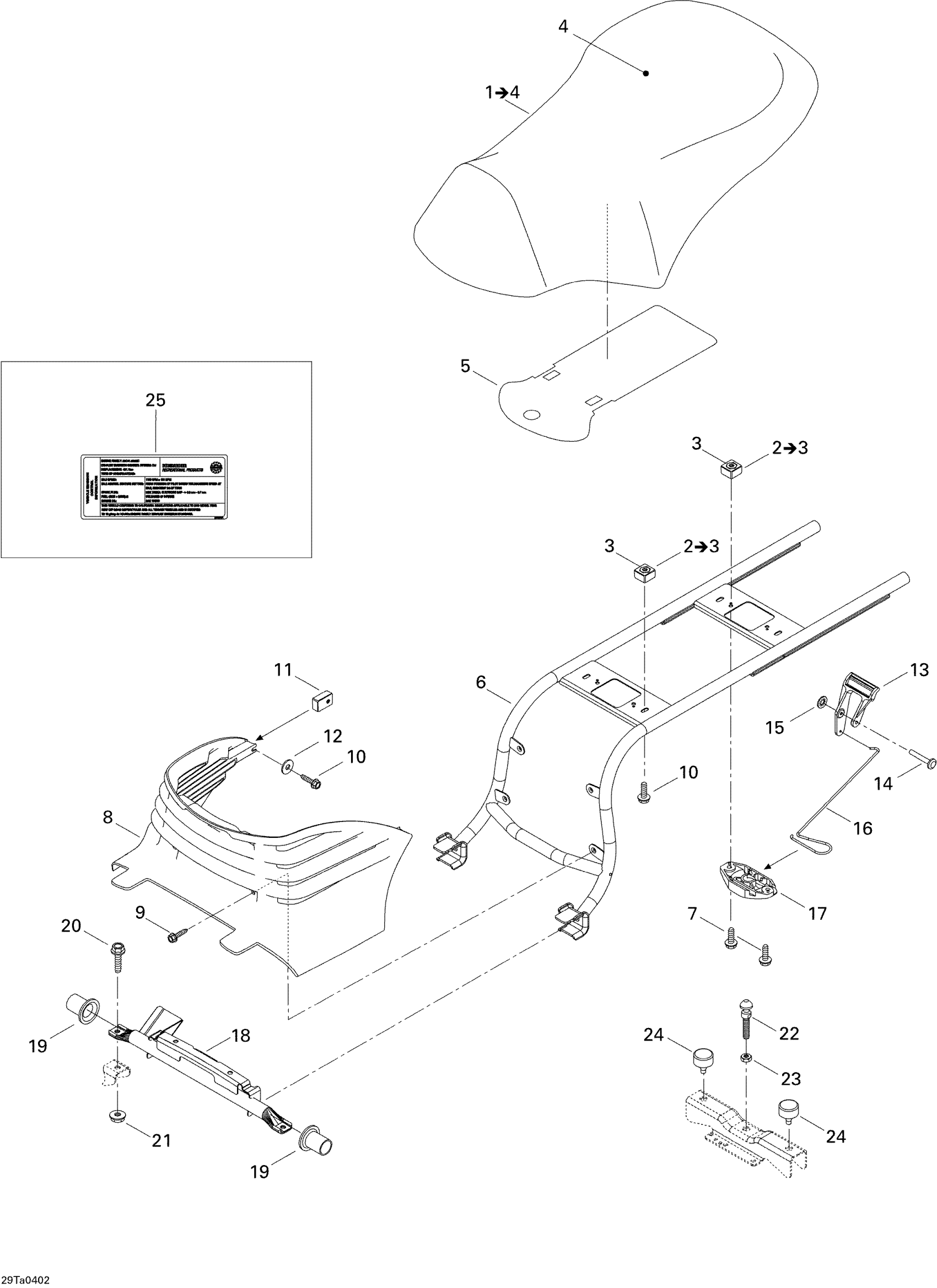

Can-Am Traxter Auto Std & XT, 2004 Seat Diagram

Seat Ass'y | INCLUDES ITEMS 1 TO 4

NUT HOUSING ASS'Y M6 - Call your local BRP dealership | Includes 2 To 3

Seat Cover

Reflective Sheet

Seat Support, Black

Engine Cover

Nut Housing M6

Lever Latch

SPRING - Call your local BRP dealership

Latch Base

Seat Pivot, Black

Emission Label
