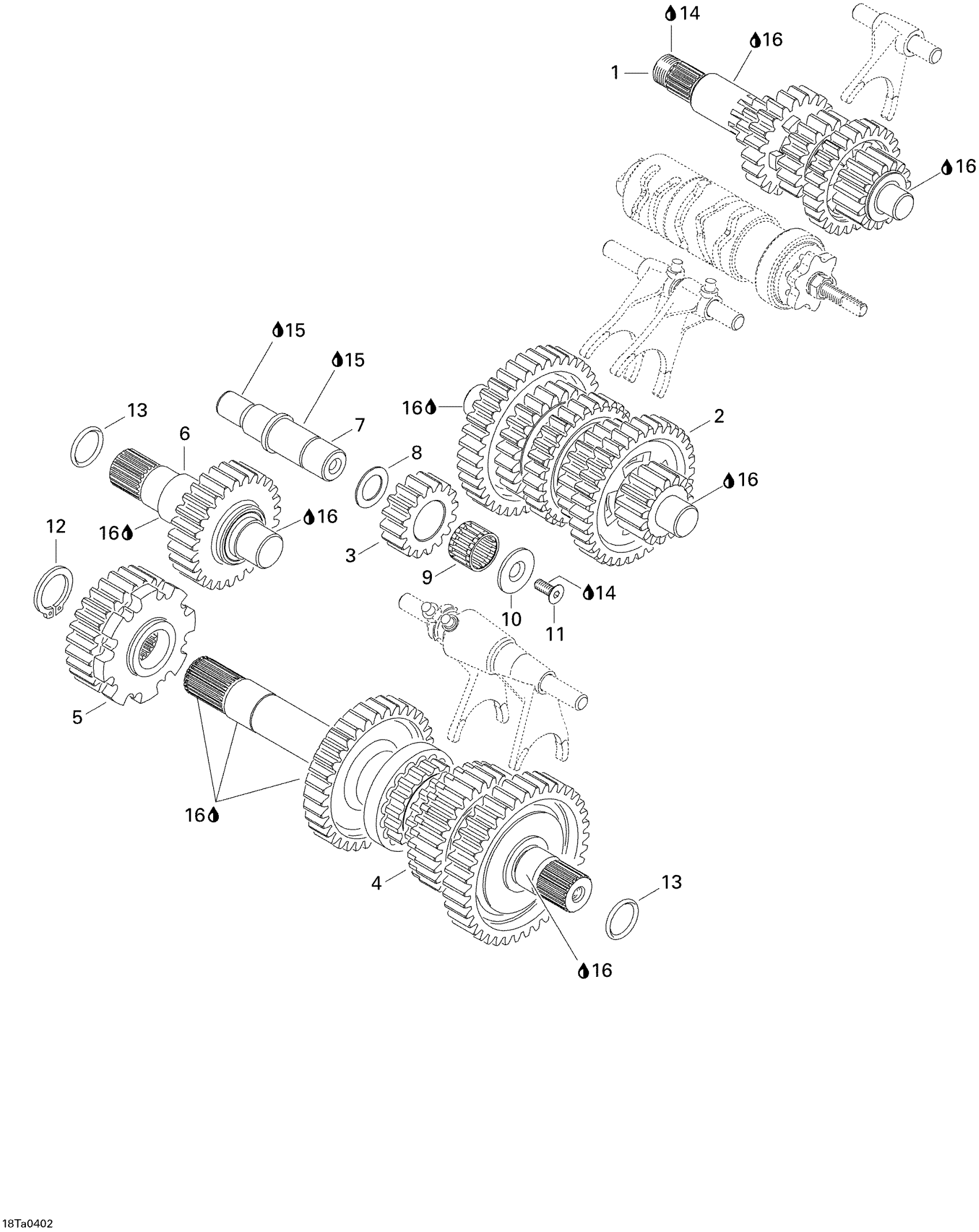

Can-Am Traxter Auto Std & XT, 2004 Transmission Diagram

#

Description
Price

1

Countershaft

420220487

Unavailable

2

Main Shaft Ass'y

420220509

Unavailable

3

Sliding Gear

420634890

Unavailable

4

Rear Output Shaft

420220497

Unavailable

5

OUTPUT GEAR 28 TEETH - Call your local BRP dealership

420634925

$161.51

6

Front Output Shaft

420220522

Unavailable

7

INTERMEDIATE GEAR SHAFT - Call your local BRP dealership

420220570

$20.57

8

THRUST WASHER - Call your local BRP dealership

420227440

$5.74

9

NEEDLE CAGE - Call your local BRP dealership

420632230

$16.89

10

STOP WASHER - Call your local BRP dealership

420244270

$6.89

11

Screw M6 X 20

420941436

$2.37

12

CIRCLIP - Call your local BRP dealership

420945870

$4.35

13

O-Ring

420430373

$2.63

14

Loctite 243, 10 ml

293800060

$20.77

15

Molykote G-N, 50 g

420297433

$22.72

16

Petamo Grease, GHY133N, 400 g

420899271

$57.17
