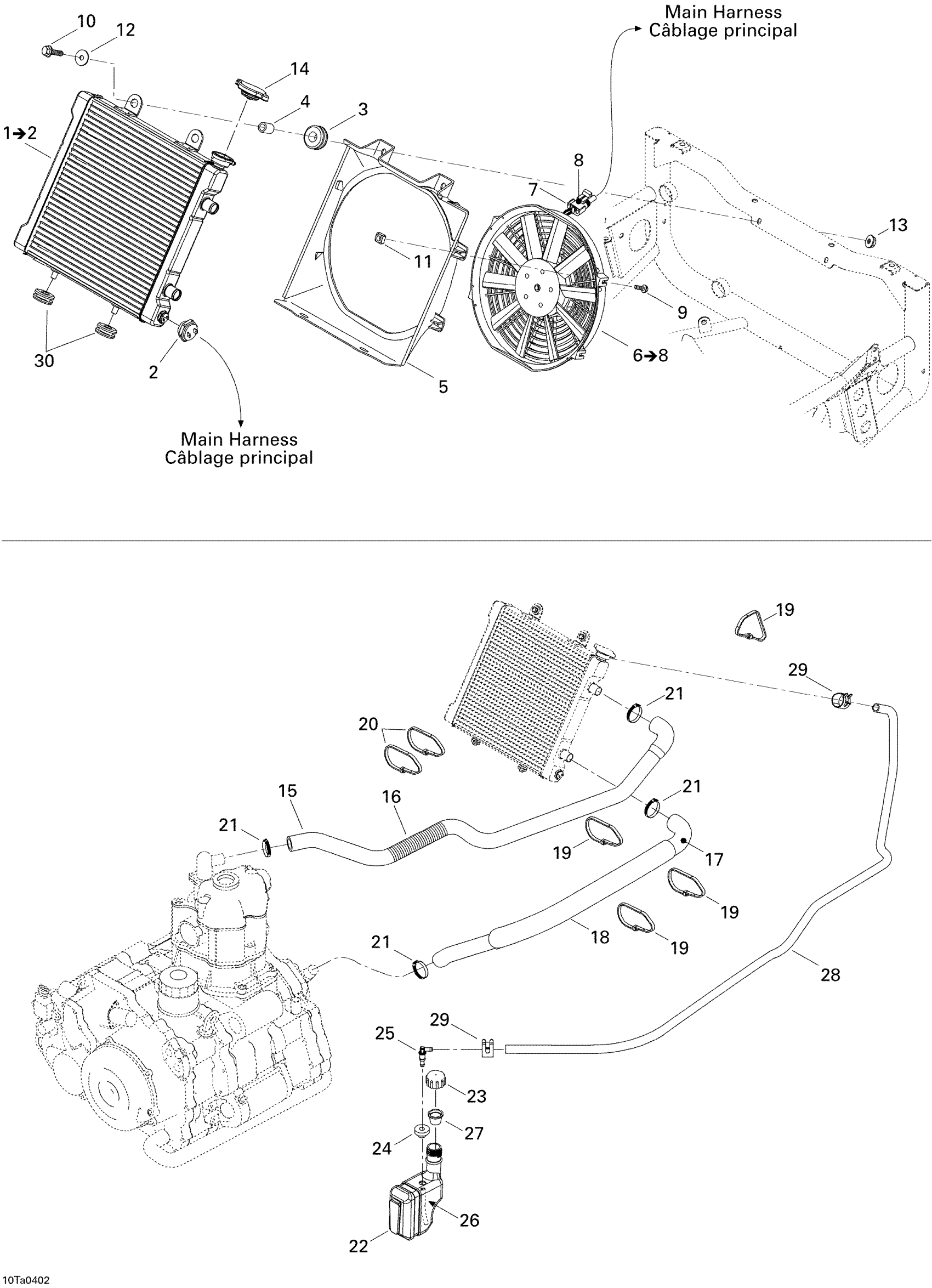

Can-Am Traxter Auto Std & XT, 2004 Cooling System Diagram

#

Description
Price

1

RADIATOR ASS'Y - Call your local BRP dealership | Includes 1 to 2

709200109

Unavailable

2

Temperature Sensor

715900095

$64.90

3

Grommet

709000582

$4.25

4

Bushing

293900019

$7.21

5

OUTER SHROUD - Call your local BRP dealership

709200111

Unavailable

6

FAN ASS'Y - Call your local BRP dealership | Includes 6 to 8

709200112

Unavailable

7

Male Connector, 2 Circuits

278000220

$11.02

8

Female Terminal

409007300

$0.36

9

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

10

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

11

Panel Nut M6 X 1.0

250100198

$1.73

12

Flat Washer

250200082

$0.35

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

14

Radiator Pressure Cap

709200207

$18.82

15

RADIATOR INLET HOSE - Call your local BRP dealership

709200060

Unavailable

16

PROTECTION SHIELD - Call your local BRP dealership

709200031

Unavailable

17

OUTLET HOSE - Call your local BRP dealership

709200043

Unavailable

18

PROTECTION SHIELD - Call your local BRP dealership

709200032

Unavailable

19

Tie-Rap 180 mm

414115200

$0.09

20

Tie Wrap 368 mm

293750008

$0.85

21

Norma Spring Clamp

293650109

$3.88

22

COOLANT TANK - Call your local BRP dealership

709200099

Unavailable

23

TANK CAP - Call your local BRP dealership

709200009

Unavailable

24

Grommet

709200285

$7.09

25

Elbow Male Connector

414580600

$3.50

26

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

27

PROTECTION CAP - Call your local BRP dealership

709200205

Unavailable

28

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

29

Spring Clamp

414554800

$0.81

30

Grommet

705003932

$2.89
