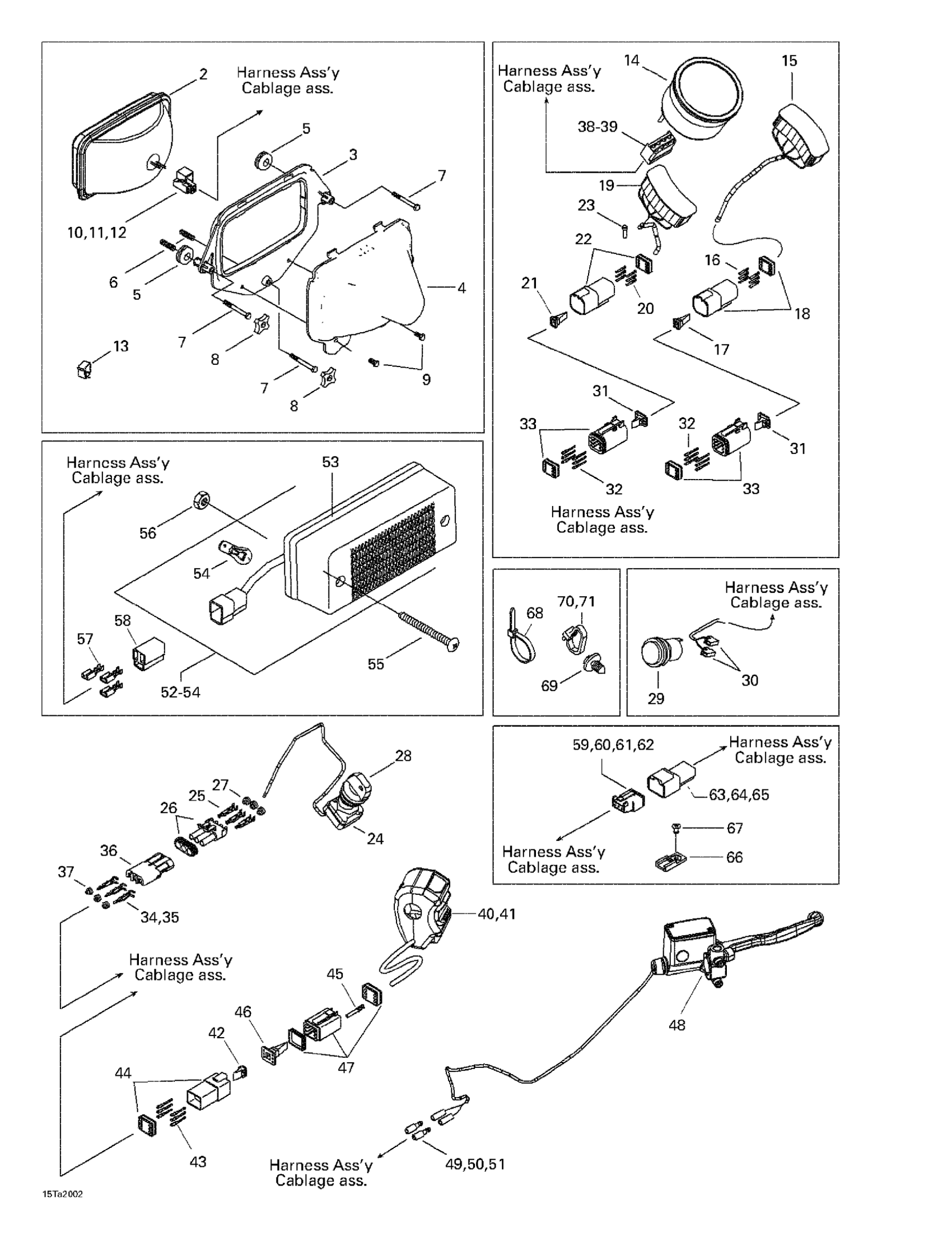

Can-Am Traxter, 7407/7408, 2000 Main Harness And Electrical Accessories Diagram

#

Description
Price

1

Harness Ass'y (Not Shown)

710000105

Unavailable

2

HEADLAMP - Call your local BRP dealership

710000001

Unavailable

3

Headlamp Support

705000022

Unavailable

4

Protector

705000023

Unavailable

5

Grommet

709000582

$4.25

6

Spring

517168600

$6.70

7

HEX. SCREW K40 X 40 - Call your local BRP dealership

250000008

Unavailable

8

Handle

572106600

$9.03

9

PHILLIPS SCREW K40 X 10 - Call your local BRP dealership

241641040

Unavailable

10

Female Terminal

710000027

Unavailable

11

Female Lock, 2 Circuits

710000028

Unavailable

12

FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

710000026

Unavailable

13

Clip

414227300

$1.40

14

Speedometer (MPH) (US)

710000021

Unavailable

14

Speedometer (KM/H)

710000037

Unavailable

15

RH Warning Lamp

710000007

Unavailable

16

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

17

Male Lock, 6 Circuits

409014600

Unavailable

18

Male Terminal Housing, 6 Circuits

409015200

Unavailable

19

LH Warning Lamp

710000008

Unavailable

20

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

21

Male Lock, 6 Circuits

409014600

Unavailable

22

Male Terminal Housing, 6 Circuits

409015200

Unavailable

23

Sealing Cap

293000052

$2.55

24

Ignition Switch Ass'y | Includes 24 - 27.

710000042

Unavailable

25

Female Terminal

278000223

$2.55

26

Male Housing, 3 Circuits

278000273

$7.59

27

Wire Seal

278000218

$3.48

28

BLANK KEY (B TYPE) - Call your local BRP dealership

710000101

Unavailable

28

BLANK KEY (A TYPE) - Call your local BRP dealership

710000137

Unavailable

29

Outlet Power Kit, 12 Volts

861507200

$30.52

30

Female Terminal

710000038

$4.19

31

FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership

409014900

Unavailable

32

FEMALE TERMINAL - Call your local BRP dealership

409015100

Unavailable

33

FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

409015400

Unavailable

34

Male Terminal

409004300

$5.30

35

Male Terminal | XT Models

278000222

$2.55

36

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

37

Wire Seal

278000218

$3.48

38

Female Terminal

710000036

Unavailable

39

Female Housing (8 Circuits)

710000035

Unavailable

40

Multi-Fonction Switch | Includes 25 to 29

710000015

Unavailable

41

Back Cover

709400033

Unavailable

42

FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership

409014900

Unavailable

43

FEMALE TERMINAL - Call your local BRP dealership

409015100

Unavailable

44

FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

409015400

Unavailable

45

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

46

Male Lock, 6 Circuits

409014600

Unavailable

47

Male Terminal Housing, 6 Circuits

409015200

Unavailable

48

Master Cylinder Ass'y

705600005

Unavailable

49

Insulated Sheath

278001007

$3.12

50

Insulated Sheath

278000770

$6.73

51

Female Terminal | DS 650 X

278001009

$2.55

52

Tail Lamp Housing | Includes 52 - 54.

710000002

Unavailable

53

TAIL LIGHT LENS, RED - Call your local BRP dealership

710000055

Unavailable

54

Bulb

520000758

$7.49

55

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

Unavailable

56

Hex. Flange Elastic Nut M5

233251414

$1.66

57

Female Terminal

561503100

Unavailable

58

Female Housing

409204300

Unavailable

59

PLUG - Call your local BRP dealership

515175303

Unavailable

60

Female Lock, 3 Circuits

515175248

Unavailable

61

FEMALE TERMINAL - Call your local BRP dealership

409015100

Unavailable

62

FEMALE TERMINAL HOUSING, 3 CIRC. - Call your local BRP dealership

515175249

Unavailable

63

MALE LOCK, 3 CIRCUITS - Call your local BRP dealership

710000043

Unavailable

64

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

65

MALE HOUSING, 3 CIRCUITS - Call your local BRP dealership

710000044

Unavailable

66

Clip

270000141

$8.33

67

Pop Rivet 3/16"

390402400

$0.25

68

Tie Wrap 368 mm

293750008

$0.85

69

Mount Dart

293730040

$0.86

70

Tie Wrap 142 mm

293750002

$0.88

71

Tie-Rap 180 mm

414115200

$0.09

72

Open Barrel Terminal

278001392

$4.00
