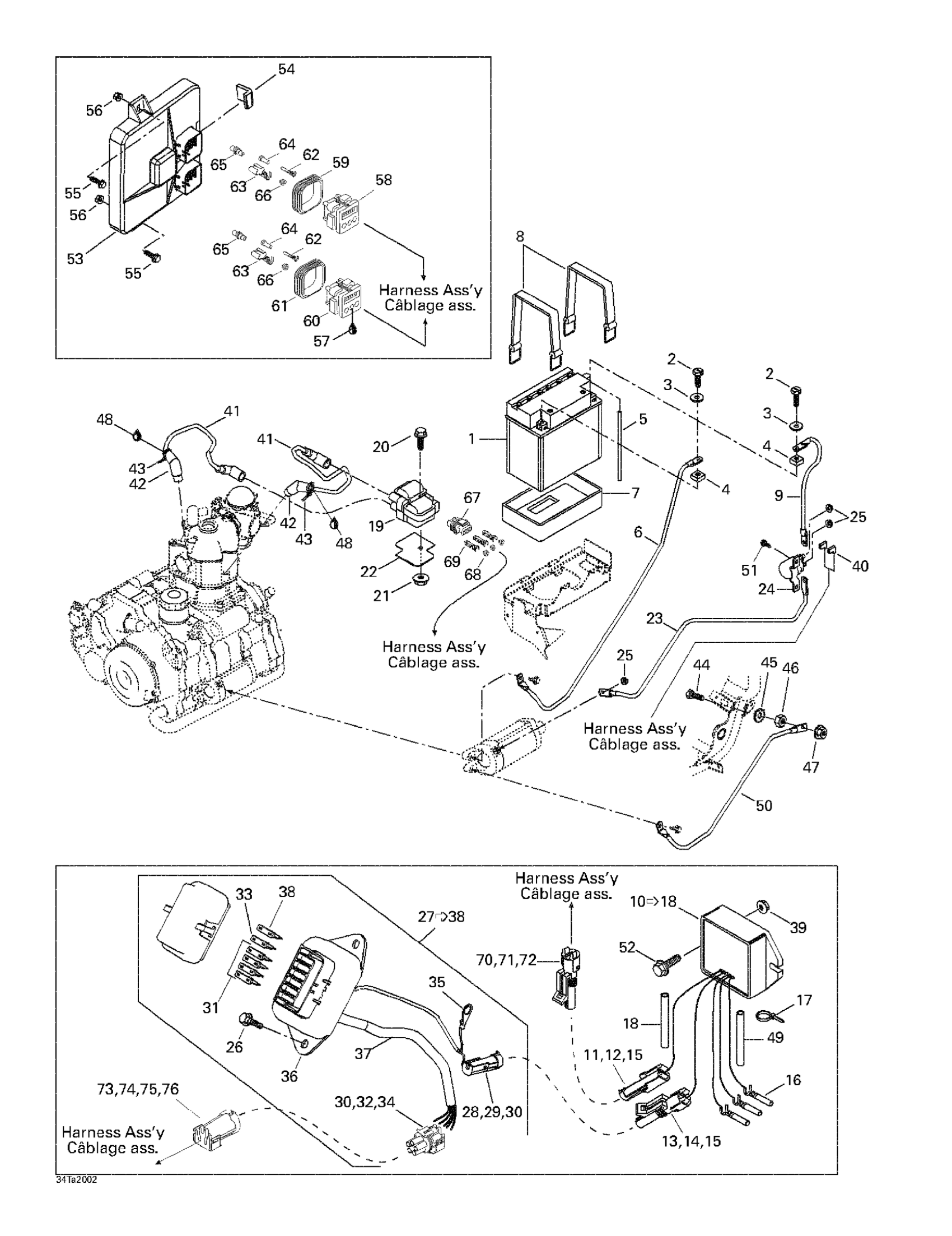

Can-Am Traxter, 7407/7408, 2000 Battery And Electrical Accessories Diagram

#

Description
Price

1

Battery 19A | Includes 5 to 8

278001756

$144.75

2

Hex. Screw M6 X 16

207161644

$0.61

3

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

4

Hex. Nut M6

232061414

$0.44

5

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

6

Ground Cable

710000023

Unavailable

7

Battery Lower Pad

278001234

Unavailable

8

Retainer Strap

293850097

$9.26

9

Positive Cable

710000011

Unavailable

10

VOLT REGULATOR ASS'Y - Call your local BRP dealership | Includes 18 to 26

710000100

Unavailable

11

Male Terminal | XT Models

278000222

$2.55

12

Female Housing, 1 Circuit

278000161

$8.72

13

Female Terminal

278000223

$2.55

14

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

15

Wire Seal

278000218

$3.48

16

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

17

Tie Wrap 94 mm | 4X4

293750001

$0.83

18

LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership

409901300

Unavailable

19

Ignition Coil

278001546

$129.32

20

Hex. Flange Screw M6 X 45

207664544

$1.07

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

22

Insulator Pad

710000073

$10.30

23

STARTER POSITIVE CABLE - Call your local BRP dealership

710000136

Unavailable

24

Starter Relay

515176011

$51.97

25

Hex. Elastic Stop Nut M6

232561600

$0.92

26

Hex. Flange Screw M6 X 16

210261650

$1.22

27

Fuse Holder | Includes 27 - 38.

710000092

Unavailable

28

Male Terminal

409004300

$5.30

29

Female Housing, 1 Circuit

278000161

$8.72

30

Wire Seal

278000218

$3.48

Wire Seal

710000048

$5.10

31

Fuse, 15 Amperes

278000343

$2.72

32

Female Terminal

409007300

$0.36

33

Fuse, 20 Amperes

409003900

$3.12

34

Female Housing, 5 Circuit

710000106

Unavailable

35

Open Barrel Terminal

278001392

$4.00

36

Fuse Box

710000029

Unavailable

37

Tubing 6 Mm 3000Mm Long

219704425

$12.75

38

Fuse, 30 Amperes

410917200

$3.12

39

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

40

Female Terminal

409010300

$4.00

41

Ens Fil Bougie *Wire-Spark Kit | Includes 54 to 57

703500744

$59.67

42

Spark Plug Connector

420265248

$30.57

43

Tie Wrap 94 mm | 4X4

293750001

$0.83

44

Hex. Screw M6 X 25

207162544

$1.01

45

External Serrated Lock Washer 6 mm

234461608

$0.92

46

Hex. Nut M6

232061414

$0.44

47

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

48

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

49

LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership

409901300

Unavailable

50

Battery Ground Cable

710000022

Unavailable

51

Screw Hex. M6.3 x 19

210661940

Unavailable

52

Hex. Flange Screw M6 X 20

207662044

$1.66

53

Electronic Module Calibrated

710000179

Unavailable

54

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

55

Hex. Flange Screw M6 X 20

207662044

$1.66

56

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

57

*(Ormd) *Deoxit Aerosol *

293550034

$38.99

58

Male Terminal Housing, 26 Circuits

278001062

Unavailable

59

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

60

MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership

278001063

Unavailable

61

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

62

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

63

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

64

SEAL - Call your local BRP dealership

409013900

Unavailable

65

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

66

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

67

Male Housing, 3 Circuits

278000997

$15.57

68

Wire Seal

278000999

$2.55

69

Female Terminal

278000998

$3.48

70

Wire Seal

710000048

$5.10

71

Female Terminal

409007300

$0.36

72

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

73

MALE HOUSING, 5 CIRCUITS - Call your local BRP dealership

710000107

Unavailable

74

Male Terminal

409004300

$5.30

75

Wire Seal

278000218

$3.48

76

CIRCLIP - Call your local BRP dealership

278000048

Unavailable
