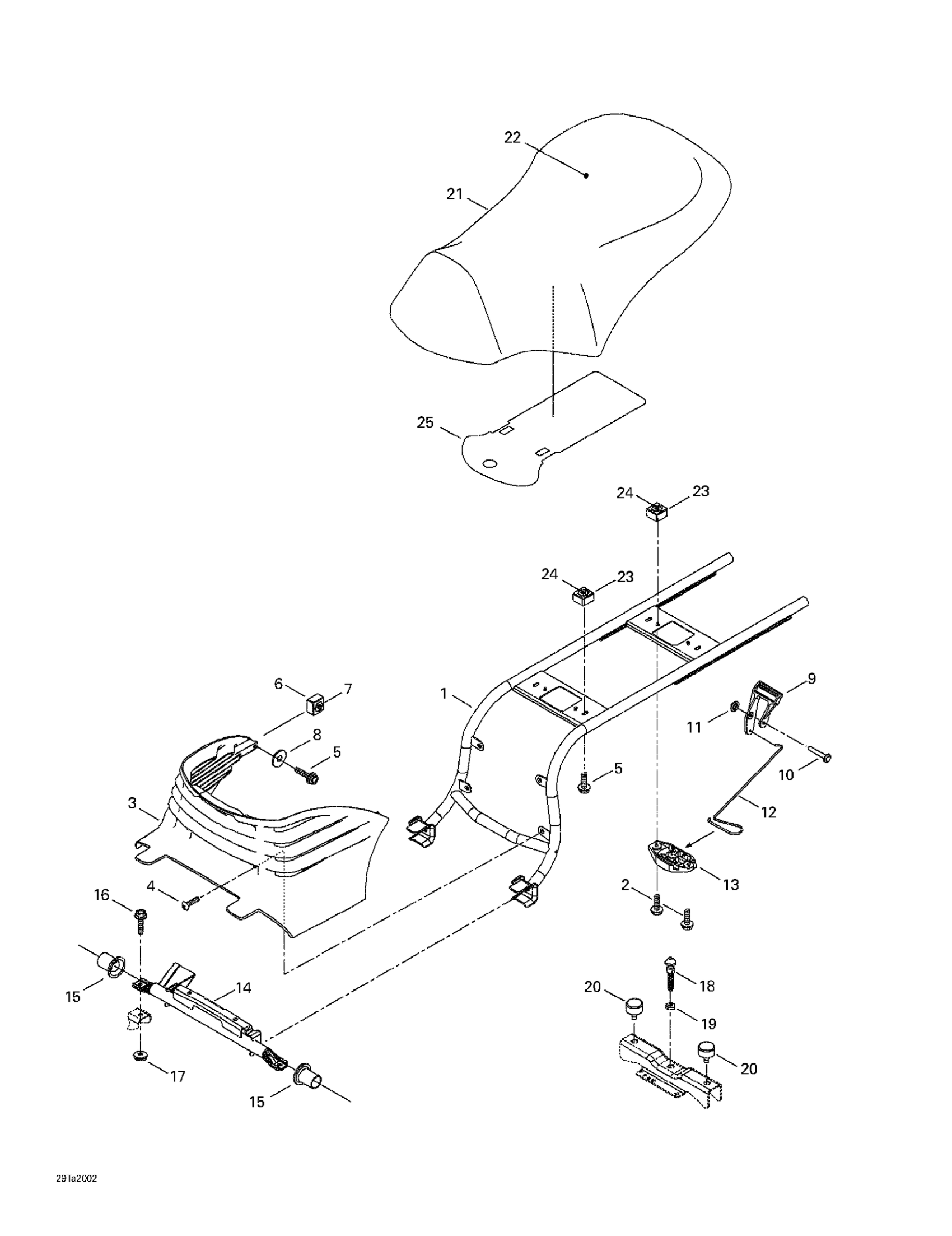

Can-Am Traxter, 7407/7408, 2000 Seat Diagram

#

Description
Price

1

Seat Support, Black

708000003

Unavailable

2

Hex. Flange Screw M6 X 25

207662544

$0.53

3

Engine Cover

705000187

$117.66

4

Hex. Forming Screw M6 X 10

210261050

$1.42

5

Hex. Flange Screw M6 X 16

207661644

$0.61

6

Nut Housing M6

708000042

Unavailable

7

Hex. Nut M6

232061600

$0.91

8

Flat Washer

224061201

$1.11

9

Lever Latch

708000010

Unavailable

10

SOLID RIVET 3/16 X 1-7/8 - Call your local BRP dealership

293150062

$1.08

11

Push Nut

389804300

$0.43

12

SPRING - Call your local BRP dealership

708000015

Unavailable

13

Latch Base

708000034

Unavailable

14

Seat Pivot, Black

708000044

Unavailable

15

SEAT BUSHING - Call your local BRP dealership

708000019

$4.99

16

Hex. Flange Screw M8 X 20

207682044

$0.92

17

Hex. Flange Elastic Nut M8

233281414

$1.14

18

LATCH STUD - Call your local BRP dealership

291000689

Unavailable

19

Hex. Jam Nut M10

232100600

$1.85

20

Rubber Stopper

708000758

$9.37

21

Seat Ass'y | Includes 21 - 24.

708000048

Unavailable

22

Seat Cover

708000024

Unavailable

23

NUT HOUSING ASS'Y M6 - Call your local BRP dealership | Includes 2 To 3

708000046

Unavailable

24

Elastic Stop Nut M6

232561414

$1.55

25

Reflective Sheet

708000029

Unavailable
