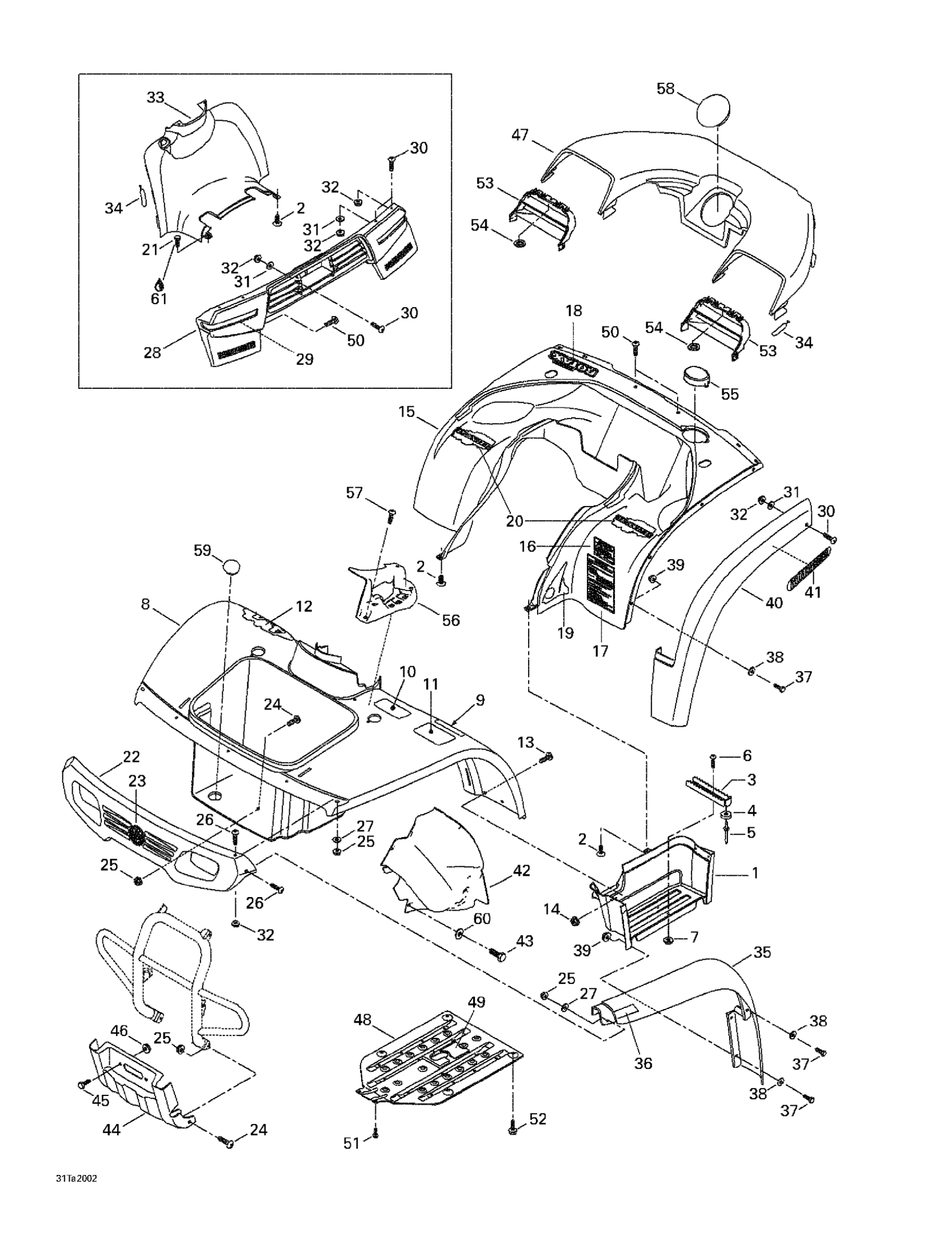

Can-Am Traxter, 7407/7408, 2000 Body And Accessories Diagram

#

Description
Price

1

RH Footboard, Black

705000017

Unavailable

LH FOOTBOARD, BLACK - Call your local BRP dealership

705000018

$25.35

2

Black, Dart

293730011

$0.79

3

Foot Peg (7431 @ 7434)

705000228

Unavailable

4

Rubber Stopper

415018100

$2.35

5

Pop Rivet 1/8", Black

293150189

$0.25

6

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

$3.17

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

8

Front Fender Kit (Red) | Includes 8 - 12. 7405/7406.

703500066

Unavailable

Front Fender Kit (Green) | 7407/7408.

703500067

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

12

RH Rear Label (Red) | 7400/7401. 7413/7414. 7415/7416.

704900028

Unavailable

Front Label RH | 7417/7418.

704900068

Unavailable

13

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

$3.17

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

15

Rear Fender Kit (7419-7420) | Includes 15 - 20. 7405/7406.

703500068

Unavailable

Rear Fender Kit (7421-7422) | 7407/7408.

703500069

Unavailable

16

Warning Label | Includes 16 - 17.

704900035

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

RH Rear Fender <> Decal (Red) | 7400/7401. 7413/7414. 7415/7416.

704900020

Unavailable

Rotax Label | 7417/7418.

704900063

Unavailable

19

LH Lateral Label (Red) | 7400/7401. 7413/7414. 7415/7416.

704900022

Unavailable

Lateral Label LH | 7417/7418.

704900065

Unavailable

RH Lateral Label (Red) | 7400/7401. 7413/7414. 7415/7416.

704900023

Unavailable

Lateral Label RH | 7417/7418.

704900066

Unavailable

20

RH Fender Decal (Red) | 7400/7401. 7413/7414. 7415/7416.

704900029

Unavailable

RH Fender Decal (Green) | 7417/7418.

704900062

Unavailable

LH Fender Decal (Red) | 7400/7401. 7413/7414. 7415/7416.

704900030

Unavailable

LH Fender Decal (Green) | 7417/7418.

704900064

Unavailable

21

Hex. Flange Screw M6 X 12

207661244

$1.70

22

Front Fascia Ass'y, black | Includes 21 To 22

703500011

Unavailable

23

BRP Logo 68mm

516008739

$12.87

24

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

$3.17

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

26

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

$3.17

27

Flat Washer

224060201

$1.15

28

REAR FASCIA ASS'Y, BLACK - Call your local BRP dealership | Includes 12 To 14

703500012

$249.97

29

RH Rear Reflector

704900085

Unavailable

LH Rear Reflector

704900086

Unavailable

30

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

$3.17

31

Flat Washer

224060201

$1.15

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

33

Tank Cover

705000010

Unavailable

34

Windshield Latch

570023800

$3.58

35

LH Front Mudguard Kit | Includes 35 - 36.

703500014

Unavailable

RH Front Mudguard Kit

703500015

Unavailable

36

LH FRONT REFLECTOR - Call your local BRP dealership

705000083

$8.43

RH FRONT REFLECTOR - Call your local BRP dealership

705000026

Unavailable

37

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

38

Flat Washer

224060201

$1.15

39

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

40

LH Rear Mudguard | Includes 40 - 41.

703500016

Unavailable

RH Rear Mudguard

703500017

Unavailable

41

Bombardier Label

704900076

Unavailable

42

LH TANK PROTECTOR - Call your local BRP dealership

705000133

$21.51

RH TANK PROTECTOR - Call your local BRP dealership

705000134

$21.51

43

Screw Hex. M6.3 x 19

210661940

Unavailable

44

Front Protection Plate, black

705000135

Unavailable

45

Hex. Flange Screw M10 X 25

207602544

$1.33

46

Hex. Flange Elastic Nut M10

233201414

$1.26

47

Fender Cover (Red) | 7405/7406.

705000192

Unavailable

Fender cover | 7407/7408.

705000193

Unavailable

48

Plate Ass'y | Includes 48 - 49.

705000196

Unavailable

49

Rubber Protector

293830084

Unavailable

50

PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership

732600009

Unavailable

51

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

52

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

53

LH Grill, Black

705000180

Unavailable

RH Grill, Black

705000181

Unavailable

54

PUSH NUT - Call your local BRP dealership

250100000

$0.43

55

COVER, BLACK - Call your local BRP dealership

705000132

$6.12

56

Lever Indicator

705000081

Unavailable

57

Tuflock Phillips Plastic Screw

414745900

$1.30

58

Bottom Pan Cap

570277400

Unavailable

59

Rubber Cover

570041600

Unavailable

60

Flat Washer

224061201

$1.11

61

Loctite 243, 10 ml

293800060

$20.77
