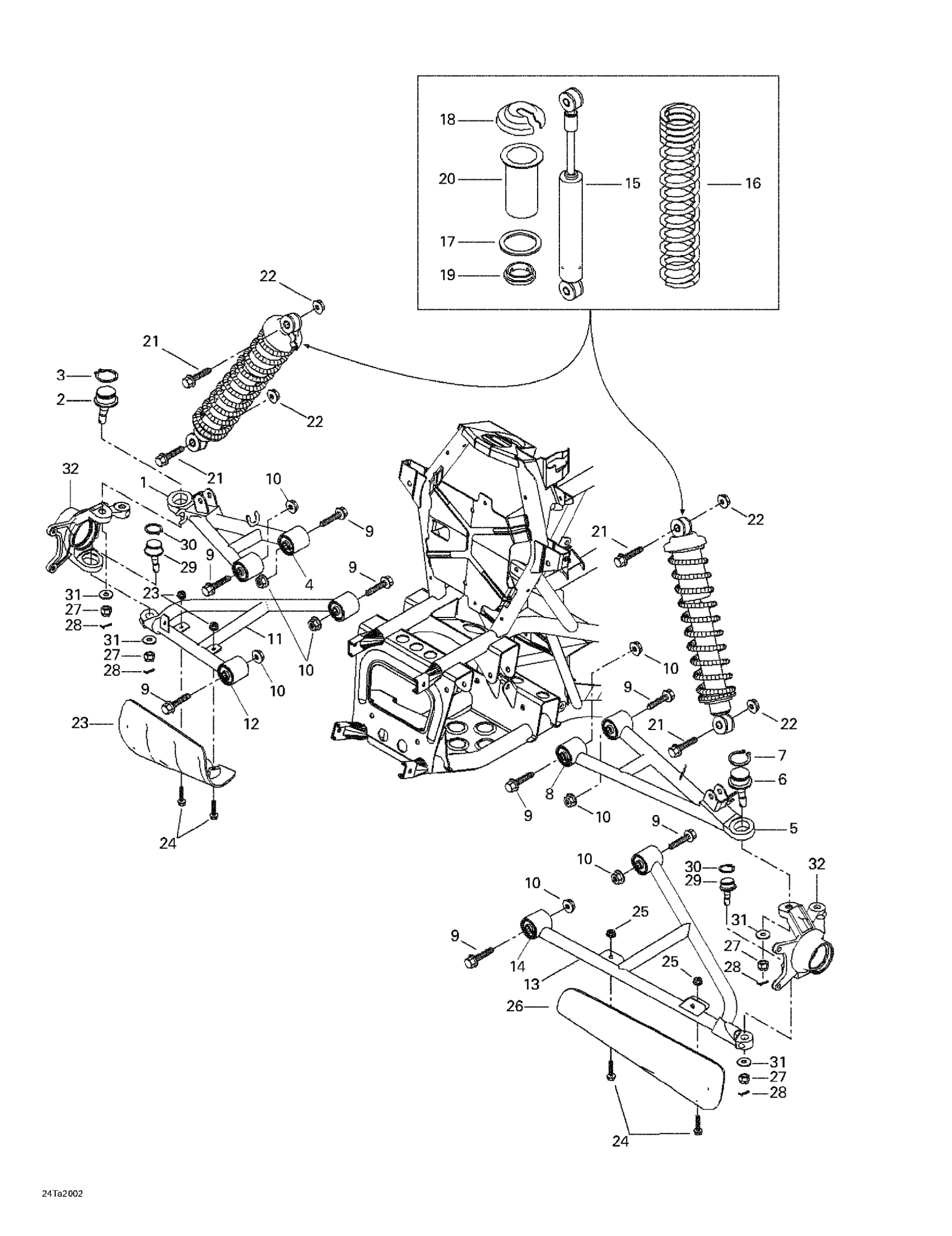

Can-Am Traxter, 7407/7408, 2000 Front Suspension Diagram

#

Description
Price

1

RH Upper Arm | 7413/7414. 7415/7416. 7417/7418.

703500042

Unavailable

2

Ball Joint

706200653

$40.27

3

Circlip 32 mm

293370009

$1.33

4

Cushion

706200025

Unavailable

5

LH Upper Arm | 7413/7414. 7415/7416. 7417/7418.

703500043

Unavailable

6

Ball Joint

706200653

$40.27

7

Circlip 32 mm

293370009

$1.33

8

Cushion

706200025

Unavailable

9

Hex. Flange Screw M10 X 70

207607046

$2.82

10

Hex. Flange Elastic Nut M10

233201436

$1.74

11

RH Lower Arm | 7413/7414. 7415/7416. 7417/7418.

706200102

Unavailable

12

Cushion

706200025

Unavailable

13

LH Lower Arm | 7413/7414. 7415/7416. 7417/7418.

706200103

Unavailable

14

Cushion

706200025

Unavailable

15

Front Shock

706200005

Unavailable

16

FRONT SPRING - Call your local BRP dealership

706200006

Unavailable

17

SPRING SEAT - Call your local BRP dealership

706000533

Unavailable

18

Spring Stopper

706200881

$10.30

19

Spring seat

706000007

Unavailable

20

PROTECTOR - Call your local BRP dealership

503139800

Unavailable

21

HEX. FLANGED SCREW M10 X 45 - Call your local BRP dealership

207604544

Unavailable

22

Hex. Flange Elastic Nut M10

233201414

$1.26

23

Arm Protector R.H

706200007

Unavailable

24

Hex. Flange Screw M6 X 16

207661644

$0.61

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

26

Arm Protector L.H

706200009

Unavailable

27

Hex. Castellated Nut M12

232221414

$2.61

28

Cotter Pin

211400017

$0.25

29

Ball Joint

706200653

$40.27

30

Circlip 32 mm

293370009

$1.33

31

Hardened Washer

503175400

Unavailable

32

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable
