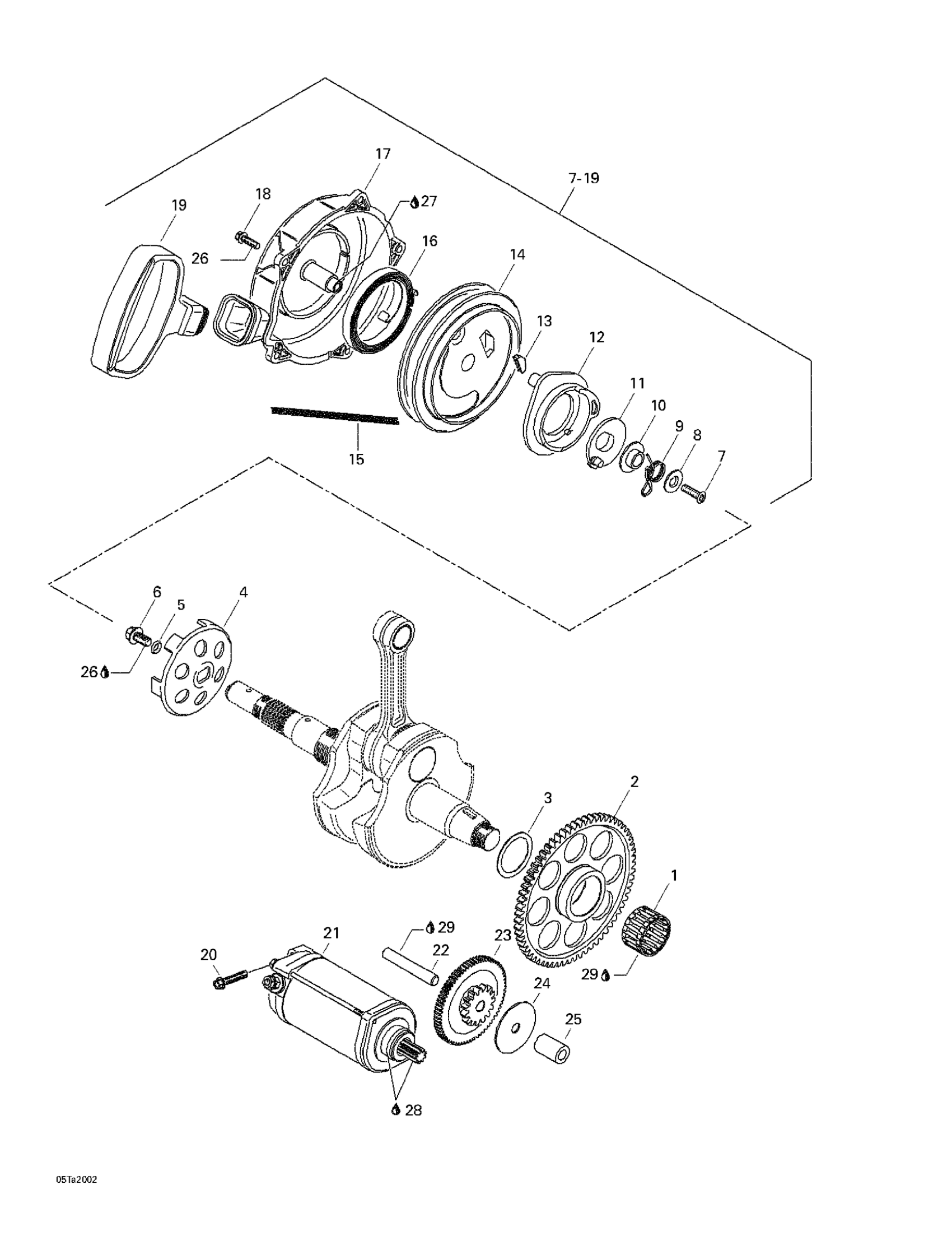

Can-Am Traxter, 7407/7408, 2000 Rewind Starter, Electric Starter Diagram

#

Description
Price

1

Needle Cage

711632190

Unavailable

2

Ring Gear 65 Teeth

711634940

Unavailable

3

Thrust Washer

711244290

Unavailable

4

Starting Pulley

420852501

$27.58

5

O Ring

711650710

Unavailable

6

Hex. Flange Screw M8 x 20

711241720

Unavailable

7

Rewind Starter Ass'y | Includes 7 - 19.

711296150

Unavailable

7

Screw Plastite M6 x 20

711241730

Unavailable

8

Flat Washer

420244320

$7.21

9

Locking Spring

420938989

$18.63

10

STAGE SLEEVE - Call your local BRP dealership

420847927

Unavailable

11

Lock Pawl

420852306

$15.64

12

Pawl

420852299

$22.36

13

Key Clamp

420852070

$3.50

14

Rope Sheave

420852283

$51.97

15

Was 412500100 Rope-Starter

219704403

$9.85

16

Rewind Spring

420939115

$25.32

17

Starter Rope Housing

420610930

$54.45

18

Hex. Flange Screw M6 x 20

711241861

Unavailable

19

Starting Grip

711852515

Unavailable

20

Hex. Flange Screw M6 x 30

711241941

Unavailable

21

Electric Starter Ass'y

711296120

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

21

O-Ring

420250140

$7.05

21

Oil Seal

420250130

$16.39

22

Needle Pin

420229475

$12.29

23

Double Gear 15/67 Teeth

711634970

Unavailable

24

Thrust Washer

711227620

Unavailable

25

Spacer

711847485

Unavailable

26

Loctite 243, 10 ml

293800060

$20.77

27

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

28

Molykote G-N, 50 g

420297433

$22.72

29

Not Available As Spare Part - Friction Washer

Unavailable
