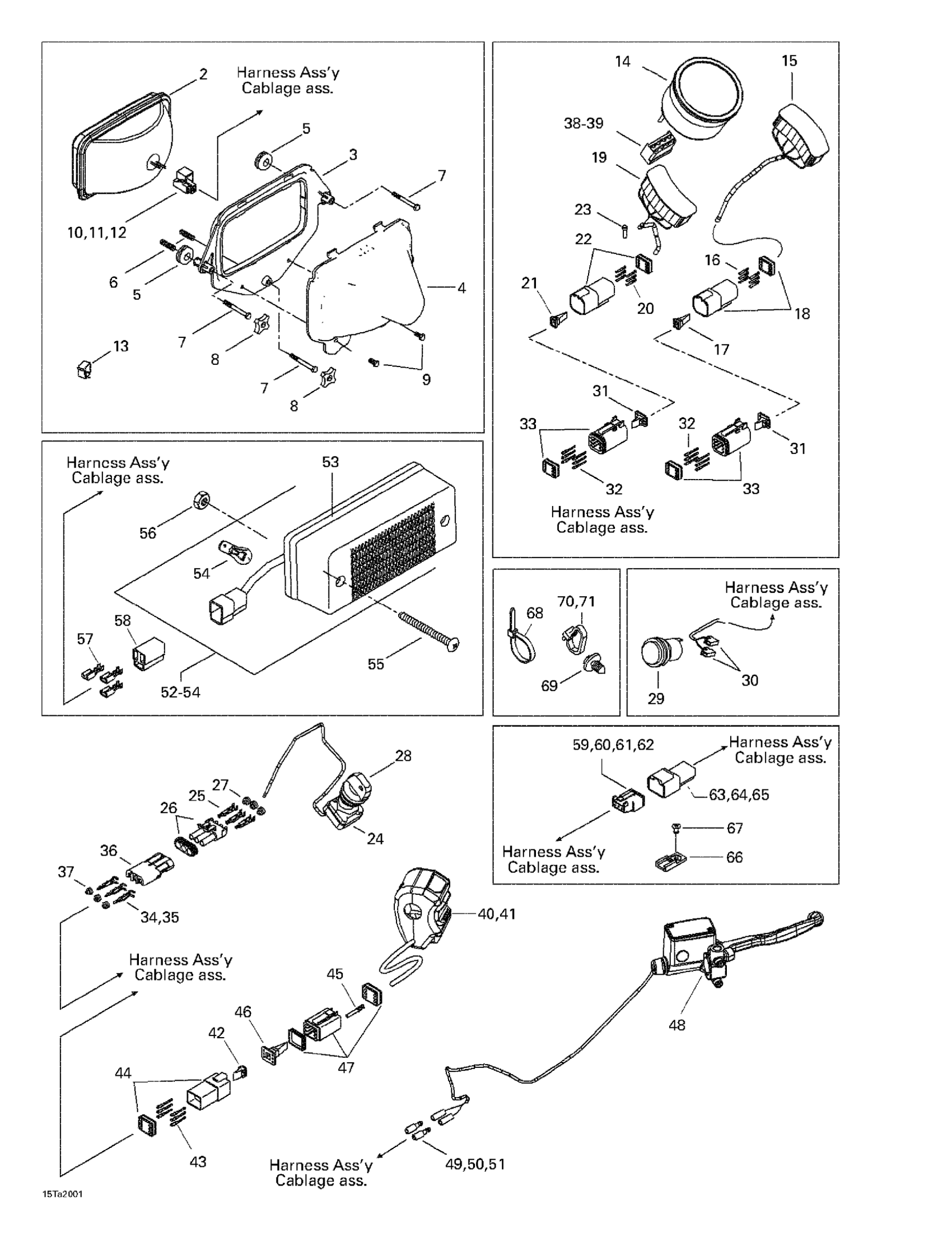

Can-Am Traxter, 7400/ 7401/7413/7414, 1999 Main Harness And Electrical Accessories Diagram

#

Description
Price

1

Harness Ass'y (Not Shown) | 7400/7401. 7413/7414.

710000004

Unavailable

1

Harness Ass'y (Not Shown) | 7415/7416. 7417/7418.

710000096

Unavailable

2

HEADLAMP - Call your local BRP dealership

710000001

Unavailable

3

Headlamp Support

705000022

Unavailable

4

Protector

705000023

$22.28

5

Grommet

709000582

$4.38

6

Spring

517168600

$6.91

7

HEX. SCREW K40 X 40 - Call your local BRP dealership

250000008

$1.09

8

Handle

572106600

$9.31

9

PHILLIPS SCREW K40 X 10 - Call your local BRP dealership

241641040

$0.49

10

Female Terminal

710000027

Unavailable

11

Female Lock, 2 Circuits

710000028

Unavailable

12

FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

710000026

$8.43

13

Clip

414227300

$1.45

14

Speedometer (MPH) (US)

710000021

Unavailable

14

Speedometer (KM/H)

710000037

Unavailable

15

RH Warning Lamp

710000007

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

$2.48

18

Not Available As Spare Part - Friction Washer

Unavailable

19

LH Warning Lamp

710000008

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

$2.48

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Sealing Cap

293000052

$2.55

24

Ignition Switch Ass'y | Includes 24 - 27.

710000042

Unavailable

25

Female Terminal

278000223

$2.55

26

Male Housing, 3 Circuits

278000273

$7.59

27

Wire Seal

278000218

$3.48

28

BLANK KEY (B TYPE) - Call your local BRP dealership

710000101

$15.35

28

BLANK KEY (A TYPE) - Call your local BRP dealership

710000137

Unavailable

29

Outlet Power Kit, 12 Volts

861507200

$30.52

30

Female Terminal

710000038

$4.60

31

FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership

409014900

$3.05

32

FEMALE TERMINAL - Call your local BRP dealership

409015100

$3.97

33

FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

409015400

$9.48

34

Male Terminal

409004300

$5.46

35

Male Terminal | XT Models

278000222

$2.55

36

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

37

Wire Seal

278000218

$3.48

38

Female Terminal

710000036

$4.68

39

Female Housing (8 Circuits)

710000035

Unavailable

40

Multi-Fonction Switch | Includes 25 to 29

710000015

Unavailable

41

Back Cover

709400033

$26.89

42

FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership

409014900

$3.05

43

FEMALE TERMINAL - Call your local BRP dealership

409015100

$3.97

44

FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

409015400

$9.48

45

Not Available As Spare Part - Friction Washer

Unavailable

46

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

$2.48

47

Not Available As Spare Part - Friction Washer

Unavailable

48

Master Cylinder Ass'y

705600005

Unavailable

49

Insulated Sheath

278001008

$3.20

50

Insulated Sheath

278000770

$7.60

51

Female Terminal | DS 650 X

278001009

$2.55

52

Tail Lamp Housing | Includes 52 - 54.

710000002

Unavailable

53

TAIL LIGHT LENS, RED - Call your local BRP dealership

710000055

Unavailable

54

Bulb

520000758

$7.49

55

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

$0.91

56

Hex. Flange Elastic Nut M5

233251414

$1.66

57

Female Terminal

561503100

Unavailable

58

Female Housing

409204300

Unavailable

59

PLUG - Call your local BRP dealership

515175303

$4.58

60

Female Lock, 3 Circuits

515175248

Unavailable

61

FEMALE TERMINAL - Call your local BRP dealership

409015100

$3.97

62

FEMALE TERMINAL HOUSING, 3 CIRC. - Call your local BRP dealership

515175249

$13.82

63

MALE LOCK, 3 CIRCUITS - Call your local BRP dealership

710000043

$5.46

64

MALE TERMINAL - Call your local BRP dealership

409014800

$3.14

65

MALE HOUSING, 3 CIRCUITS - Call your local BRP dealership

710000044

$23.51

66

Clip

270000141

$8.33

67

Pop Rivet 3/16"

390402400

$0.25

68

Tie Wrap 368 mm

293750008

$0.85

69

Mount Dart

293730040

$0.86

70

Tie Wrap 142 mm

293750002

$0.88

71

Tie-Rap 180 mm

414115200

$0.09

72

Not Available As Spare Part - Friction Washer

Unavailable

73

Open Barrel Terminal

278001392

$4.12
