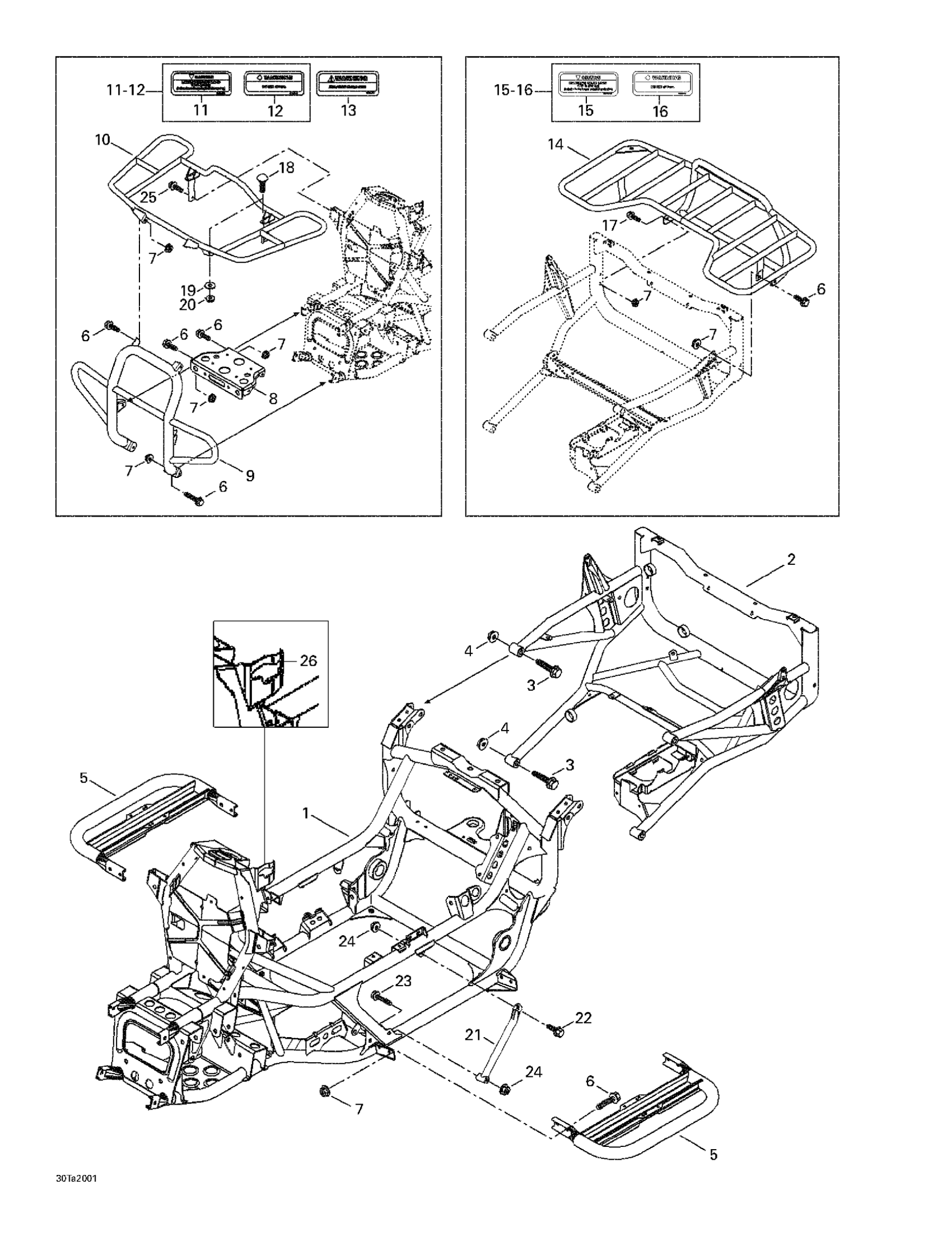

Can-Am Traxter, 7400/ 7401/7413/7414, 1999 Frame And Luggage Racks Diagram

#

Description
Price

1

Frame

705200001

Unavailable

2

Frame Extention

705200002

Unavailable

3

Hex. Flange Screw M10 X 55

207605544

$2.78

4

Hex. Flange Elastic Nut M10

233201414

$1.26

5

Footrest (silver)

705000008

Unavailable

6

Hex. Flange Screw M8 X 20

207682044

$0.92

7

Hex. Flange Elastic Nut M8

233281414

$1.14

8

Winch Latch

705200068

$22.94

9

Front bumper

705000001

Unavailable

10

Front Luggage Rack Ass'y | Includes 10 - 13. 7400/7401. 7413/7414.

703500103

Unavailable

Front Luggage Rack Ass'y | 7415/7416. 7417/7418.

703500053

Unavailable

11

Warning Label, Front Load | Includes 8 - 9.

704900037

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Warning Label, Tray Cover

704900038

Unavailable

14

Rear Luggage Rack Ass'y | Includes 14 - 16. 7400/7401. 7413/7414.

703500020

Unavailable

Rear Luggage Rack Ass'y (7419 to 7422) | 7415/7416. 7417/7418.

703500054

Unavailable

15

Warning Label | Includes 6 - 7.

704900036

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Hex. Flange Screw M8 X 50

207685044

$1.39

18

Carriage Bolt M6 x 25 | 7400/7401. 7413/7414.

207762581

Unavailable

TRUSS PHILLIPS SCREW M6 X 25 - Call your local BRP dealership

250000035

$1.20

19

Flat Washer

224060201

$1.15

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

21

Removable Brace, Black

705200143

Unavailable

22

Hex. Flange Screw M8 X 20

207682044

$0.92

23

Hex. Flange Screw M8 X 50

207685044

$1.39

24

Hex. Flange Elastic Nut M8

233281414

$1.14

25

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

26

Shift Patern

705200351

Unavailable
