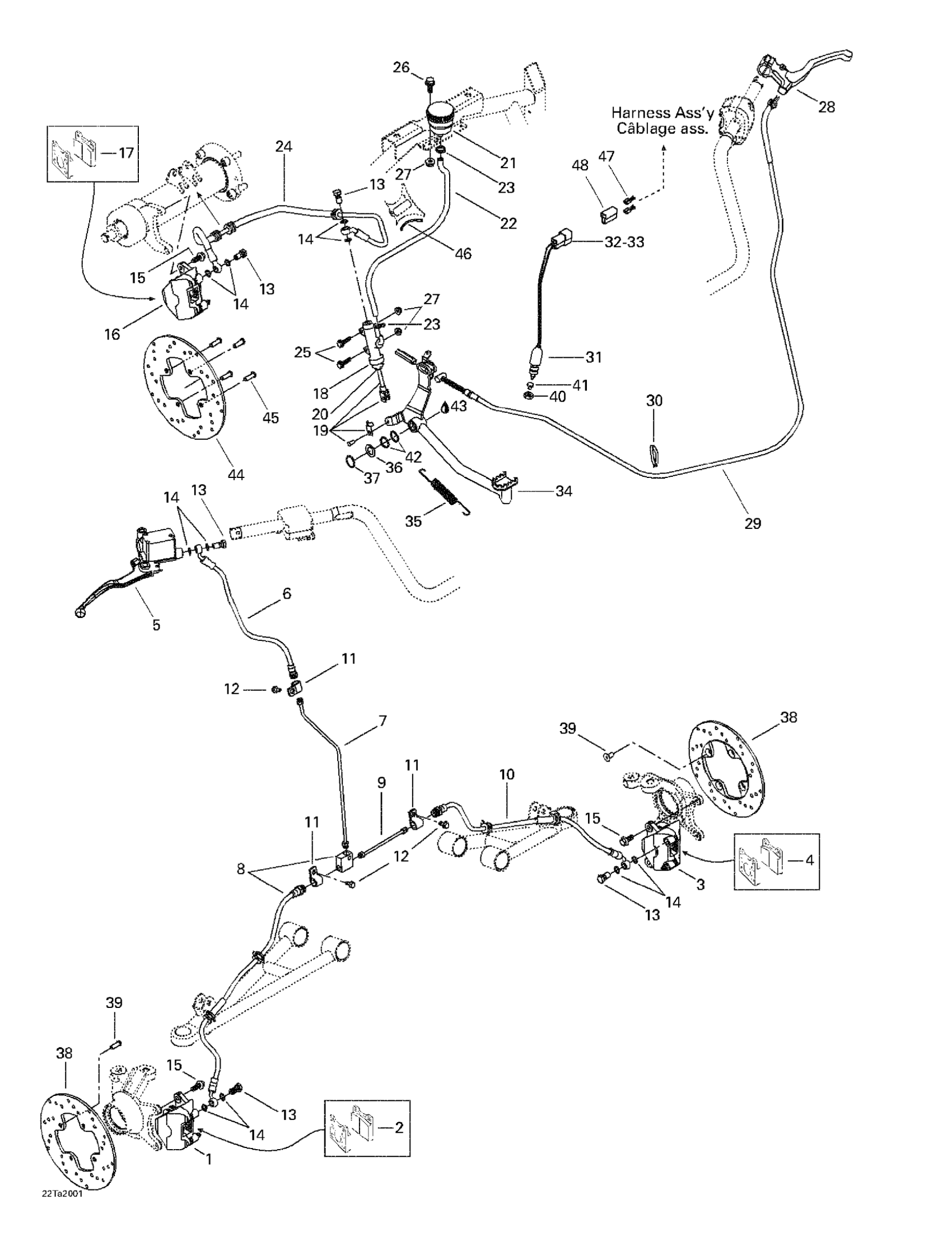

Can-Am Traxter, 7400/ 7401/7413/7414, 1999 Hydraulic Brake Diagram

#

Description
Price

1

RH CALIPER ASS'Y - Call your local BRP dealership

705600028

Unavailable

2

PAD_BRAKE KIT - Call your local BRP dealership

705600041

$39.20

3

LH Caliper Ass'y

705600029

Unavailable

4

PAD_BRAKE KIT - Call your local BRP dealership

705600041

$39.20

5

Master Cylinder Ass'y

705600005

Unavailable

6

Brake Handle Hose

705600007

Unavailable

7

Vertical tube

705600036

Unavailable

8

Flexible Hose R.H

705600020

Unavailable

9

Horizontal tube

705600038

Unavailable

10

Flexible Hose L.H

705600059

Unavailable

11

Open Clamp

705600040

$12.91

12

Hex. Flange Screw M6 X 16

210261650

$1.22

13

Banjo Bolt

414920500

$8.49

14

Washer

414920600

$1.52

15

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

16

RH Rear Caliper | Includes 16 - 17.

705600031

Unavailable

17

PAD_BRAKE KIT - Call your local BRP dealership

705600041

$39.20

18

Master Cylinder | Includes 18 - 0.

705600006

Unavailable

19

Pusher

705600021

Unavailable

20

Boot Bellow

705600075

Unavailable

21

OIL HOUSING - Call your local BRP dealership

705600009

$20.74

22

Oil Housing Hose | 7400/7401.

705600034

Unavailable

Oil Housing Hose | 7413/7414.

705600076

Unavailable

Oil Housing Hose | 7415/7416. 7417/7418.

705600102

Unavailable

23

Oetiker Clamp

293650042

$1.40

24

BRAKE LINE - Call your local BRP dealership

705601393

$69.97

25

Hex. Flange Screw M6 X 25

207662544

$0.53

26

Hex. Flange Screw M6 X 16

207661644

$0.61

27

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

28

Brake Handle | Includes 61 To 66

705600011

Unavailable

29

REAR BRAKE CABLE - Call your local BRP dealership

705600099

Unavailable

REAR BRAKE CABLE - Call your local BRP dealership

705600099

Unavailable

30

Tie Wrap 368 mm

293750008

$0.85

31

Brake Switch

515175653

$15.57

32

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

33

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

34

Brake Pedal

705600106

Unavailable

35

Brake Pedal Spring | 7400/7401. 7413/7414.

705600030

$18.43

BRAKE PEDAL SPRING - Call your local BRP dealership

705600107

$18.43

36

WASHER - Call your local BRP dealership

503107800

$2.03

37

CIRCLIP - Call your local BRP dealership

293370012

$2.99

38

Brake Disk (Front) (7431 @ 7434)

705600003

Unavailable

39

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

40

Switch Nut

250100002

Unavailable

41

Plunger Cap

570151100

$10.14

42

O-RING - Call your local BRP dealership

293300053

$5.35

43

GREASE SYNTHETIC 14OZ/400G - Call your local BRP dealership

779162

Unavailable

44

Brake Disk 220 mm (Rear)

705600033

Unavailable

45

Socket Screw M8 x 16 (S. Grip)

205881646

Unavailable

46

TRIM 30000MM LONG - Call your local BRP dealership

219704405

Unavailable

47

Female Terminal

561503100

Unavailable

48

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable
