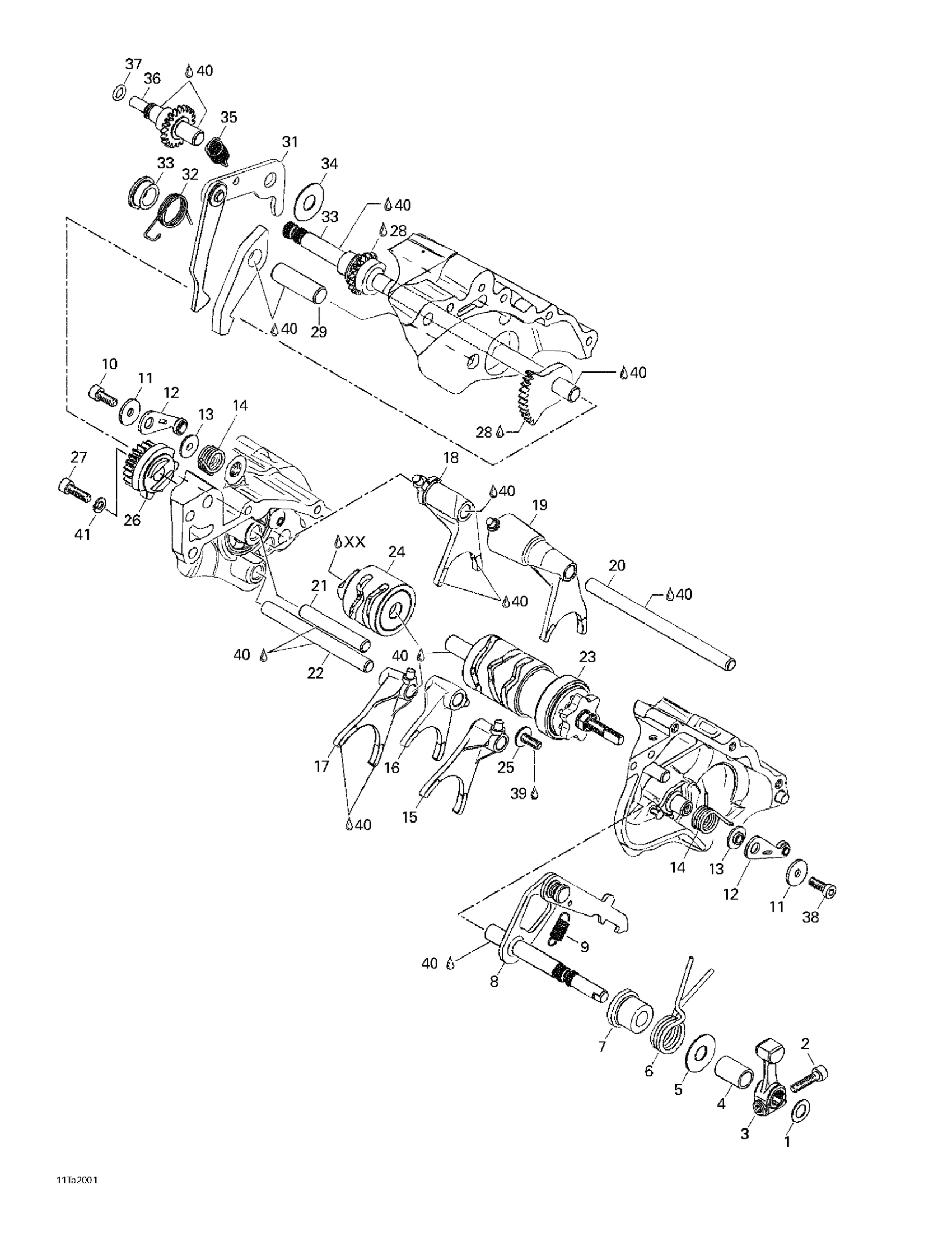

Can-Am Traxter, 7400/ 7401/7413/7414, 1999 Gear Shift Diagram

#

Description
Price

1

Thrust Washer

711627100

$4.58

2

Socket Head Screw M6 X 25

205062544

$0.88

3

Gear Shift Lever

711257090

Unavailable

4

Distance Sleeve

711247020

Unavailable

5

THRUST WASHER - Call your local BRP dealership

420227980

$7.39

6

Shaft Spring

711239084

$103.82

7

Collar Sleeve

711247050

Unavailable

8

Shift Shaft with Pawl Ass'y

711220536

$103.82

9

Tension Spring

711239540

$9.97

10

Socket Head Screw M6 x 16

420241237

$1.85

11

Washer

420227900

Unavailable

12

Index Lever Ass'y

711248326

Unavailable

13

BUSHING - Call your local BRP dealership

420227710

$8.43

14

Index Lever Spring

711239560

$6.89

15

Shift Fork

711258400

Unavailable

16

Shift Fork

711258410

Unavailable

17

Shift Fork

711258390

Unavailable

18

Shift Fork

711258420

Unavailable

19

Shift Fork

711258430

Unavailable

20

Gear Shift Rod

711257080

Unavailable

21

Needle Pin

420229475

$12.29

22

Cylindrical Pin M10 x 100

711229480

Unavailable

23

Shift Drum Ass'y

711257105

Unavailable

24

Shift Drum

711257111

Unavailable

25

Flat Head Screw M6 x 16

711241521

$10.74

26

Index Gear

711257130

Unavailable

27

Socket Head Screw M6 X 25

205062544

$0.88

28

Shift Shaft Ass'y

711220585

Unavailable

29

Shaft

711220600

$19.77

30

Park Locking Lever

711258620

$32.28

31

Actuating Lever

711258475

Unavailable

32

Helical Spring

711239550

$11.51

33

Collar Sleeve

711247040

$13.05

34

THRUST WASHER - Call your local BRP dealership

420227980

$7.39

35

Tension Spring

711239591

$12.28

36

Indicator Shaft

711220545

$70.74

37

O-Ring

420430800

$3.85

38

Socket Screw M6 x 16

711241231

$3.08

39

Loctite 243, 10 ml

293800060

$20.77

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Lock Washer

711445331

Unavailable
