Description

Price

1

Front Propeller Shaft Kit

703500001

Unavailable

2

Wear Ring | 4X4

705400036

$25.35

3

PROTECTOR - Call your local BRP dealership

705400051

Unavailable

4

Ens. Croix*U-Joint Cross Kit

715900325

$69.20

5

Front Differential Ass'y | Includes 5 - 5.

705400003

Unavailable

6

Oil Seal | 4X4

705401481

$18.43

7

DIFFERENTIAL - Call your local BRP dealership

705400404

Unavailable

8

OIL SEAL - Call your local BRP dealership

705400019

Unavailable

9

Gasket | 4X4

705401618

$17.66

10

Drain Plug

705500093

Unavailable

11

Filler/Level Plug | 7400/7401.

705500092

Unavailable

Filler/Level Plug | 7413/7414. 7415/7416. 7417/7418.

705500143

Unavailable

12

Differential Cap

705400025

Unavailable

13

Differential Carrier

705400026

Unavailable

14

Ball Bearing | 4X4

705401606

$49.20

15

Ball Bearing

705500074

Unavailable

16

Needle Bearing

705500077

Unavailable

17

Vent Valve

705500124

Unavailable

18

SCREW - Call your local BRP dealership

705500088

$8.43

19

Seal

705500091

Unavailable

20

RING GEAR SCREW - Call your local BRP dealership

705500090

$8.43

21

Nut | 4X4

705401603

$36.89

22

Gear (36 Teeth)

705500087

Unavailable

23

O-Ring

705500073

Unavailable

24

GEAR (10 TEETH) - Call your local BRP dealership

705500076

$212.28

25

Retaining Ring

705500102

Unavailable

26-34

Knuckle Kit R.H | Includes 26 - 34.

703500040

Unavailable

Knuckle Kit L.H

703500041

Unavailable

26

Ball Joint

706200653

$41.51

27

ANGLE BEARING (7431 _ 7434) - Call your local BRP dealership

705400006

Unavailable

28

Oil Seal | 4X4

293250090

$23.05

29

CIRCLIP (7431 _ 7434) - Call your local BRP dealership

293370003

Unavailable

30

Brake Disk (Front) (7431 @ 7434)

705600003

Unavailable

31

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

32

Front Wheel Hub(7431 @ 7434)

705400011

Unavailable

33

Oil Seal (7431 @ 7434)

293250098

Unavailable

34

Circlip 32 mm

293370009

$1.49

35

Hex. Flange Screw M10 X 60

207606044

$2.78

HEX. FLANGED SCREW M10 X 60, SCOTCH GRIP - Call your local BRP dealership | 7413/7414. 7415/7416. 7417/7418.

207506044

Unavailable

36

Hex. Flange Elastic Nut M10

233201414

$1.26

Hex. Flange Nut M10

233101414

$4.10

37

Bracket, differential

705400052

Unavailable

38

Hex. Flange Screw M8 X 20

207682044

$0.92

39

Hex. Flange Elastic Nut M8

233281414

$1.14

40

O-Ring

293300052

Unavailable

41

Washer

211200049

Unavailable

42

Hex. Flange Castellated Nut M18

232291413

$2.82

43

Cotter Pin

250400036

$1.74

44

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

45

Tie Wrap 142 mm

293750002

$0.88

46

Spring Clamp

414554800

$0.83

47

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

48

Tire 205 X 80 R12

705402890

$133.82

49

Front Rim

705400010

Unavailable

50

Rim Valve With Cap

705400193

$6.69

51

HEX. NUT - Call your local BRP dealership

705400013

Unavailable

52

Washer

211200041

$2.63

53

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$1.74

54

Flat Washer M10 | 4X4

250200014

$1.17

55

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.60

56

Tie Wrap 142 mm

293750002

$0.88

57

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$13.62

58

GREASE SYNTHETIC 14OZ/400G - Call your local BRP dealership

779162

Unavailable

59

Flat Washer

250200003

Unavailable

60

Bracket

705400020

Unavailable

61

Hex. Flange Screw M10 x 200 | 7400/7401.

211000163

Unavailable

Flange Screw M10 X 200, Scotch Grip

250000024

Unavailable

62

RH CV Joint (7431 @ 7434) | Includes 62 - 67.

703500021

Unavailable

LH CV Joint(7431 @ 7434)

703500022

Unavailable

62

WHEEL BOOT KIT - Call your local BRP dealership

705400038

$39.97

63

DIFFERENTIAL BOOT KIT - Call your local BRP dealership

705400039

Unavailable

64

RH Plunging Joint

705400040

Unavailable

LH Plunging Joint

705400041

Unavailable

65

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

66

Wear Ring

705400016

Unavailable

67

CV JOINT (7431 _ 7434) - Call your local BRP dealership

705400037

Unavailable

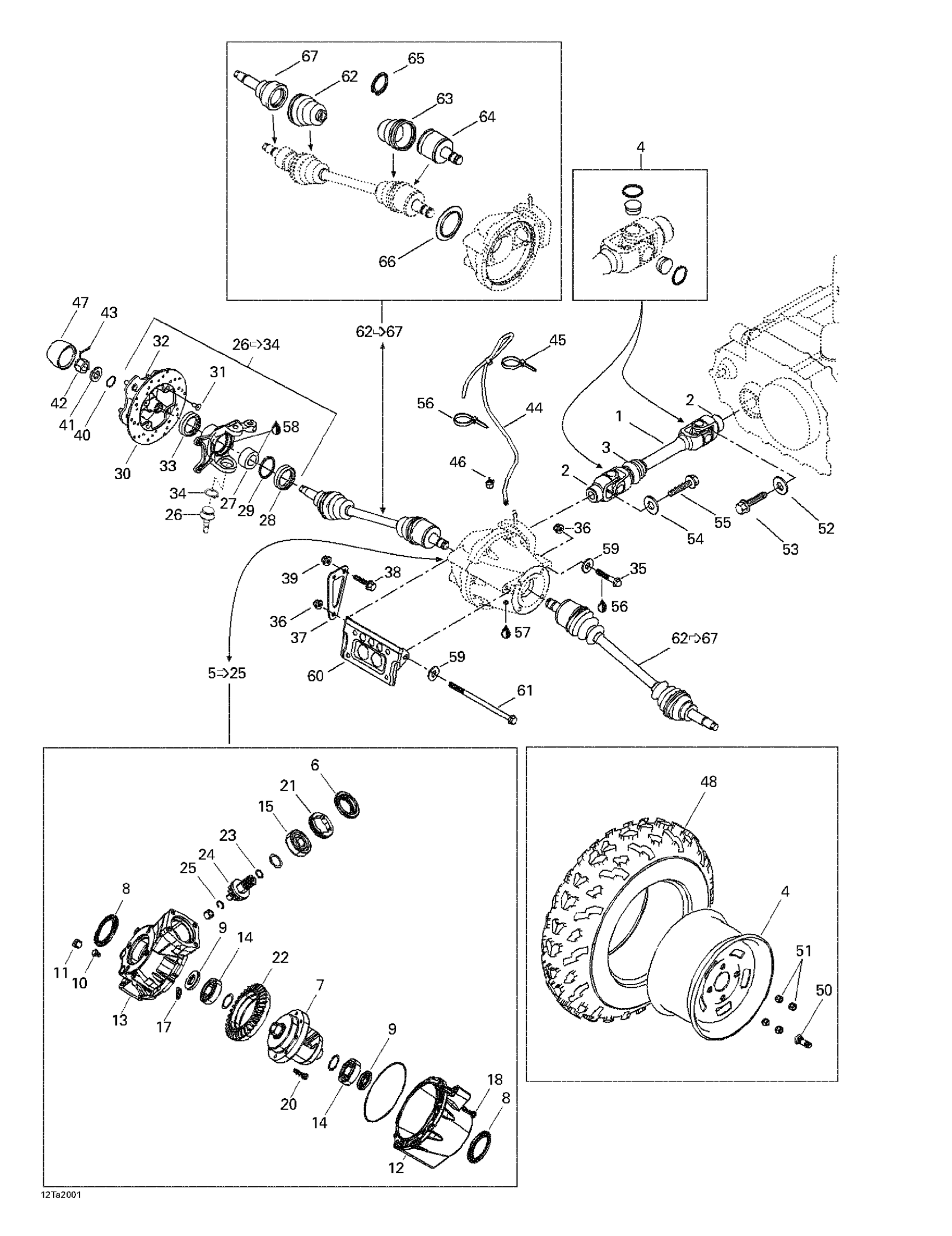

Can-Am Traxter, 7400/ 7401/7413/7414, 1999 Drive System, Front Diagram

Front Propeller Shaft Kit

PROTECTOR - Call your local BRP dealership

Front Differential Ass'y | Includes 5 - 5.

DIFFERENTIAL - Call your local BRP dealership

OIL SEAL - Call your local BRP dealership

Drain Plug

Filler/Level Plug | 7400/7401.

Filler/Level Plug | 7413/7414. 7415/7416. 7417/7418.

Differential Cap

Differential Carrier

Ball Bearing

Needle Bearing

Vent Valve

Seal

Gear (36 Teeth)

O-Ring

Retaining Ring

Knuckle Kit R.H | Includes 26 - 34.

Knuckle Kit L.H

ANGLE BEARING (7431 _ 7434) - Call your local BRP dealership

CIRCLIP (7431 _ 7434) - Call your local BRP dealership

Brake Disk (Front) (7431 @ 7434)

Front Wheel Hub(7431 @ 7434)

Oil Seal (7431 @ 7434)

HEX. FLANGED SCREW M10 X 60, SCOTCH GRIP - Call your local BRP dealership | 7413/7414. 7415/7416. 7417/7418.

Bracket, differential

O-Ring

Washer

WHEEL CAP - Call your local BRP dealership

Front Rim

HEX. NUT - Call your local BRP dealership

GREASE SYNTHETIC 14OZ/400G - Call your local BRP dealership

Flat Washer

Bracket

Hex. Flange Screw M10 x 200 | 7400/7401.

Flange Screw M10 X 200, Scotch Grip

RH CV Joint (7431 @ 7434) | Includes 62 - 67.

LH CV Joint(7431 @ 7434)

DIFFERENTIAL BOOT KIT - Call your local BRP dealership

RH Plunging Joint

LH Plunging Joint

CIRCLIP - Call your local BRP dealership | 4X4

Wear Ring

CV JOINT (7431 _ 7434) - Call your local BRP dealership
