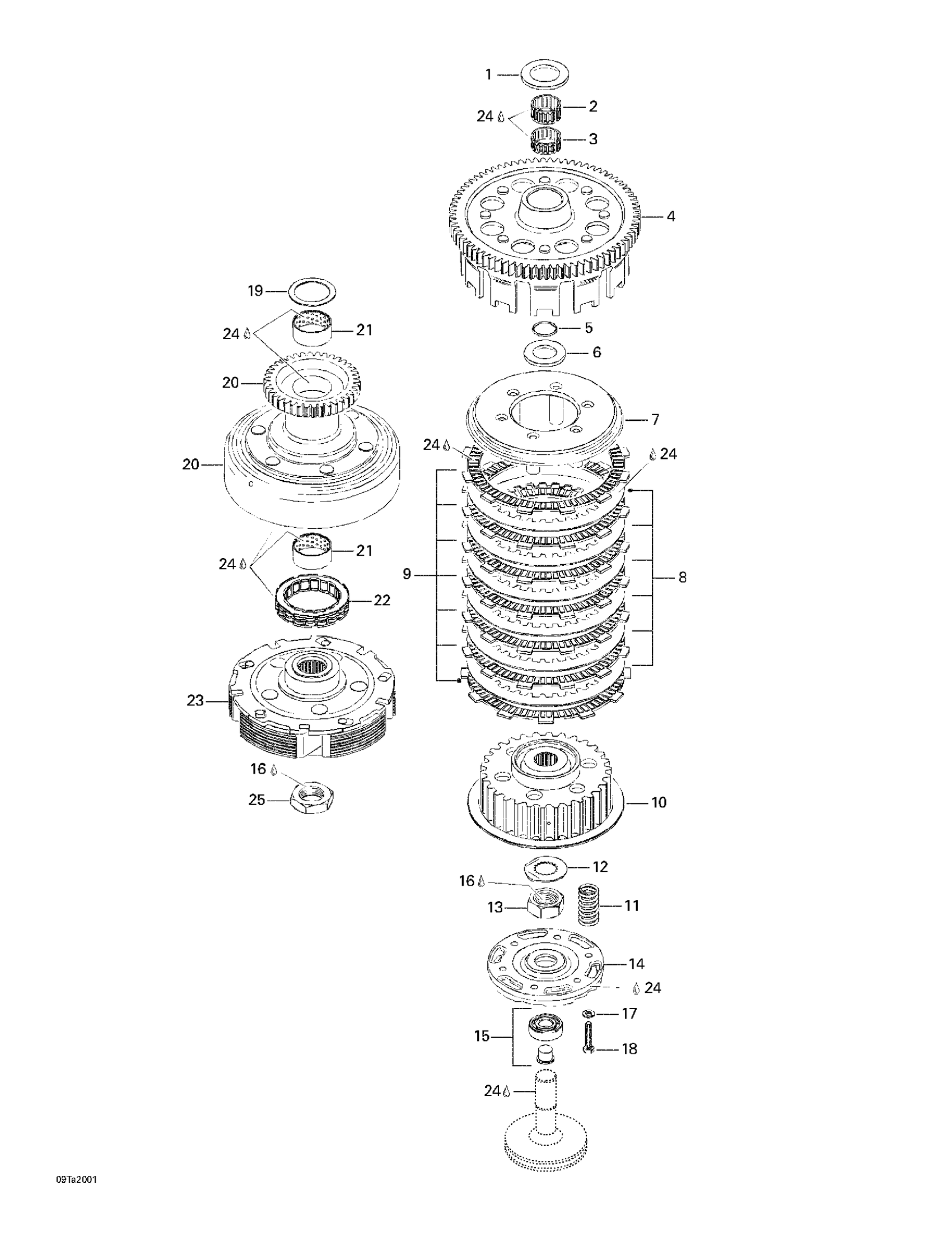

Can-Am Traxter, 7400/ 7401/7413/7414, 1999 Clutch Diagram
#
Description
Price
3
Needle Cage
711232655
Unavailable
4
Clutch Drum
711659200
Unavailable
5
O-RING - Call your local BRP dealership
293300018
Unavailable
7
Inner Plate
711259888
Unavailable
8
Plate 1.5 mm
711259915
Unavailable
9
Lamella 3 mm
711259907
Unavailable
12
Tab Washer
711245320
Unavailable
13
Nut M18
711242605
Unavailable
15
Hub Thrust ass'y with Ball Bearing
711259143
Unavailable
17
Lock Washer
420945750
Unavailable
20
Clutch Ass'y | Includes 20 - 23.
711296092
Unavailable
22
Sprag Clutch
711259077
Unavailable
24
Not Available As Spare Part - Friction Washer
Unavailable
