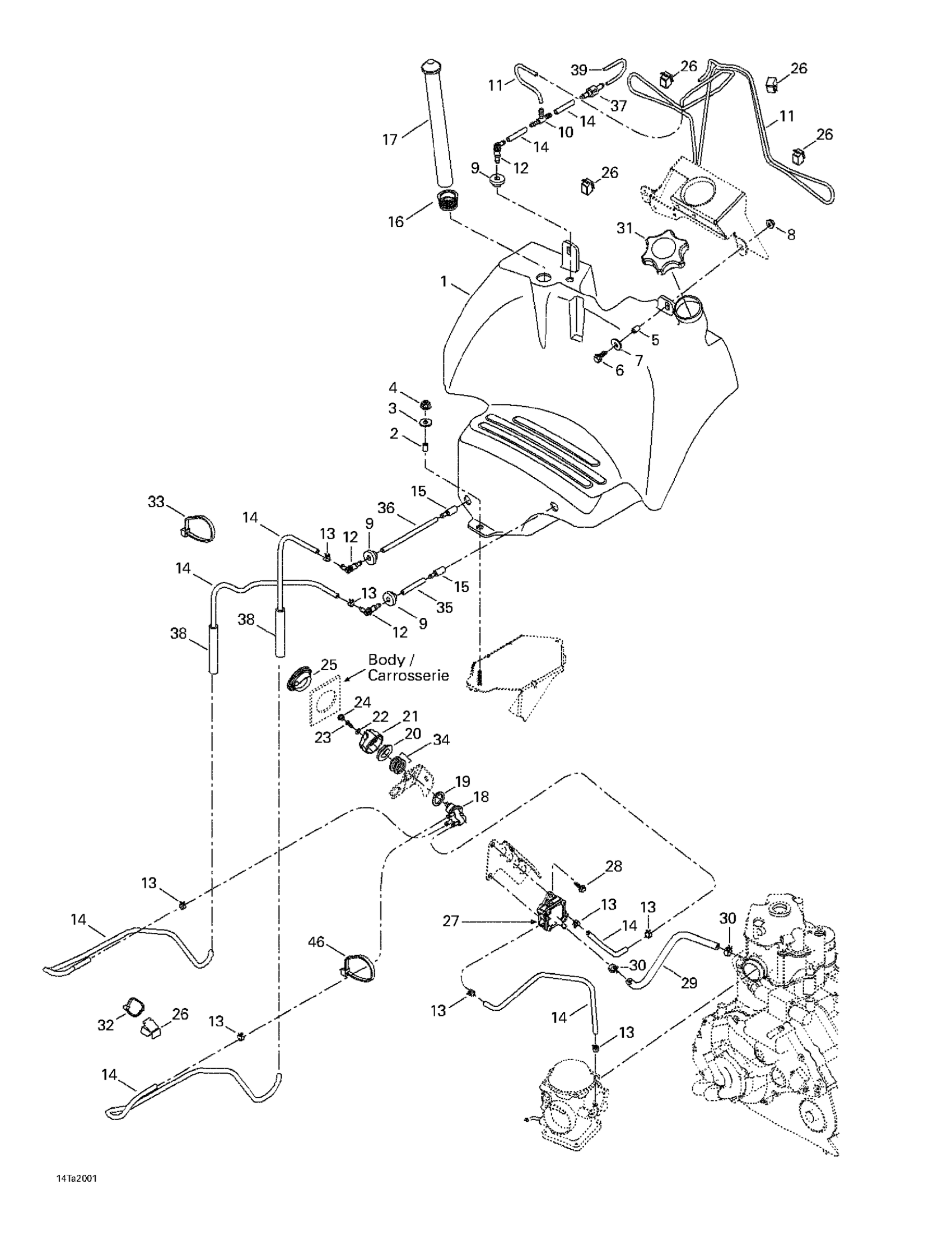

Can-Am Traxter, 7400/ 7401/7413/7414, 1999 Fuel Tank Diagram

#

Description
Price

1

Fuel Tank

709000003

Unavailable

2

Bushing

293900028

$12.91

3

Flat Washer 8 mm

234082410

$1.11

4

Hex. Flange Elastic Nut M8

233281414

$1.14

5

Bushing | DS 650 X

293900104

$5.26

6

Hex. Flange Screw M6 X 25

207662544

$0.53

7

Flat Washer

224061201

$1.11

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

9

Grommet

570045500

$6.32

10

T-fitting

414222500

$1.33

11

Line | 7400/7401. 7413/7414.

709000023

Unavailable

VENT HOSE - Call your local BRP dealership

709000031

$13.28

12

Elbow Male Connector

414580600

$3.50

13

Spring Clamp

414554800

$0.83

14

Polyurethane Hose 10000Mm Long

219704410

$46.12

15

Fuel Filter

414865700

$8.39

16

Grommet

293720058

$11.00

17

Fuel Gauge

709000001

Unavailable

18

Fuel Valve

275500098

$34.42

19

GASKET - Call your local BRP dealership

293250004

Unavailable

20

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

21

FUEL VALVE KNOB, BLACK - Call your local BRP dealership

275500263

Unavailable

22

Flat Washer 4 mm

234040600

$0.46

23

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

24

Black, Cap

275500241

$2.76

25

Fuel Valve Grommet

709000005

Unavailable

26

Clip

414227300

$1.45

27

FUEL PUMP - Call your local BRP dealership

707200000

Unavailable

28

Hex. Flange Screw M6 X 10

210261040

$1.25

29

HOSE - Call your local BRP dealership

709000024

Unavailable

30

Spring Clamp

414420700

$0.68

Spring Clamp

414415200

$0.83

31

Fuel Tank Cap

513033025

$19.47

32

Tie Wrap 142 mm

293750002

$0.88

33

Tie-Rap 180 mm

414115200

$0.09

34

WASHER - Call your local BRP dealership

293050003

$2.74

35

Polyurethane Hose 10000Mm Long

219704410

$46.12

36

Polyurethane Hose 10000Mm Long

219704410

$46.12

37

Check Valve

275500424

Unavailable

38

Tubing 10 MM 1000MM Long

219704407

$2.20

39

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

VENT HOSE - Call your local BRP dealership

709000029

$4.58

40

Tie Wrap 368 mm

293750008

$0.85
