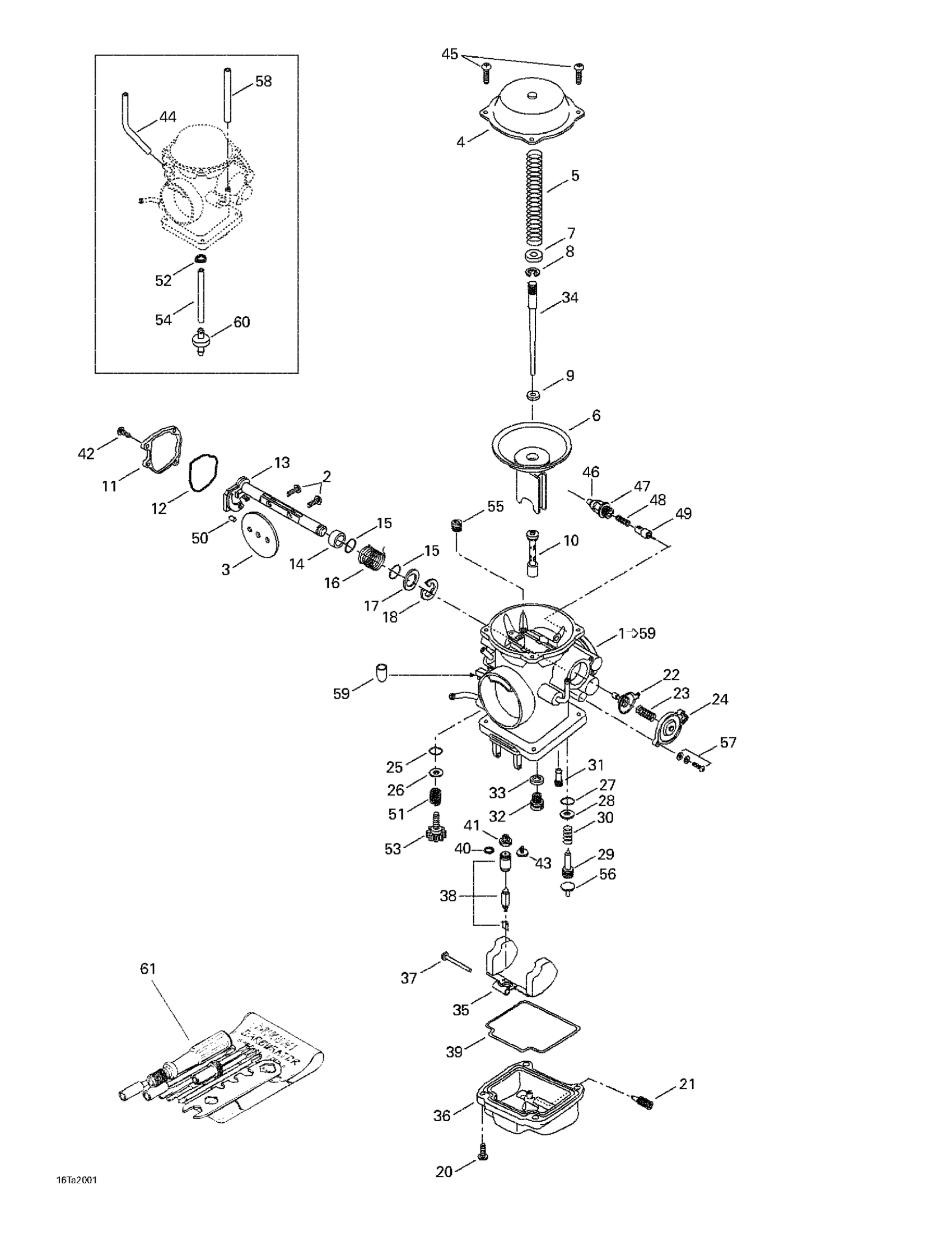

Can-Am Traxter, 7400/ 7401/7413/7414, 1999 Carburetor Diagram
#
1
Carburetor BST34 | 7400/7401.
707000044
Unavailable
Carburetor BST34-242 | 7413/7414. 7415/7416. 7417/7418.
707000061
Unavailable
2
Screw
707200034
Unavailable
3
Throttle Valve
707200044
Unavailable
4
Diaphragm Cover | 7400/7401.
707200039
Unavailable
Diaphragm Cover | 7413/7414. 7415/7416. 7417/7418.
707200052
Unavailable
5
Spring
707200038
Unavailable
6
Diaphragm Ass'y | 7400/7401.
707200037
Unavailable
Diaphragm Ass'y | 7413/7414. 7415/7416. 7417/7418.
707200053
Unavailable
7
Ring
707200036
Unavailable
9
Ring
707200035
Unavailable
10
Needle Jet
707200047
Unavailable
11
Cover
707200033
Unavailable
12
O-Ring
707200032
Unavailable
13
Throttle Shaft Ass'y
707200031
Unavailable
14
Ring
707200030
Unavailable
15
Sealing Ring
270500065
Unavailable
16
Spring
707200029
Unavailable
17
Packing
707200028
Unavailable
19
Cap
707200026
Unavailable
20
Screw
707200025
Unavailable
21
SCREW - Call your local BRP dealership
707200024
Unavailable
22
Diaphragm Ass'y
707200023
Unavailable
23
Spring | 7400/7401.
707200040
Unavailable
Spring | 7413/7414. 7415/7416. 7417/7418.
707200054
Unavailable
24
Cover
707200021
Unavailable
26
Washer
707200019
Unavailable
27
O-RING - Call your local BRP dealership
404139900
Unavailable
28
WASHER - Call your local BRP dealership
707200018
Unavailable
29
Adjuster
707200043
Unavailable
30
Spring
707200017
Unavailable
31
Pilot Jet 50 | 7400/7401.
707200046
Unavailable
Pilot Jet 45 | 7413/7414. 7415/7416. 7417/7418.
707200055
Unavailable
32
Main Jet 137.5 | 7400/7401.
707200051
Unavailable
Main Jet 140.0 | 7413/7414. 7415/7416. 7417/7418.
707200056
Unavailable
33
WASHER - Call your local BRP dealership
404102200
Unavailable
34
Needle | 7413/7414. 7415/7416. 7417/7418. .
707200048
Unavailable
35
Float Ass'y
707200016
Unavailable
36
Float Body
707200015
Unavailable
38
Needle Valve 1.0
707200042
Unavailable
39
O-Ring
707200014
Unavailable
40
O-RING - Call your local BRP dealership
270500127
Unavailable
41
Filter
707200013
Unavailable
42
Screw
707200012
Unavailable
43
Screw
404141000
Unavailable
44
Hose
707200011
Unavailable
47
Holder Guide
707200009
Unavailable
48
Spring
404141100
Unavailable
49
Plunger Ass'y | 7400/7401.
707200008
Unavailable
Plunger Ass'y | 7413/7414. 7415/7416. 7417/7418.
707200057
Unavailable
50
Not Available As Spare Part - Friction Washer
Unavailable
52
Clamp Oetiker
707200007
Unavailable
53
Adjuster Screw
707200006
Unavailable
54
Hose
707200041
Unavailable
55
Air Jet 80 | 7400/7401.
707200045
Unavailable
Air Jet 60 | 7413/7414. 7415/7416. 7417/7418.
707200059
Unavailable
56
CAP - Call your local BRP dealership
707200004
Unavailable
57
Screw
707200003
Unavailable
58
Hose
707200050
Unavailable
61
TOOL KIT - Call your local BRP dealership
404112000
Unavailable
