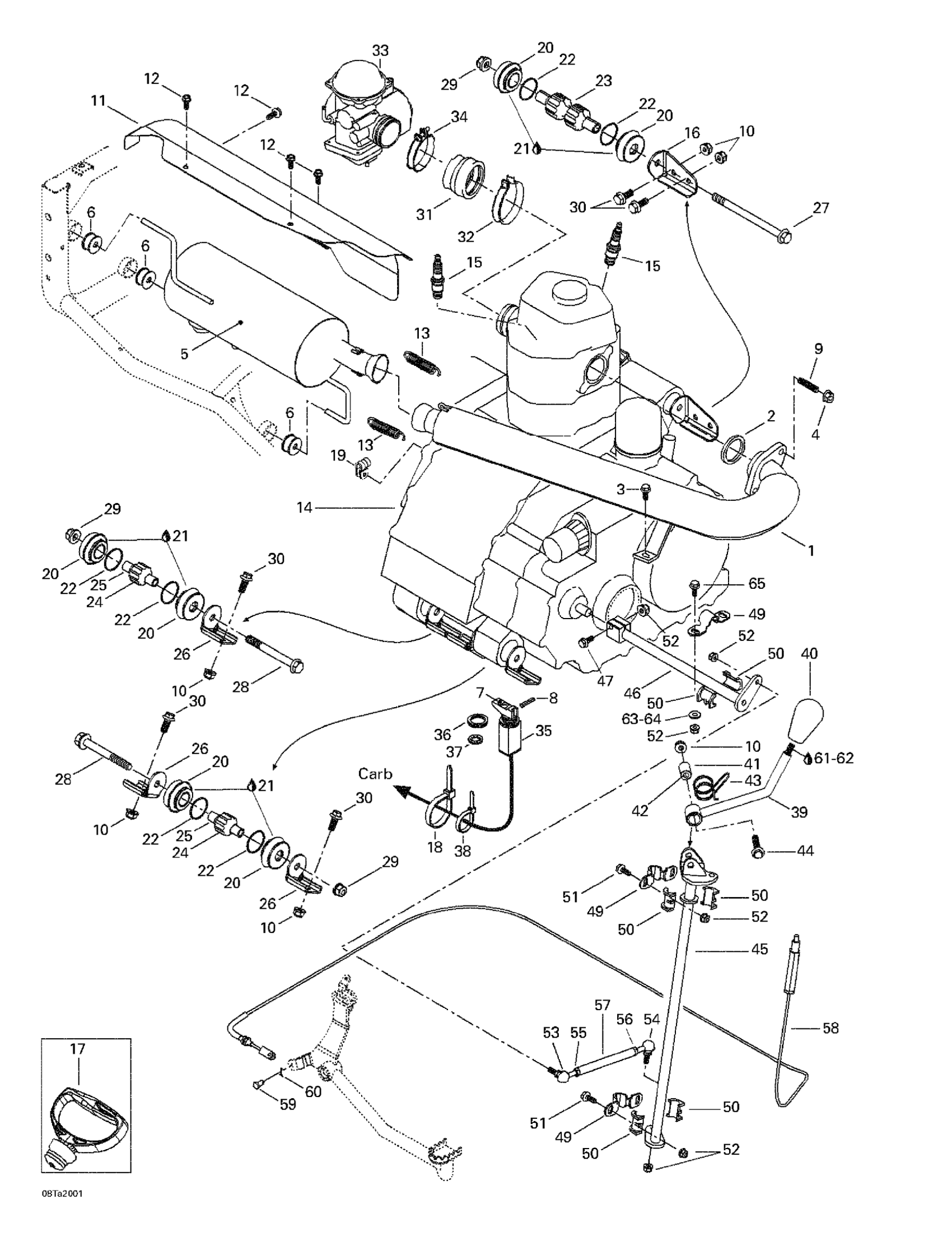

Can-Am Traxter, 7400/ 7401/7413/7414, 1999 Exhaust System Diagram

#

Description
Price

1

Tuned Pipe

707600062

Unavailable

2

GASKET - Call your local BRP dealership

707600003

$11.51

3

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$0.92

4

Hex. Flange Nut M8

233081416

$1.63

5

Muffler

707600063

Unavailable

6

Anti-Vibration Rubber

707600702

$8.34

7

Choke Cable Lever | 7413/7414. 7415/7416. 7417/7418.

707000043

Unavailable

Choke Cable Lever | 7400/7401.

707000032

Unavailable

8

Rolled Pin

707000033

Unavailable

9

Stud M8 x 23

711940366

Unavailable

10

Hex. Flange Elastic Nut M8

233281414

$1.14

11

Heat Shield | 7400/7401.

707600016

Unavailable

Heat Shield | 7413/7414.

707600051

Unavailable

Heat Shield | 7415/7416. 7417/7418.

707600075

Unavailable

12

Hex. Flange Screw M6 X 10

210261040

$1.25

13

Spring

415107100

$6.20

14

Rotax 4 Strokes Engine <<511>>

707000001

Unavailable

15

Spark Plug, NGK/DR8EA

707000008

$4.03

16

Engine Bracket

707000066

Unavailable

17

Starting Grip

711852515

Unavailable

18

Tie Wrap 368 mm

293750008

$0.85

19

Open Clamp

705600040

$12.91

20

Anti-Vibration Mount

707000002

Unavailable

21

GREASE SYNTHETIC 14OZ/400G - Call your local BRP dealership

779162

Unavailable

22

O-Ring

293300050

Unavailable

23

ENGINE SUPPORT BUSHING - Call your local BRP dealership

707000019

Unavailable

24

Support Bushing | Includes 10 to 11

707000030

Unavailable

25

RH LOWER BUSHING - Call your local BRP dealership

707000004

$7.89

26

Engine Bracket

705200076

Unavailable

27

Hex. Flange Screw M10 X 140

230604044

$5.19

28

HEX. FLANGED SCREW M10 X 95 - Call your local BRP dealership

207609544

$2.42

29

Hex. Flange Elastic Nut M10

233201414

$1.26

30

Hex. Flange Screw M8 X 20

207682044

$0.92

31

Carburetor Adaptor

707000009

Unavailable

32

Clamp

512059062

Unavailable

33

Carburetor BST34 | 7400/7401.

707000044

Unavailable

Carburetor BST34-242 | 7413/7414. 7415/7416. 7417/7418.

707000061

Unavailable

34

Gear Clamp Gemi

293650094

Unavailable

35

Choke Cable

707000034

Unavailable

36

NUT-PLASTIC - Call your local BRP dealership

512059364

$6.66

37

Lock Washer, Interior Teeth

394103300

Unavailable

38

Tie-Rap 180 mm

414115200

$0.09

39

LEVER ASS'Y - Call your local BRP dealership

707000010

$25.35

40

LEVER BUTTON - Call your local BRP dealership

705500022

Unavailable

41

Nylon Bushing

705500023

Unavailable

42

Aluminum Bushing

705500094

Unavailable

43

LEVER SPRING - Call your local BRP dealership

705500024

$11.51

44

Hex. Flange Screw M8 X 50

207685044

$1.39

45

Upper Tube

705500134

Unavailable

46

Lower Tube

705500135

Unavailable

47

Hex. Flange Screw M6 X 35

207663544

$0.74

49

RETAINER CLAMP - Call your local BRP dealership

705500041

$5.35

50

Half Ring

705500033

$4.92

51

Hex. Flange Screw M6 X 16

207661644

$0.61

52

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

53

RH Ball Joint

705500035

Unavailable

54

LH Ball Joint

705500036

Unavailable

55

Hex. RH Jam | 7413/7414. 7415/7416. 7417/7418. .

211100065

Unavailable

56

Hex. LH Jam | 7413/7414. 7415/7416. 7417/7418. .

211100066

Unavailable

57

Tie-Rod (CDN)

705500037

Unavailable

Tie-Rod Ass'y(US) | 7415/7416. 7417/7418.

707500068

Unavailable

58

Interlock Cable

705500038

Unavailable

59

Clevis Pin

250400000

Unavailable

60

Cotter Pin

250400001

Unavailable

61

Was 293800041 Loctite Primer 7649

219704458

$41.99

62

Loctite 243, 10 ml

293800060

$20.77

63

Shim 1.0 mm

707000080

Unavailable

64

Shim 2.0 mm

707000081

Unavailable

65

Hex. Flange Screw M6 X 20

207662044

$1.66

65

Hex. Flange Screw M6 X 16

207661644

$0.61
