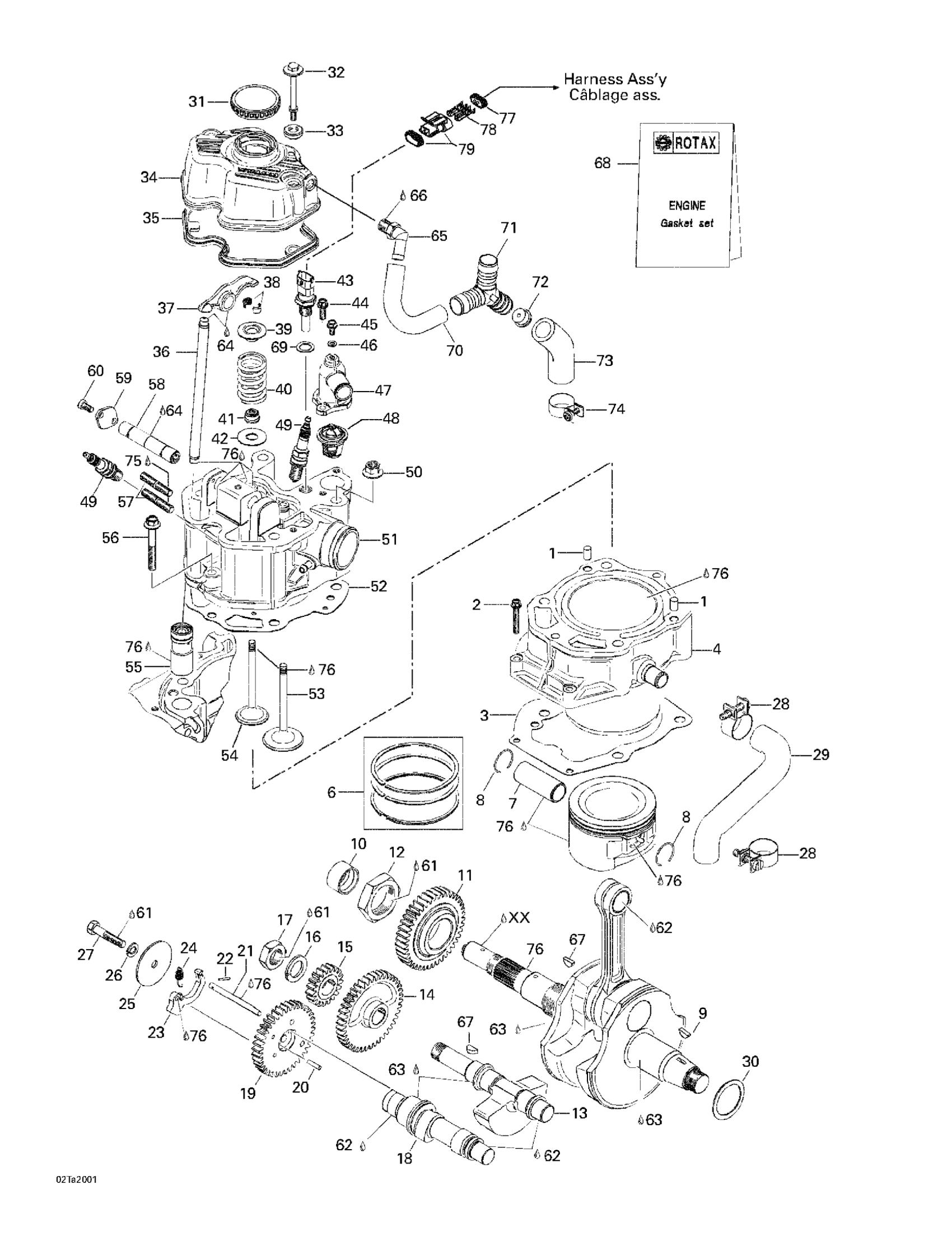

Can-Am Traxter, 7400/ 7401/7413/7414, 1999 Crankshaft, Pistons And Cylinder Diagram

#

Description
Price

1

Center Pin 8 X 12

420632010

$3.07

2

Hex. Flange Screw M6 x 35

711941126

$4.58

3

CYLINDER GASKET - Call your local BRP dealership

711650430

Unavailable

4

Cylinder/Piston

711613175

Unavailable

5

Piston 89 mm & Ring Set | Includes 5 - .

711296110

Unavailable

6

Piston Ring Set

711296114

Unavailable

7

Piston Pin

420216225

$34.58

8

Circlip 22 mm

711245431

$4.58

9

Crankshaft Ass'y | Includes 9 - 10.

711295892

$1,322.99

10

Spacer

711247070

$45.35

11

Mating Gear (42 Tooth)

711635012

Unavailable

12

Nut M34

711842605

$14.58

13

Balance Shaft

711220470

Unavailable

14

Balancing Shaft Gear (42 Tooth)

711634991

Unavailable

15

Control Gear (19 Tooth)

711634961

Unavailable

16

Lock Washer 18 mm

290945757

Unavailable

17

HEX. NUT M18 - Call your local BRP dealership

420942220

$9.52

18

Cam Shaft

711220460

Unavailable

19

Cam Shaft Gear (38 Teeth)

711634956

$269.97

20

Needle Pin

420232420

$3.86

21

Deko Shaft Ass'y

711220615

Unavailable

22

Groove pin

420929555

Unavailable

23

Centrifugal Weight

711231050

Unavailable

24

Tension Spring

711239570

$12.28

25

Washer

711244260

$9.97

26

Washer-Lock Din.128

420945832

$1.09

27

Hex. Screw M8 X 40

207084044

$0.92

28

Clamp

711951760

Unavailable

29

Water Cooling Hose

711222285

$35.35

30

Adjusting Washer 35 x 45 x 1.3

711427505

$4.58

Adjusting Washer 35 x 45 x 1.5

711427506

Unavailable

Adjusting Washer 35 x 45 x 1.8

711427507

$6.89

31

Bayonet Filler Cap

711947644

Unavailable

32

DISTANCE SCREW M6 X 47.9 - Call your local BRP dealership

420240906

Unavailable

33

Rubber Bushing

711260050

Unavailable

34

Valve Cover

711211835

$79.20

35

Valve Cover Gasket

711650450

Unavailable

36

Push Rod

711854159

Unavailable

37

Rocker Arm

711254085

Unavailable

38

Valve Cotter

711253090

$7.66

39

Valve Spring Retainer

711254100

$17.40

40

Valve Spring

711239500

$20.57

41

Valve Seal

420230810

Unavailable

42

THRUST WASHER - Call your local BRP dealership

420227980

$7.39

43

Temperature Sensor

278002895

$31.82

44

Hex. Flange Screw M6 x 16

711241751

Unavailable

45

HEX. SCREW M6 X 12 - Call your local BRP dealership

207161244

$0.66

46

Sealing Washer

404146600

$0.72

47

Thermostat Cover

711222560

Unavailable

48

Thermostat | Includes 53 to 54

420222495

$36.89

49

Spark Plug, NGK/DR8EA

707000008

$4.03

50

Hex. Flange Nut M10

233101414

$4.10

51

Cylinder Head

711613168

Unavailable

52

Gasket, Cylinder Head

711650445

Unavailable

53

Inlet Valve 42 mm

711254050

Unavailable

54

Inlet Valve 34 mm

711254060

Unavailable

55

Valve Hydraulic Tappet

420854099

$106.12

56

Hex. Flange Screw M8 X 53.5

420240326

Unavailable

57

Stud M8 x 23

711940366

Unavailable

58

Rocker Arm Shaft

711254110

$31.51

59

Holding Strip

711244250

$6.89

60

Socket Head Screw M6 x 10

711241681

$3.82

61

Loctite 243, 10 ml

293800060

$20.77

62

Molykote G-N, 50 g

420297433

$22.72

63

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

64

Grease, Super Lube

293550030

$24.67

65

Angular Tube

420922242

$12.29

66

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97

67

Woodruff Key 4 X 5

420246570

$3.29

68

Gasket Set Engine

711296370

Unavailable

69

Aluminum Sealing Ring

420250016

$4.41

70

Formed Hose

711222610

Unavailable

71

Y Fitting

711874380

Unavailable

72

Fitting

711222590

$10.74

73

Formed Hose

711222600

Unavailable

74

Gear Clamp

711251875

Unavailable

75

Sealant Loctite 648

219703000

$35.72

76

Not Available As Spare Part - Friction Washer

Unavailable

77

Wire Seal

278000999

$2.55

78

Female Terminal

278000998

$3.48

79

Male Housing, 2 Circuits

278001005

$15.57
