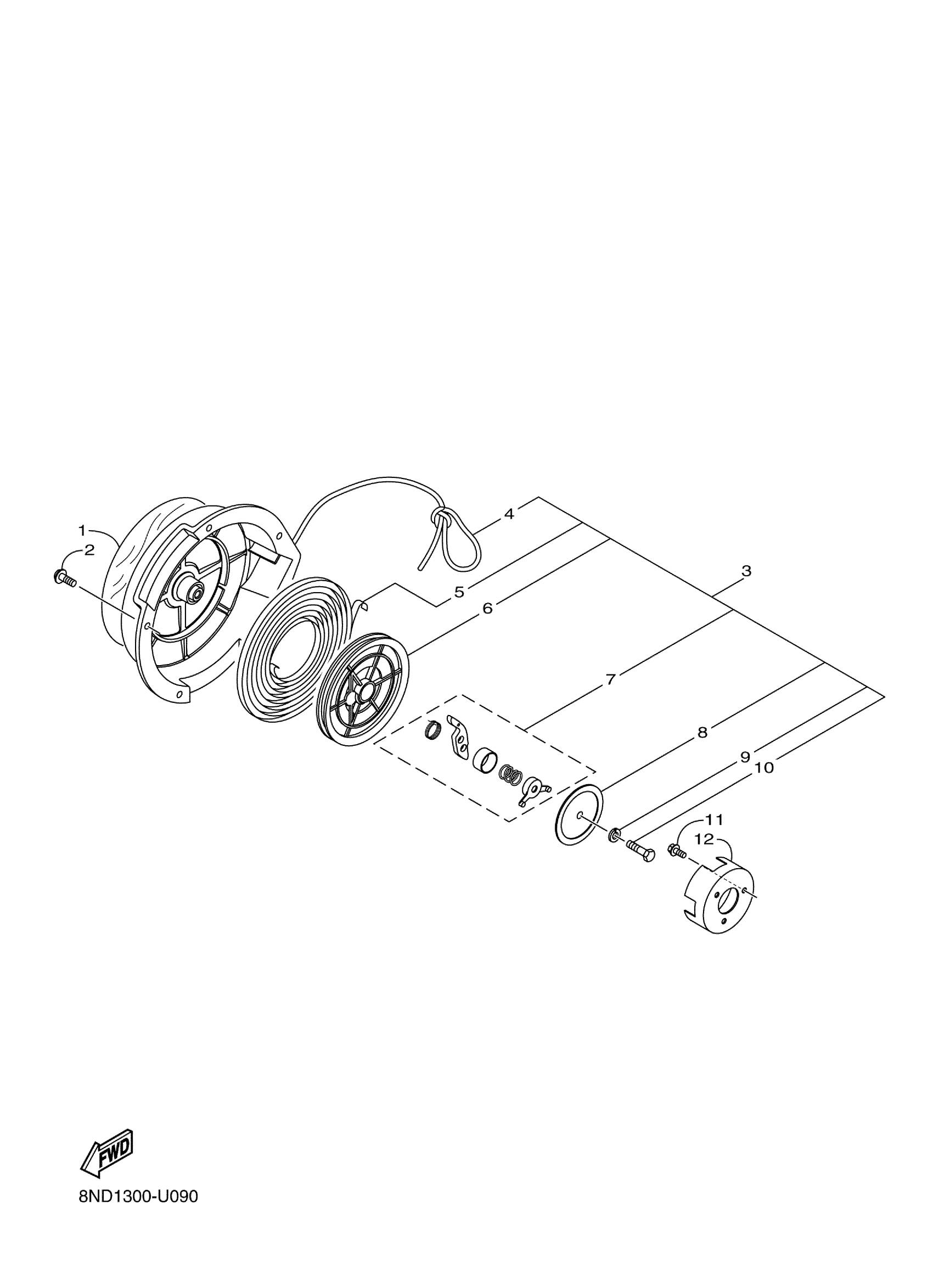

Yamaha TR6NTSLB (TRANSPORTER 600) 8ND2 2020 STARTER Diagram

#

Description
Price

1

PROTECTOR

8ND-E5491-00-00

Unavailable

2

BOLT, FLANGE

8ND-RA179-00-00

$1.67

3

STARTER ASSY

8ND-E5710-00-00

$182.85

4

WIRE, STARTER

8ND-E5751-00-00

Unavailable

5

SPRING, STARTER

8ND-E5713-00-00

Unavailable

6

DRUM, SHEAVE

8ND-E5714-00-00

Unavailable

7

PAWL, DRIVE

8ND-E5741-00-00

Unavailable

8

PLATE, FRICTION 1

8ND-E6320-00-00

Unavailable

9

WASHER, SPRING

8ND-RA402-00-00

$0.68

10

BOLT, FLG. M8X1.25

8JP-RA186-00-00

$0.48

11

BOLT, FLANGE

8ND-RA178-00-00

Unavailable

12

PULLEY, STARTER

8ND-E5723-00-00

$32.73
